Premade/Preformed Zipper Pouch/Bag/Doypack Rotary Packing and Filling Machine
Application
Packaged products are widely used
At the same time the machine has been used in 40+ countries and regions, applied to multiple fields including solid,and powder for products like nuts, snacks, seasoning, spices, foods, detergent etc in industries such as agriculture, food, daily chemical and etc.
|
Granules:
|
peanut, popcorn, coffee bean, chips, seeds, nuts, sugar, pistachios, and etc. | |||
| Powder: |
such as Spice, flour, milk powder, coffee powder, cocoa powder, flour, vitamin powder and etc.(rotary packing machine
with screw feeder)
|
|||
System Unit
|
SPECIFICATIONS FOR ZH-BL10 VERTICAL PACKING SYSTEM
|
|||
|
Model
|
ZH-BG10
|
||
|
Packing speed
|
30-70 Bags/Min
|
||
|
System Output
|
≥8.4 Ton/Day
|
||
|
Packaging Accuracy
|
±0.1-1.5g
|
||
|

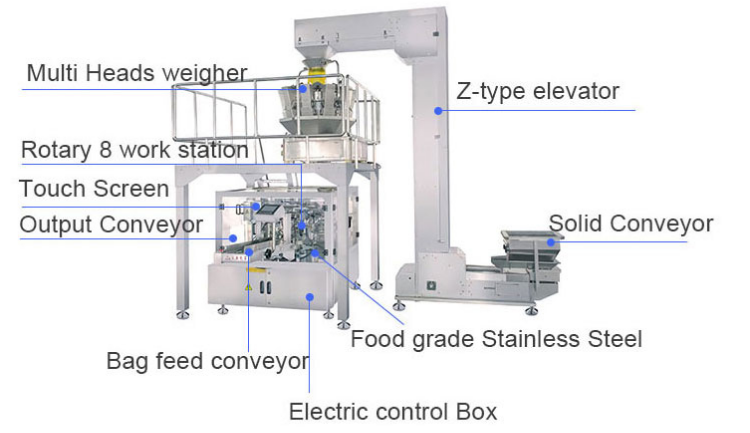

System Construction
|
|||
|
Z type hoister: Raise material to multihead weigher which controls the start and stop of the hoister.
|
|||
|
10 heads multi weigher: Used for quantitative weighing.
|
|||
|
Vertical packaging machine: Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
|
|||
|
Platform: Support the 10 heads multi weigher.
|
|||
|
Product conveyor: Conveyor the product to next step.
|
|||
Features
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor suits for bags with zipper
4. It includes ribbon type date code
5.The equipment meets the hygienic standard of food processing machinery, and the contact part between the equipment and materials is processed with 304 stainless steel or other materials that meet the requirements of food hygiene.

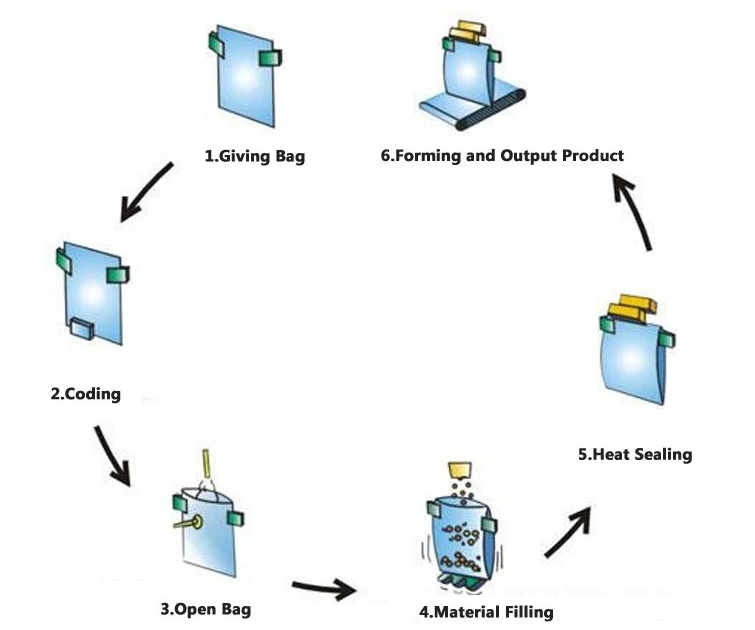

Working Process
Machine working process
1.Bag pick-up 2.Optional Zipper open and Date print 3.Bag mouth and bottom open 4. Product fill
5.Option: Solid :Nitrogen charge,Powder:Bag mouth clean 6.First seal 7.Second seal 8.Output
Solutions List
* Powder Packing Solution —— Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.
* Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta, Dried, Fruit, Vegetable, Etc.
* Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
