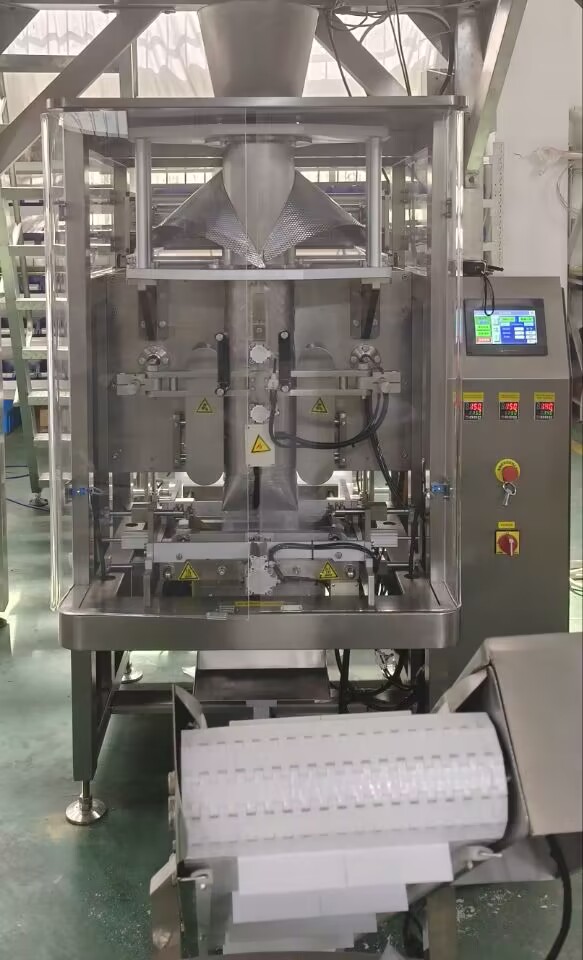

Multi-function Flour Powder Packing Machine Pillow Bag Roll Film packing machine
Application
It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder. The speed 25bags-45bags/min,adopt pre-printed roll film, pillow bag, gusseted bag, connecting bag and punching bag.
Technical Feature
1.Powder conveying,meeuring,filling,bags making,date printing,finished bags outputting are completed automatically
2.High measuring accuarcy and efficiency.
3.Adopting PLC and touch screen, easy to operate
4.Film pulling with servo makes film transporting smoothly
Specification
| Model | Zh-BA |
| System output | ≥4.8 Ton/day |
| Packing speed | 10-40 bags/min |
| Packing Accuracy | ±0.5%-1% |
| Bag size(mm) | (W) 60-150 (L) 50-200 for 320VFFS(W) 60-200 (L) 60-300 for 420VFFS
(W) 90-250 (L) 80-350 for 520VFFS (W) 100-300 (L) 100-400 for 620VFFS (W) 120-350 (L) 100-450 for 720VFFS (W) 350-500 (L) 100-800 for 1050VFFS |
| Bag type | Pillow bag/gusset bag/Four edge sealing bag,5 edge sealing bag |
| Weighing range | 10-5000g |
