Industrial Food Grade Conveyor Metal Detector with Check Weigher for Food

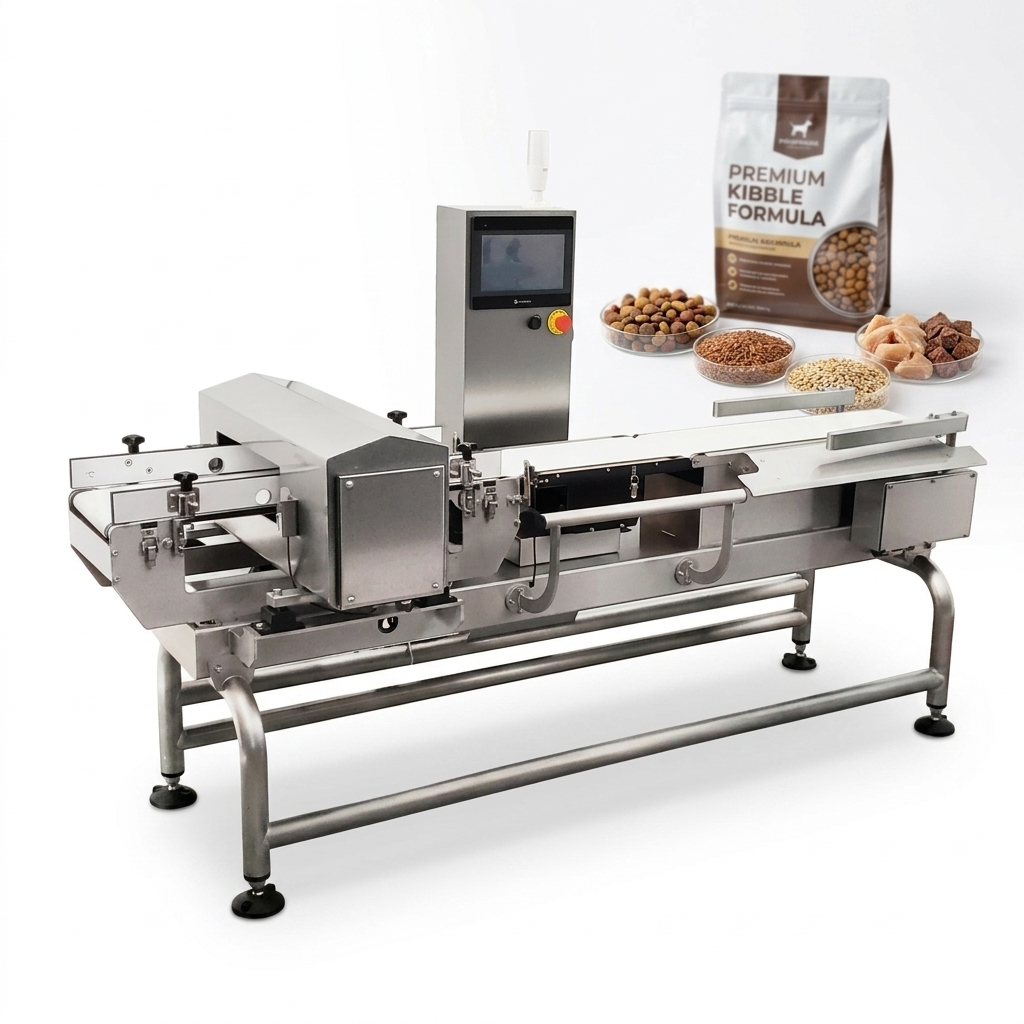

Product Image
2. Technical Description
Check weighers are specifically designed for high demand of weight accuracy, stability and intelligent operation. On bases of core invention patents and patented self-adaptable algorithm, plus with combination of the world’s famous component units, integrated circuits and high precision CNC structural frame, SW series check weighers contribute the leading weight inspection performance in the industry.
【Reputed Components】
1. German HBM fast load cell
2. Danish Danfoss frequency converter
3. Japanese Omron optic sensors
4. US Gates synchronous belt
5. 7inch industrial touch screen display
6 .High precision structural components by CNC
7. Stainless steel 304 frame
3. Product Specifications
| Index | Parts | Description |
| 1 | Material of Frame | SUS304 |
| 2 | Weighing range (g) | 3~4000 |
| 3 | Minimum scale (g) | 0.1 |
| 4 | Accuracy (g) | ±0.5 |
| 5 | Size of detector frame (W*H) mm | 360*150 |
| 6 | Metal sensitivity | Fe≥1.0, NF≥1.5,SUS304≥2.0 |
| 7 | Max throughput (pcs/min) | 80 |
| 8 | Size of weighing belt (W*L) mm | 360*550/650 |
| 9 | Height of conveyor belt (mm) | 700~820*780~900 |
| 10 | Length of machine (mm) | 1200-550*650-1200 |
| 11 | Parameter setting | Auto setting by intelligent product study |
| 12 | Direction of throughput | From left to right when facing control panel |
| 13 | Alarm mode | Aural and visual |
| 14 | Reject device | Air jet, air pusher, down belt, flipper |
| 15 | Power | AC 220V 1Phase, 200W, 50/60 Hz adaptive |
| 16 | Working environment | Free of obvious vibration, high power frequency converter and large moving metal piece |
