Food Grade Tube Screw Conveyor For Powder
Product Description
Screw conveyor is widely used in various industries, such as chemical, metallurgy, mining, construction, food and other industries, suitable for horizontal, inclined or vertical conveying powder, granular, liquid and small block materials.The working principle of the screw conveyor is that the rotating spiral blade will transfer the material. Material weight and screw conveyor shell of material friction resistance so that the material does not rotate with screw conveyor blade force.
Technical parameter
| Model | ZH-CS2 | |||||
| Charging Capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h | 12m3/h |
| Diameter of pipe | Ø102 | Ø114 | Ø141 | Ø159 | Ø168 | Ø219 |
| Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
| Total Power | 0.78KW | 1.53KW | 2.23KW | 3.03KW | 4.03KW | 2.23KW |
| Total Weight | 100kg | 130kg | 170kg | 200kg | 220kg | 270kg |
| Hopper Dimensions | 720x620x800mm | 1023 ×820×900mm | ||||
| Charging Height | Standard 1.85M, 1-5M could be designed and manufactured. | |||||
| Charging angle | Standard 45degree,30-60 degree are also available. | |||||
| Power Supply | 3P AC208-415V 50/60Hz | |||||
Machine Feature

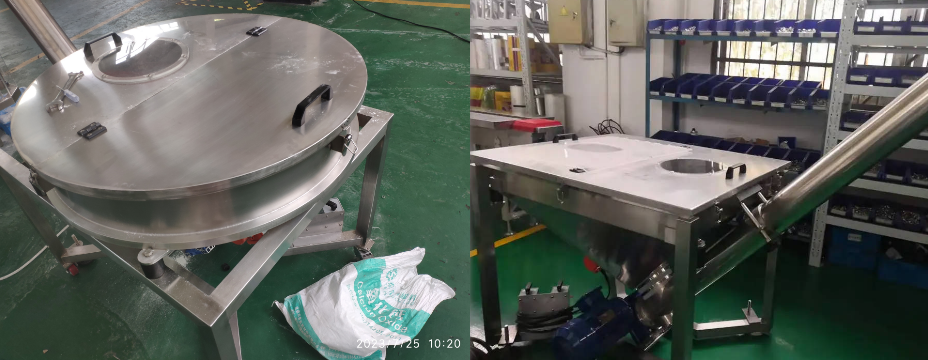

♦ Hopper can separate from the tube, easy assembly.
♦ Special anti-dust design to protect bearing from dust.
♦ Auger can be pull out for washing, Very easy to clean.
FAQ
Q:What factors I need to get a quotation?
A: Material name, length & angle for conveying series & ideal capacity , granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
More questions contact me pls!
