Small Business Automatic Flat Surface Bottle Labeling Machine Square Bottle Label

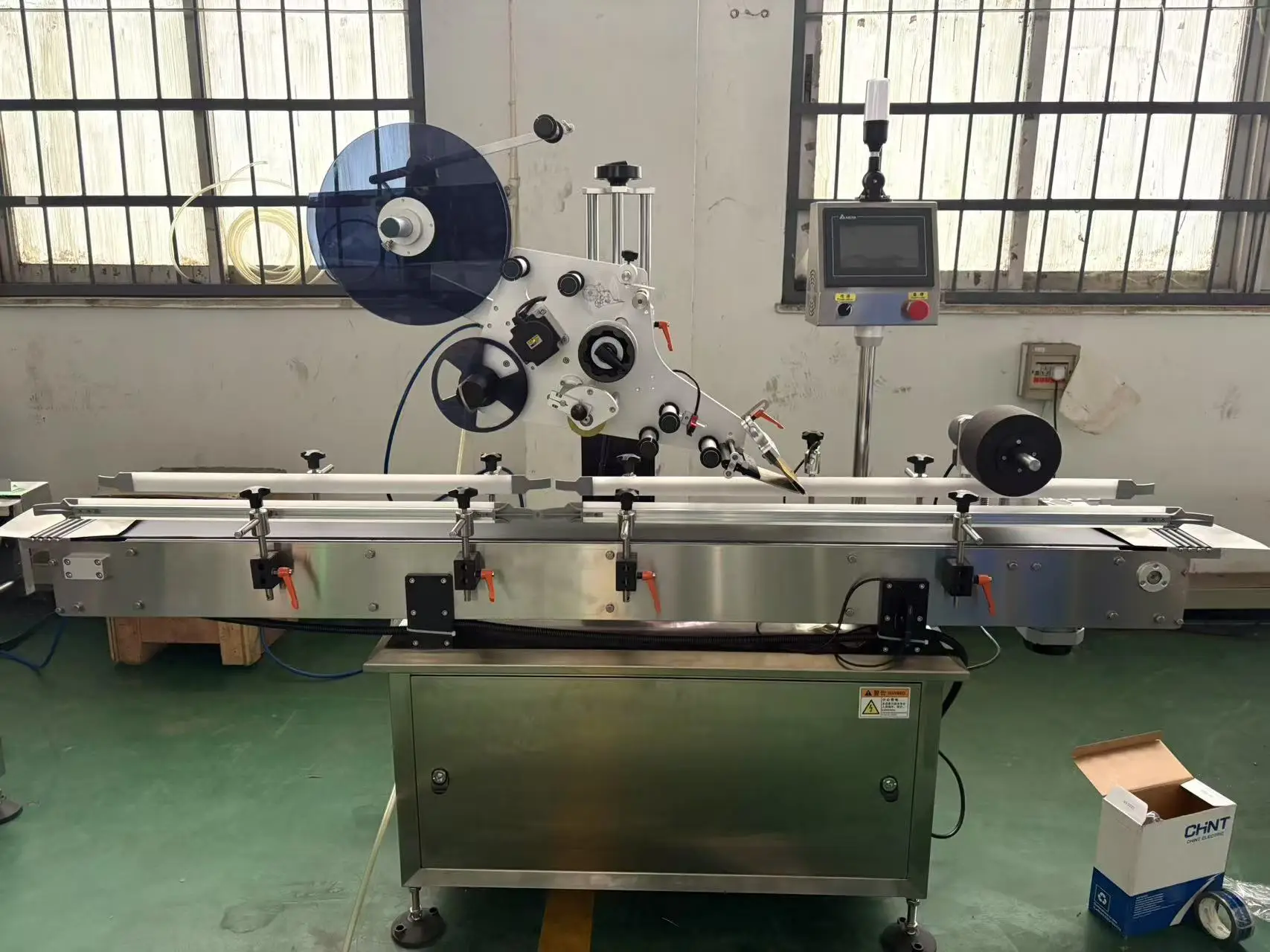

Flat labeling machine
Flat squares labeling machine
This automatic labeling machine is suitable for sticking different size self-adhesive label/adhesive film on flat surface/flat container/bottle /square bottle(PET,plastic,glass,metal bottle etc).
It’s labeling effect is good,no creases,no bubble,can work with other machines to make production line,with PLC touch screen operation,it’s fast labeling speed can save a lot
of labor and time.
of labor and time.
|
Technical Specification:
|
||||
|
Model
|
ZH-YP100T1
|
|||
|
Labeling Speed
|
0-50pcs/min
|
|||
|
Labeling Accuracy
|
±1mm
|
|||
|
Scope of Products
|
φ30mm～φ100mm,height:20mm-200mm
|
|||
|
The range
|
The size of the label paper：W:15～120mm,L:15～200mm
|
|||
|
Power Parameter
|
220V 50HZ 1KW
|
|||
|
Dimension(mm)
|
1200(L)*800(W)*680(H)
|
|||
|
Label Roll
|
inside diameter:φ76mm outer diameter≤φ300mm
|
|||
Labeling Sample

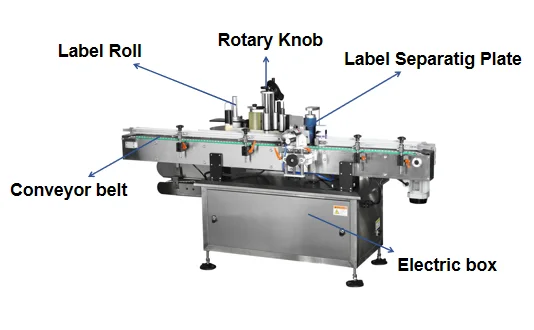

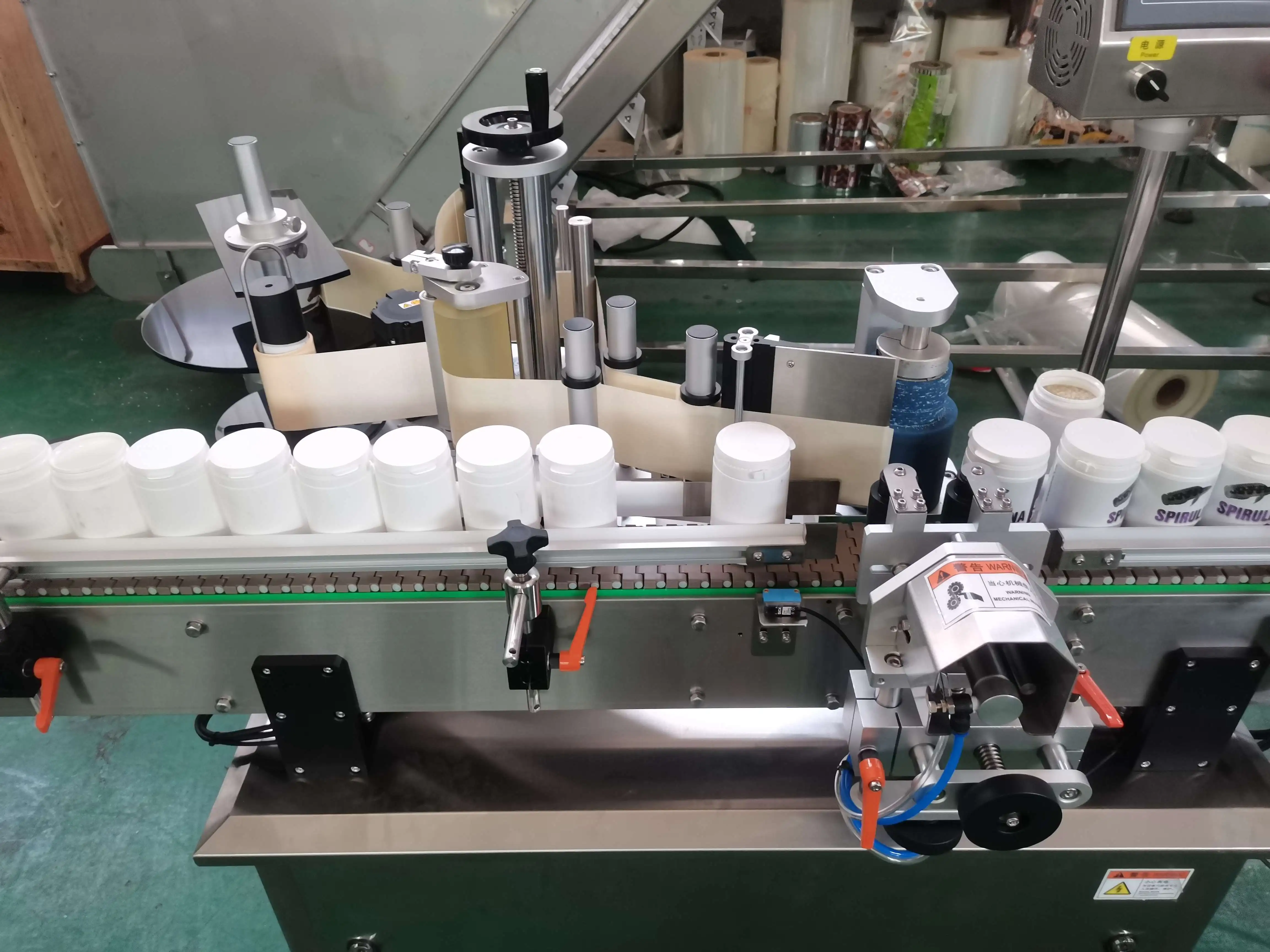

Details Show
1.Driven by high quality stepping motor,intelligent PLC touch screen,easy to operate.
2.Use high precision label detection electric eye,it can do labeling more accurate and more faster.
3.Main electrical elements adopts foreign well-known brand.
4.It has fault stop function and production counting function.
5.Suitable for sticking self-adhesive label on different size flat surface/flat container/bottle lid/square bottle etc(date coder is optional,it will cost extra fee).
6.Wide application,it can be used alone or combined with production line in factory.
2.Use high precision label detection electric eye,it can do labeling more accurate and more faster.
3.Main electrical elements adopts foreign well-known brand.
4.It has fault stop function and production counting function.
5.Suitable for sticking self-adhesive label on different size flat surface/flat container/bottle lid/square bottle etc(date coder is optional,it will cost extra fee).
6.Wide application,it can be used alone or combined with production line in factory.

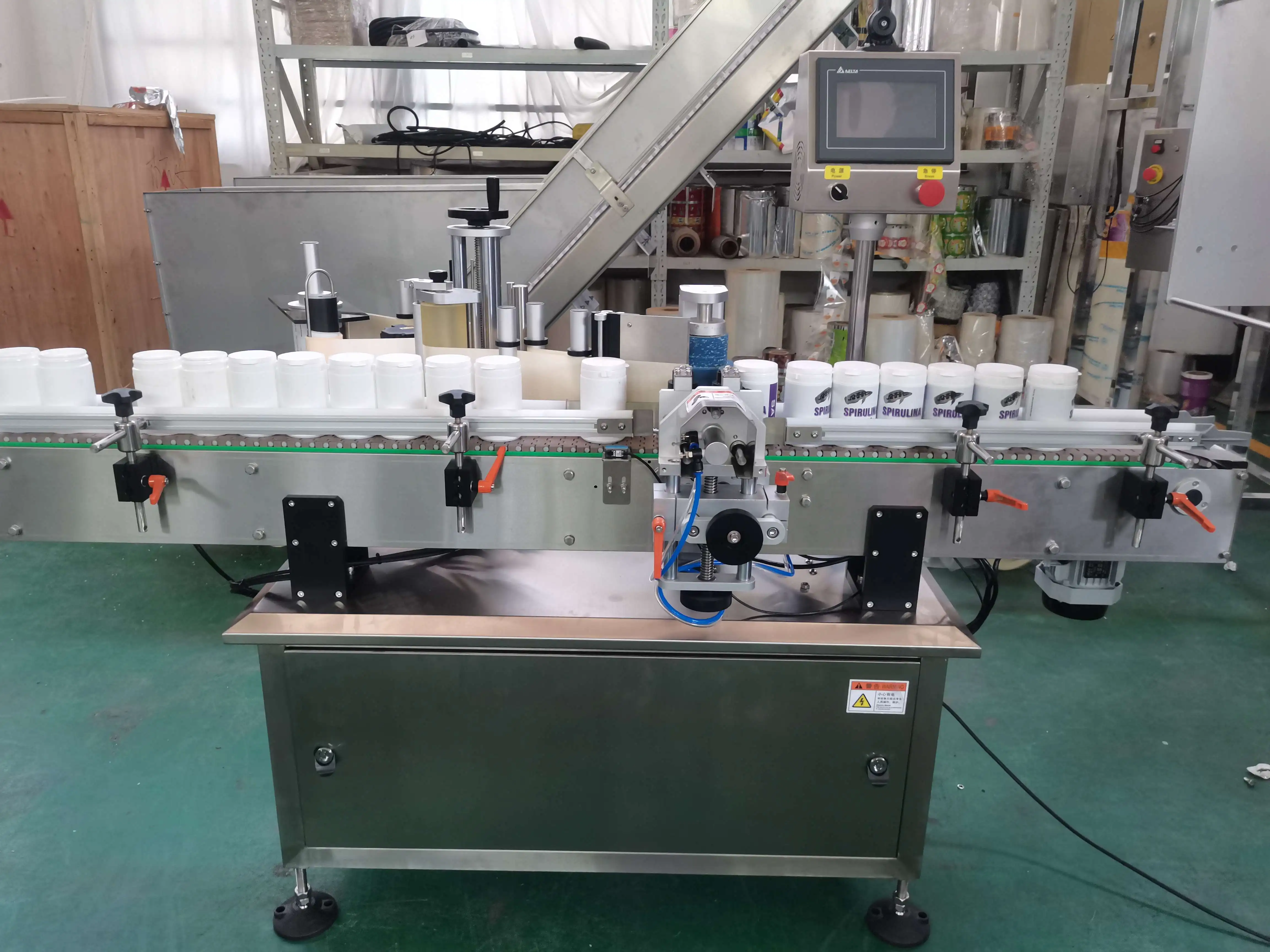

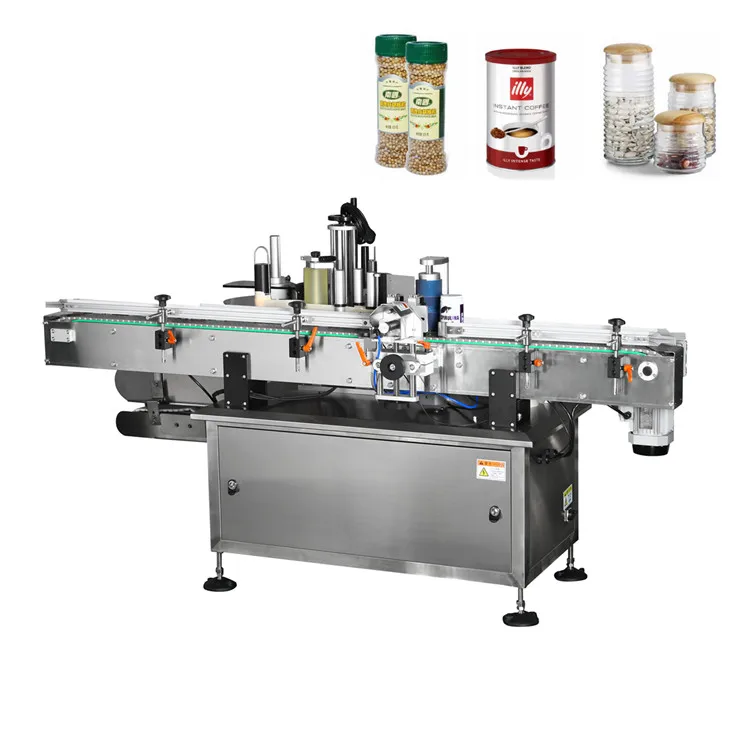

Round bottle fixed-point labeling machine
|
Parameter name
|
specificparameter values)
|
|
Accuracy
|
+-1mm
|
|
The label speed
|
30~120Piece/min
|
|
Machine size
|
3000mmx1450mmx1600mm(length*width *height)
|
|
Application power
|
220V 50/60HZ
|
|
Machine weight
|
180kg
|
|
Voltage
|
220v
|
1.Suitable for the tamper evident labels of round jars.
2. Can work with automatic filling and capping machine to realize automated production. 3. Date coder can be equipped with to print production date on stickers.
