High Speed Jerky Pork Pillow Pouch Packing Machine
Application of Machine
It is suitable for weighing grain, stick, slice, globose, irregular shape products, such as candy, chocolate, jelly, pasta, melon
seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
Technical Feature

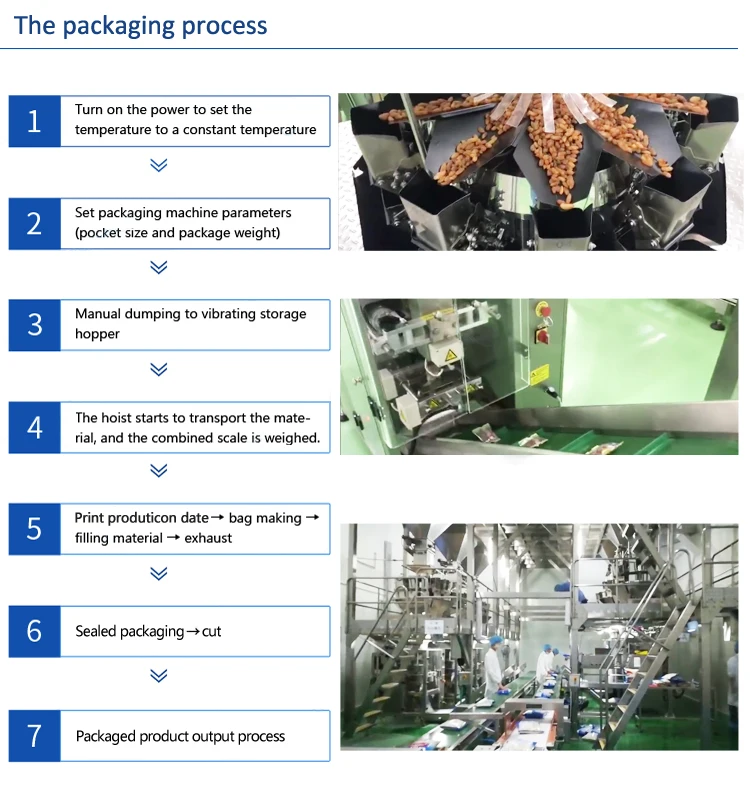

1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
|
Technical Specification
|
||||
|
Model
|
ZH-BL10
|
|||
|
Packing Speed
|
30-70 Bags/Min
|
|||
|
System Output
|
≥8.4 Ton/Day
|
|||
|
Packing Accuracy
|
±0.1-1.5g
|
|||
|
Bag making mode
|
Pillow bag, Gusset bag , Punching bag, Connecting bag
|
|||
|
Packing Material
|
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET.
|
|||
|
Range of measuring (g)
|
5000
|
|||
|
Thickness of film (mm)
|
0.04-0.10
|
|||
|
Power Parameter
|
220V 50/60Hz 2.2KW
|
|||
|
Bag size(mm)
|
VFFS 320: (W) 60-150 (L)50-200
VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
|||
Machine Details
System Unite
1.Z shape bucket conveyor
The conveyor is applicable for vertical lifting of granule product such as corn, food, fodder, plastic and chemical industry, etc.
For this machine, the bucket is driven by the chains to lift.
Chain material: 304SS.
Bucket material: PP
Conveying Height: 2.5-3.8m
Conveying Volume: 2.5-12CBM/hour;
Controller: Frequency converter.
Machine body options: 304SS frame or Mild steel frame.
It can be customise according to customer’s diferent requirement.
The conveyor is applicable for vertical lifting of granule product such as corn, food, fodder, plastic and chemical industry, etc.
For this machine, the bucket is driven by the chains to lift.
Chain material: 304SS.
Bucket material: PP
Conveying Height: 2.5-3.8m
Conveying Volume: 2.5-12CBM/hour;
Controller: Frequency converter.
Machine body options: 304SS frame or Mild steel frame.
It can be customise according to customer’s diferent requirement.
2.Multihead weigher
It is for weighing product according to your target weight.
For different product characteristics and target weight,we have different heads weighing machine.
Machine type:4 heads, 10heads ,14 heads,20 heads
Machine accuracy :± 0.1g-1.5g
Material weight range: 20-5000g
It is for weighing product according to your target weight.
For different product characteristics and target weight,we have different heads weighing machine.
Machine type:4 heads, 10heads ,14 heads,20 heads
Machine accuracy :± 0.1g-1.5g
Material weight range: 20-5000g
3.Working platform
The platform is compact, stable and safe with guardrail and ladder.
The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
304SS Frame
The standard size: 1.9m(L)*1.9m(W)*1.8m(H)
The platform is compact, stable and safe with guardrail and ladder.
The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
304SS Frame
The standard size: 1.9m(L)*1.9m(W)*1.8m(H)
4. Packing machine
It is for packing the product.
304SS Frame
Bag making mode:
Pillow bag,gusset bag,punching bag,connecting bag.
Bag size (mm):
ZH-V320 Packing machine:
It is for packing the product.
304SS Frame
Bag making mode:
Pillow bag,gusset bag,punching bag,connecting bag.
Bag size (mm):
ZH-V320 Packing machine:
(W) 60-150mm (L)50-200mm
ZH-V420 Packing machine:
ZH-V420 Packing machine:
(W) 60-200mm (L)60-300mm
ZH-V520 Packing machine:
ZH-V520 Packing machine:
(W) 90-250mm (L)80-350mm
ZH-V620 Packing machine:
(W) 100-300mm (L)100-400mm
ZH-V720 Packing machine:
ZH-V720 Packing machine:
(W) 120-350mm (L)100-450mm
ZH-V1050 Packing machine:
ZH-V1050 Packing machine:
(W) 200-500mm (L)100-800mm
5.Take -off Conveyor
304SS frame ,belt and chain plate is optionall ,height of output can be modified .
304SS frame ,belt and chain plate is optionall ,height of output can be modified .
