High Sensitivity Auto Setting Parameters Aluminum Foil Bag Food Metal Detector
Product Description
Application
Aluminum Foil metal detector using low-cycle magnetization enhancement technology, stainless steel and iron has a very high sensitivity, not affected by the metal film packaging. It is specifically capable for the detection of ferrous and stainless steel from packages of aluminum sealing bags, aluminum foil bags, highly salty products inside aluminum foil bags, aluminum tinned ham sausage and products made in aluminum.
Sepecification
| Index | Description | Specifications |
| 1 | Major Material | Stainless Steel |
| 2 | Detecting FrameW*H (mm) | 350*70(Height Adjustable) |
| 4 | Best Sensitivity(mm) (Cube test ball) |
Fe≥1.0, SUS304≥2.0 When the total height is 50mm. |
| 5 | Level Setting | Autoset |
| 6 | Width of Conveying Belt (mm) | 350 |
| 7 | Length of Conveying Belt (mm) | 1200 |
| 8 | Working Height (mm) | 700~820 |
| 9 | Throughput Direction | Face to Control Panel, From Left to Right |
| 10 | Max. Conveying Speed (m/min) | 40 |
| 11 | Max. Weight on Belt(kg) | 5 |
| 12 | Alarm Mode | Aural and visual |
| 13 | Rejection Mode | Optional |
| 14 | Power | AC 220V 1 Phase, 200W |
| 15 | Working Environment | Free of high power frequency converter, obvious vibration and dynamic metal objects |
Advanced Technology and Components
- Original imported aluminum foil special detector head, height adjustable ;
- Online drive component fault safety online detection function
- Germany West Green food grade PU conveyor belt
- Taiwan AirTAC pneumatic components Intelligent sensitivity level setting,
- wide applicability All stainless steel 304 frame

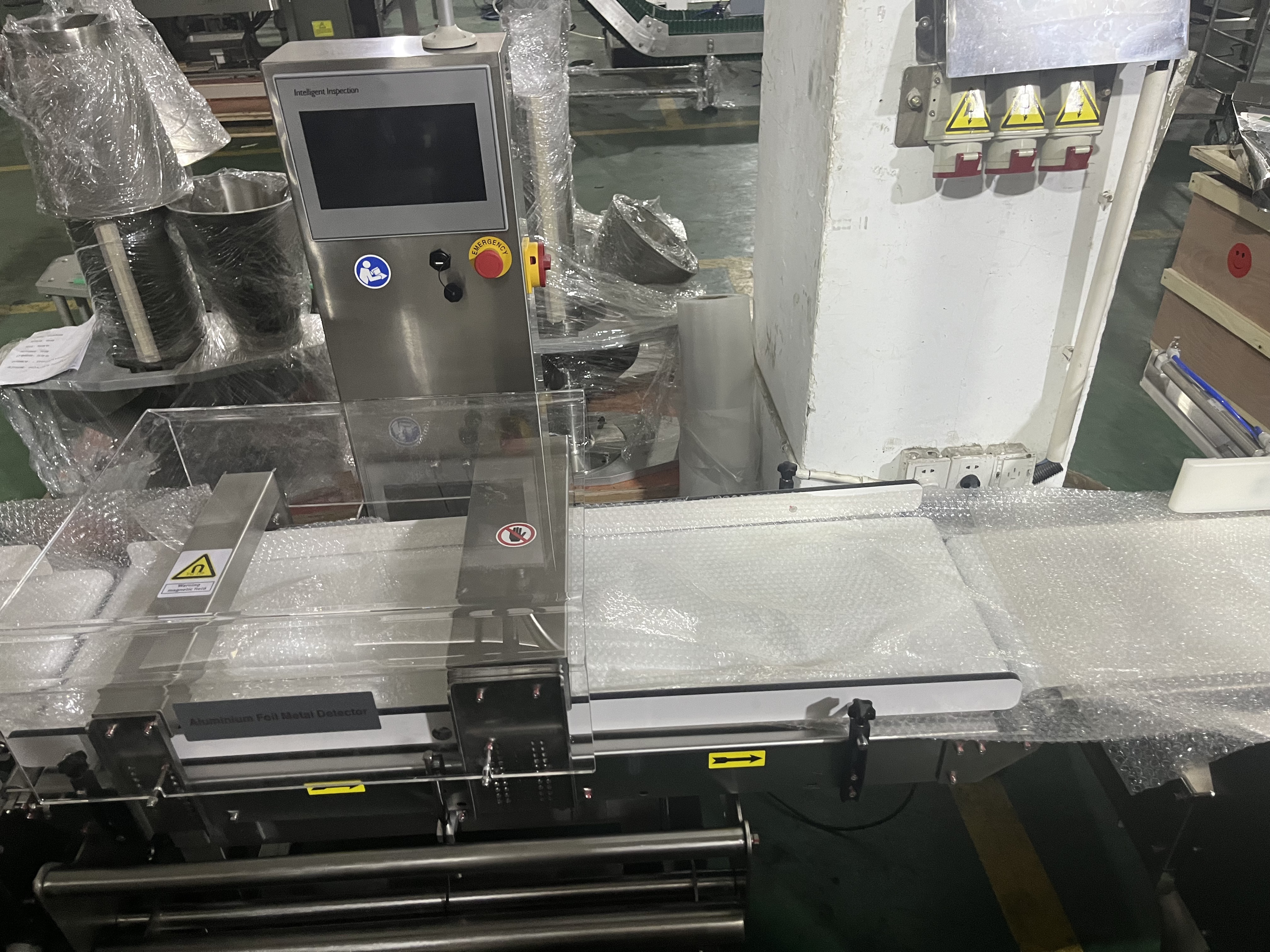

Machine Details
Pre-Sales Service
1.If you are interested in our Metal Detector, We can send your video about the details of its working process.
2.If you want to come to our our factory for better understanding of machinery, we will have a professional introduction from our team, and try to solve your any problem.
After-Sales Service
Trouble shooting service:
Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support.Of course, you need to afford the round trip flight ticket and accommodation fee.
Spare Parts replacement:
For spare parts support: For machine in guarantee period, if spare part broken, we will send you the parts
free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
