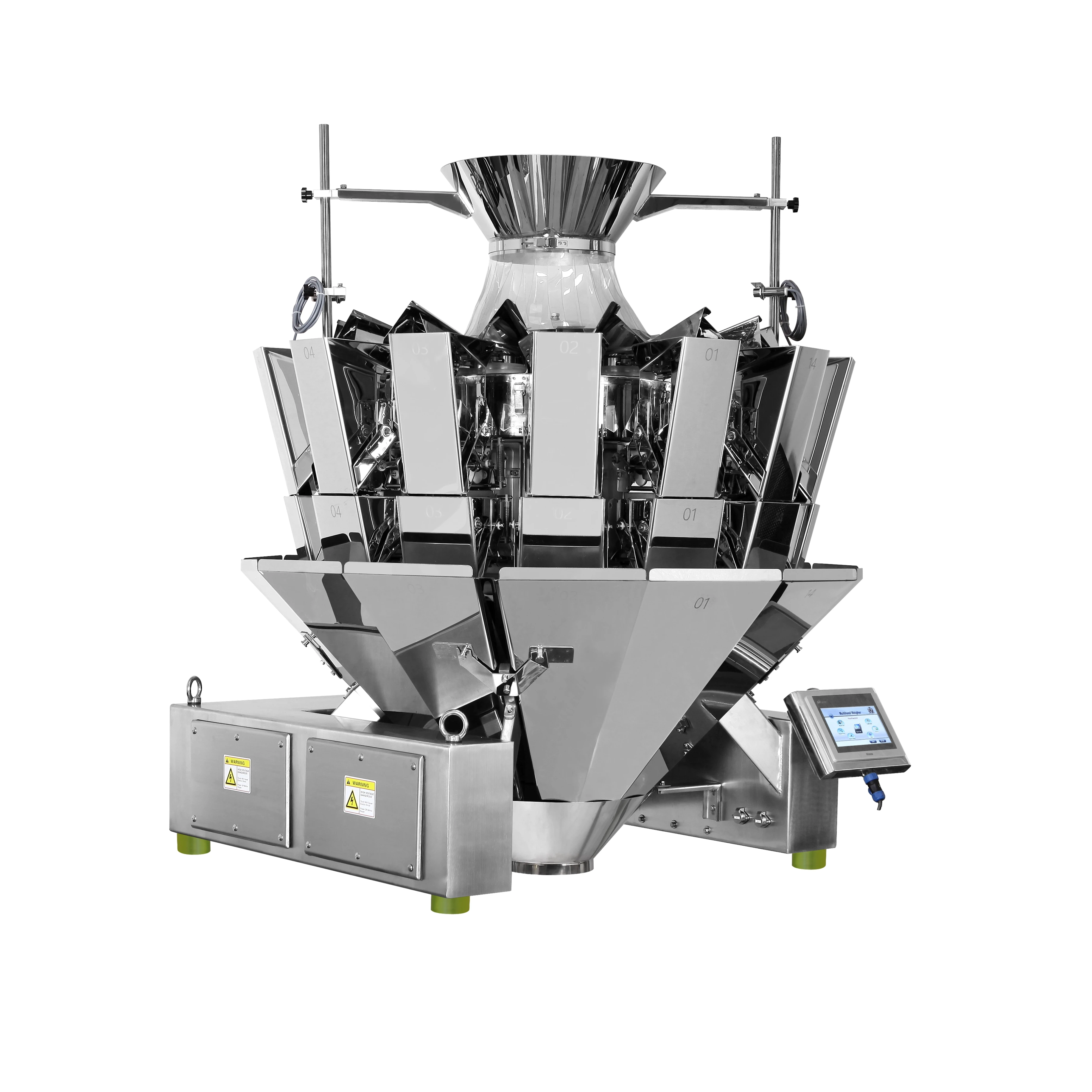

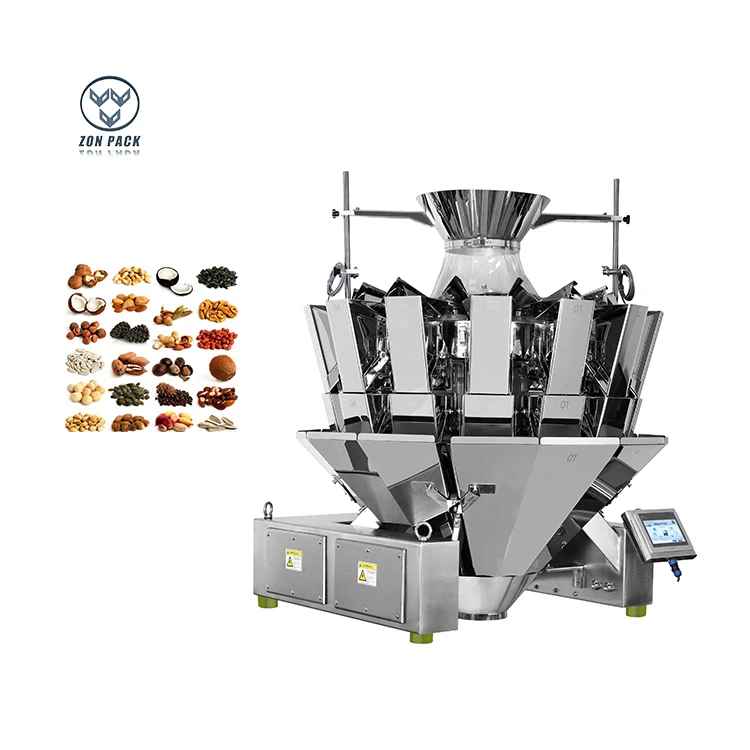

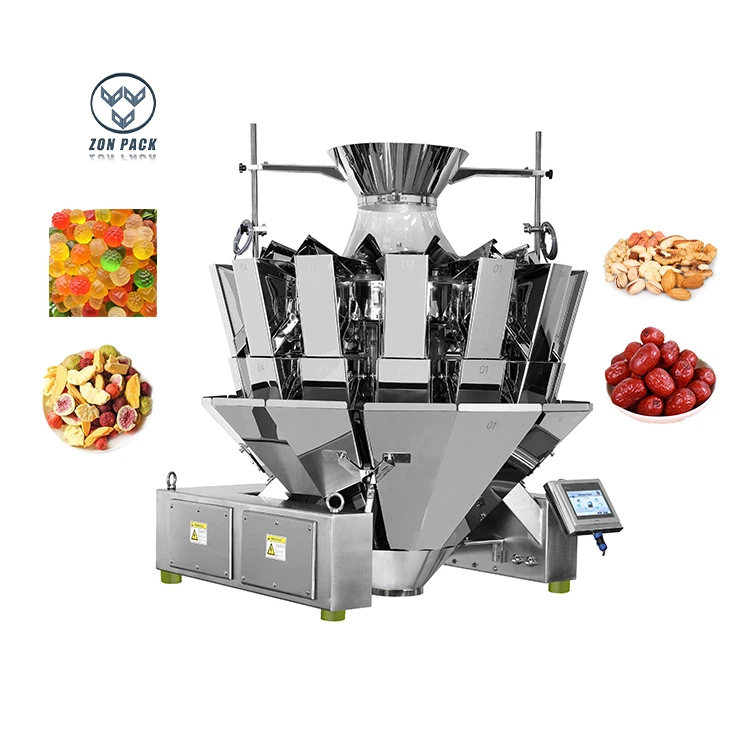

High Quality Automatic 10/14 Head Small Combination Multiehad Weigher Weighing Scale Machine Multihead Weigher
Product Overview
ZH-A10 /ZH-A14
It is developed for precise and high-speed quantitative weighing packaging system.
lt is suitable for weighing material of grain, stick,slice, irregular shape such as candy, fruits, nut,
pet food, roasted seeds, puffed food, frozen food, small hardware.

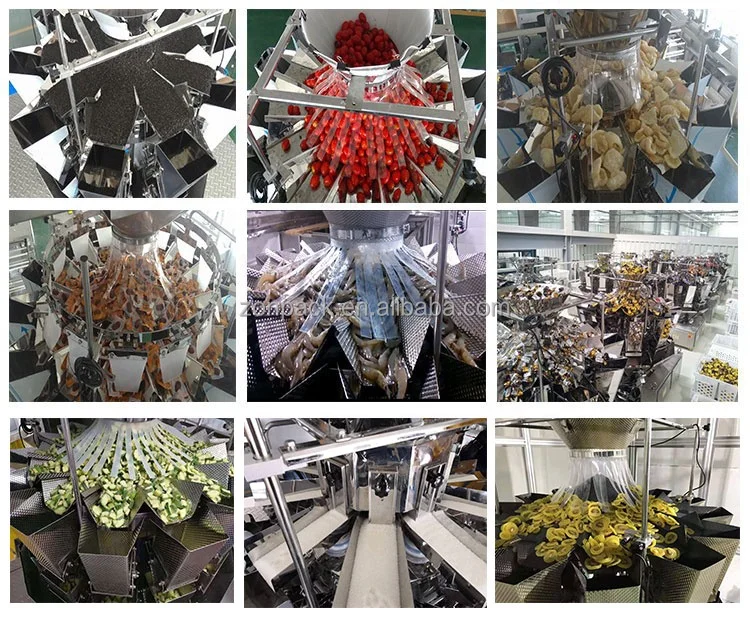

We have co-operation cases for all the products listed above. Please ask me to send you
case photos/case videos. As well as recommend the most suitable model for your product.
PRODUCT SPECIFICATIONS
|
Model
|
ZH-A10
|
|
Weigher Range
|
10-2000g
|
|
Max Weigher Speed
|
65Bags/Min
|
|
Accuacy
|
+-0.1-1.5g
|
|
Hopper Volume
|
1.6L Or 2.5L
|
|
Drive Method
|
Stepper Motor
|
|
Option
|
Timing Hopper/Dimple Hopper/Printer/
Overweigher Identifier/Rotary Vibrator
|
|
Interface
|
7″10HMI
|
|
Power Parameter
|
220v 50/60hz
|
|
Package Volume
|
1650(L)*1120(w）*1150（H）
|
|
Cross Weigher
|
400
|
|
Customisation and wholesale accepted!
|
|
|
Model
|
ZH-A14
|
|
Model Range
|
10-2000g
|
|
Max Weigher Speed
|
120 Bags/Min
|
|
Accuacy
|
+-0.1-1.5 g
|
|
Hopper Volume
|
1.6L Or 2.5L
|
|
Drive Method
|
Stepper Motor
|
|
Option
|
Timing Hopper/Dimple Hopper/Printer,Overweigher ldentifier/Rotary Vibrator
|
|
Interface
|
7″10HMI
|
|
Power Parameter
|
220v 50/60hz
|
|
Package Volume
|
1750(L)*1200(w)*1240(H)
|
|
Cross Weigher
|
490
|
|
Customisation and wholesale accepted!
|
|
What Benefits we can get by using multihead:
- Save material cost (High precision)
- Save labor cost (Full automatic)
- Large-scale production (High speed)
- Facilitate the management (High efficiency & Low maintenance)
- Save material cost (High precision)
- Save labor cost (Full automatic)
- Large-scale production (High speed)
- Facilitate the management (High efficiency & Low maintenance)
Product Details
1：Special load cell with high precision and high standard.
Program recovery function can reduce operation failures, support multi-segment weight calibration.No products auto pause function can improve weighing stability.
2：Mechanical charactor
Enhanced electromagnetic induction vibrator speeds up material feeding Inclined special linear vibration pan to ensure smooth flowing of materials Discharged chute with small angle is better to the falling of materials,effectively control of sticking problem
3：Control Panel
Many languages are available for gobal markets. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
4：Advantages
Special single-door open hopper,anti-adhesive design structure to ensure smooth flowing of materials, prevent sticking, and ensure weighing accuracy.Weighing detection is optional, make accurate control of feeding time and thickness of material, ensure weighing accuracy.

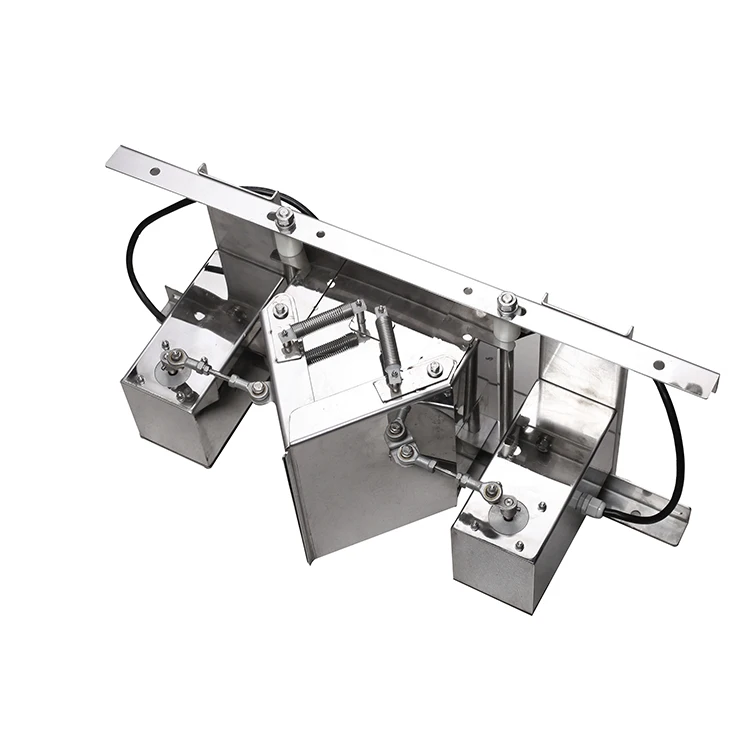

scale hopper
There are three different surface of multihead weighers.
Flat surface for product which is not sticky.

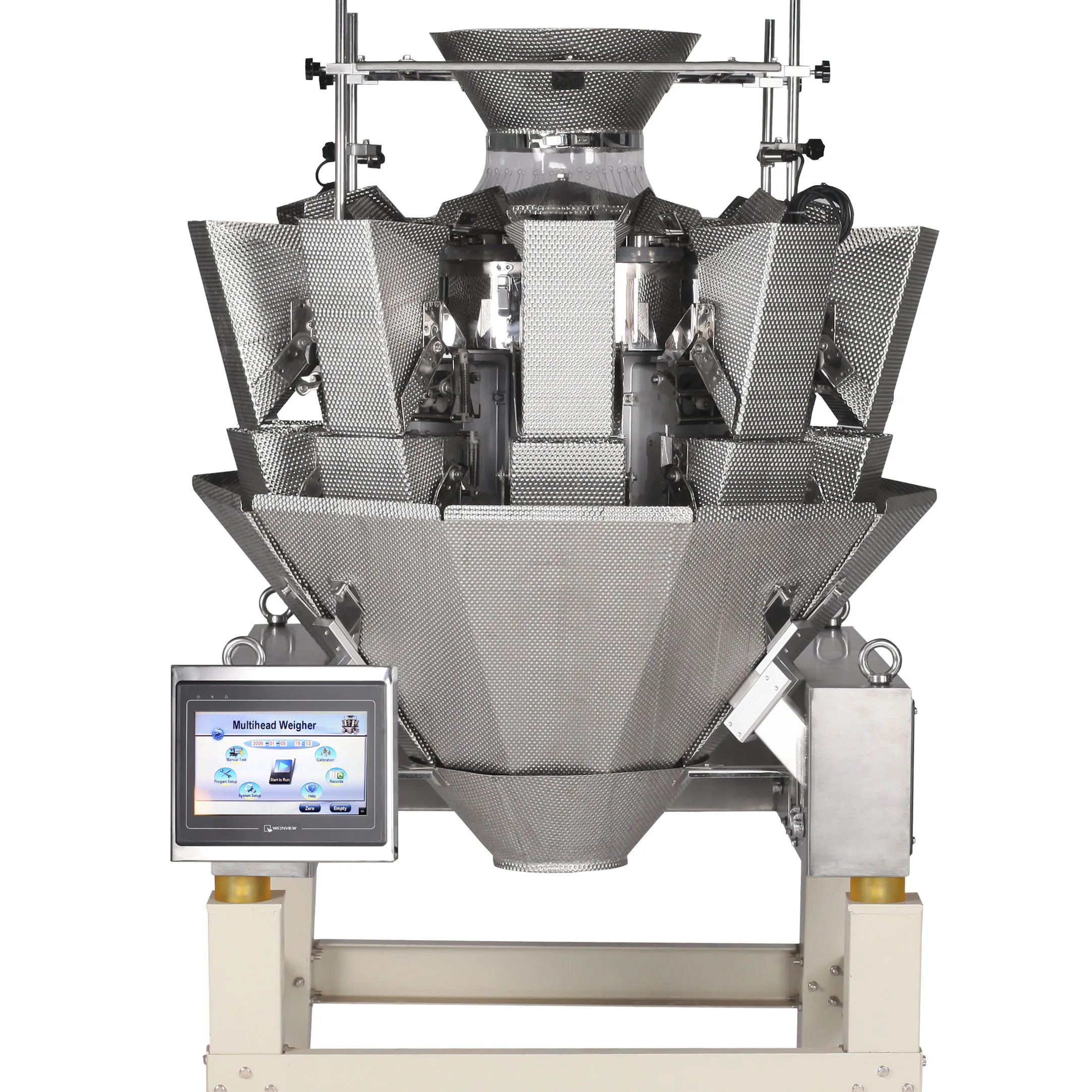

Dimple surface for product which has water.
Teflon surface for sticky product,such as candy,dry date sand so on.
scale hopper volume
0.5L/1.6L/2.5L/5L is optional for 10
heads multihead weigher and 14
heads multihead weigher.

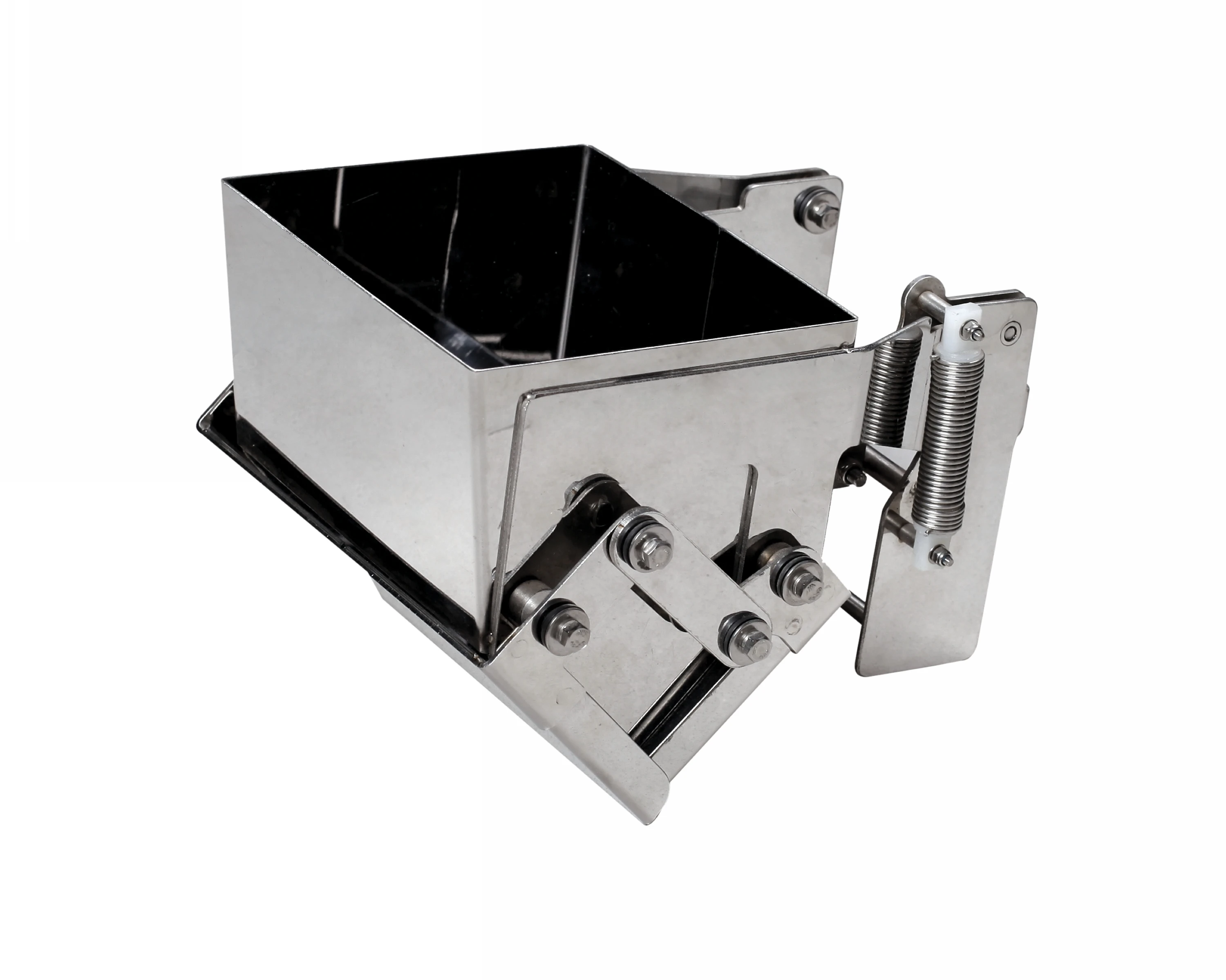

Timing hopper
It can protect product which is easy
to broken,and it also can shorten
the distance from multihead
weigher to packing machine,for high
speed packing

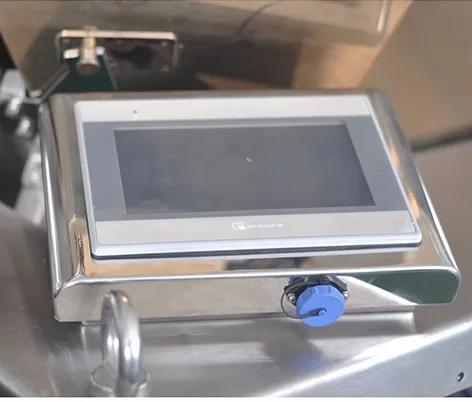

interface
7 inches and 10 inches HMl,multi-
language is optional,such as
English,Japanese,Korean,Spanish,
Arabic,Russian,German and so on.

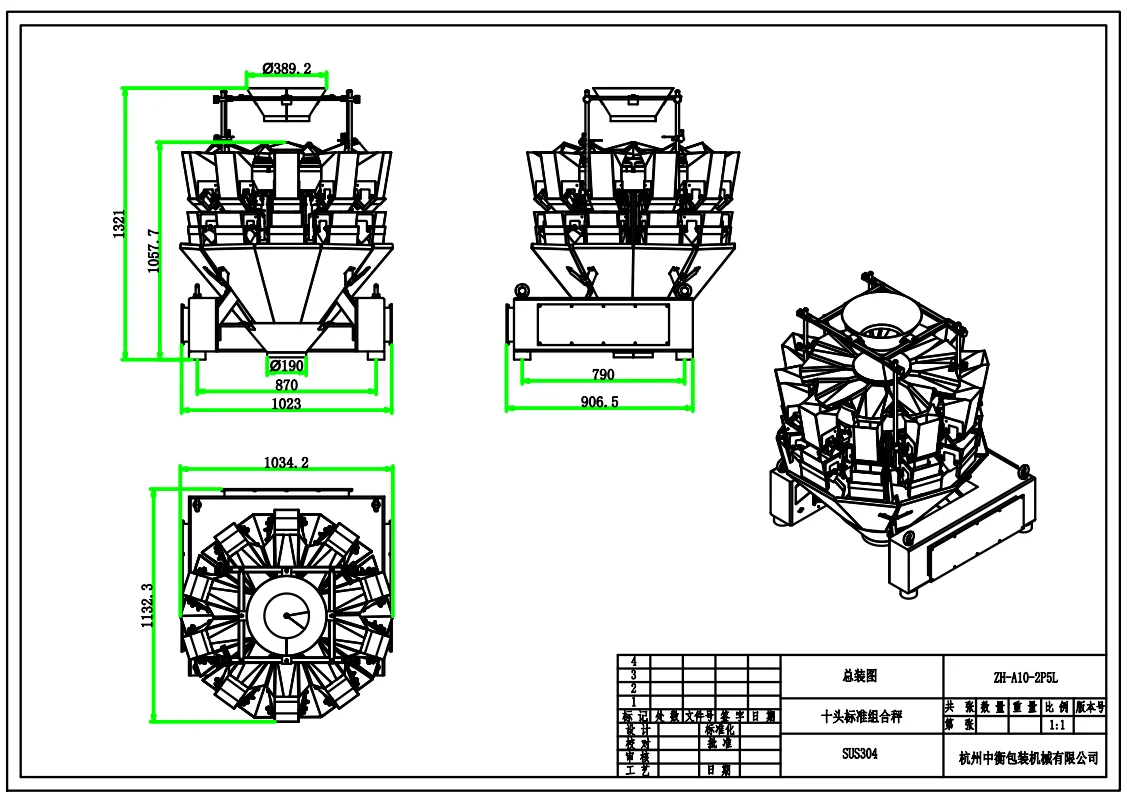

MACHINE DETAILS

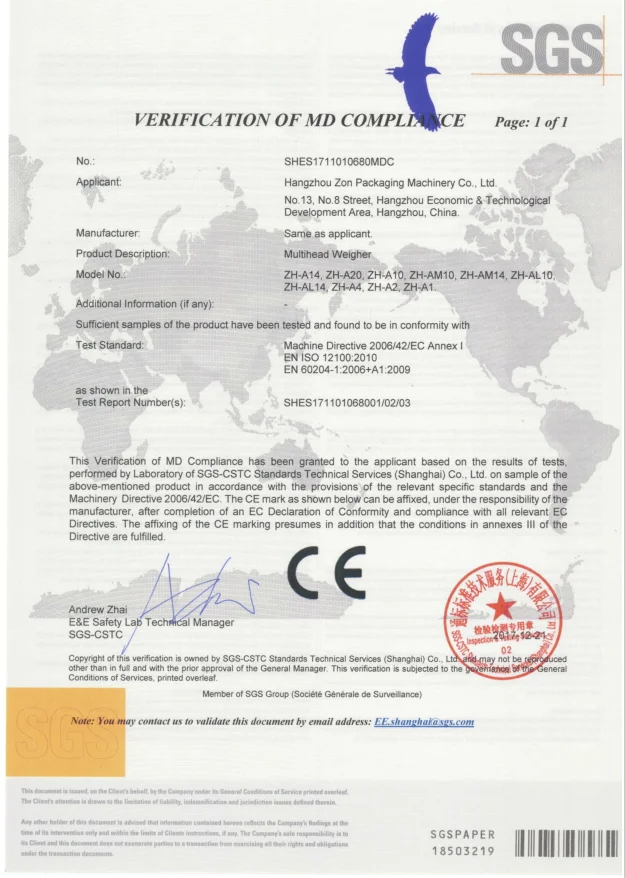

Certificate
