High Capacity Sugar Snack Food Sorghum Paddy Rice Grain Food Grade Z Type Bucket Elevator Conveyor
|
Date sheet of bucket elevator conveyor
|
||||
|
Model
|
ZH-CZ08
|
ZH-CZ18
|
ZH-CZ40
|
ZH-CZ100
|
|
Machine Type
|
Plate Type/Segment Type
|
|||
|
Frame Material
|
Mild Steel/304SS/316SS
|
|||
|
Hopper Materials
|
PP(Food Grade)
|
PP(Food Grade)//304SS
|
PP(Food Grade)
|
|
|
Hopper Volume
|
0.8L
|
1.8L
|
4L
|
10L
|
|
Capacity
|
0.5-2m³/h
|
2-6m³/h
|
6-12m³/h
|
6-12m³/h
|
|
Exit Height
|
1.5m-8m (Customized)
|
|||
|
For provide spefic quotation，pls let me know：
1：what is your product？
2：what height do you want？
3：what is your require capicity？
4：what is your factory voltage？
|
||||
Product Introduction

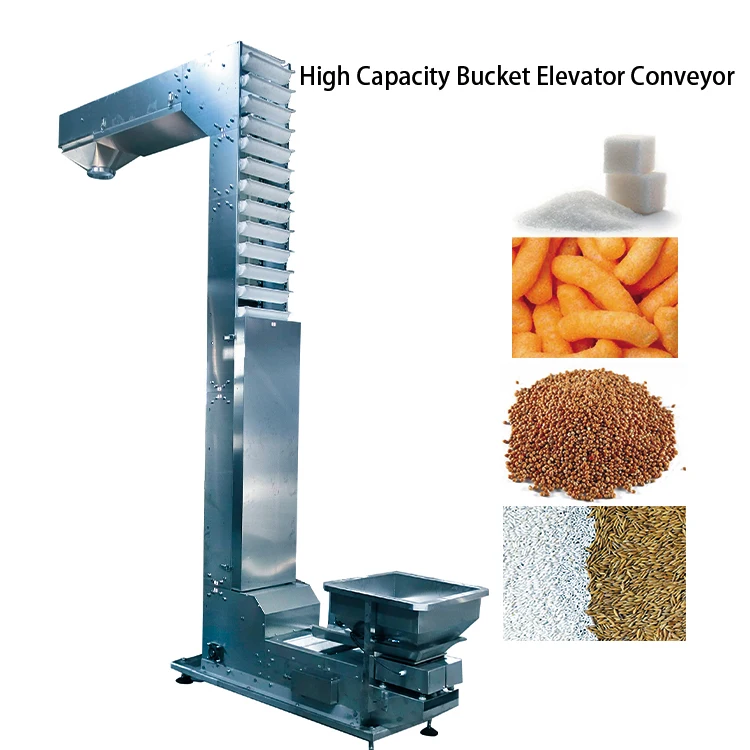

Z shape bucket conveyor
Z bucket elevator can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feed stuff, and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.
***
1：Above product we have relative case
2：We provide free test If you need.
3：We accept all kinds of customized

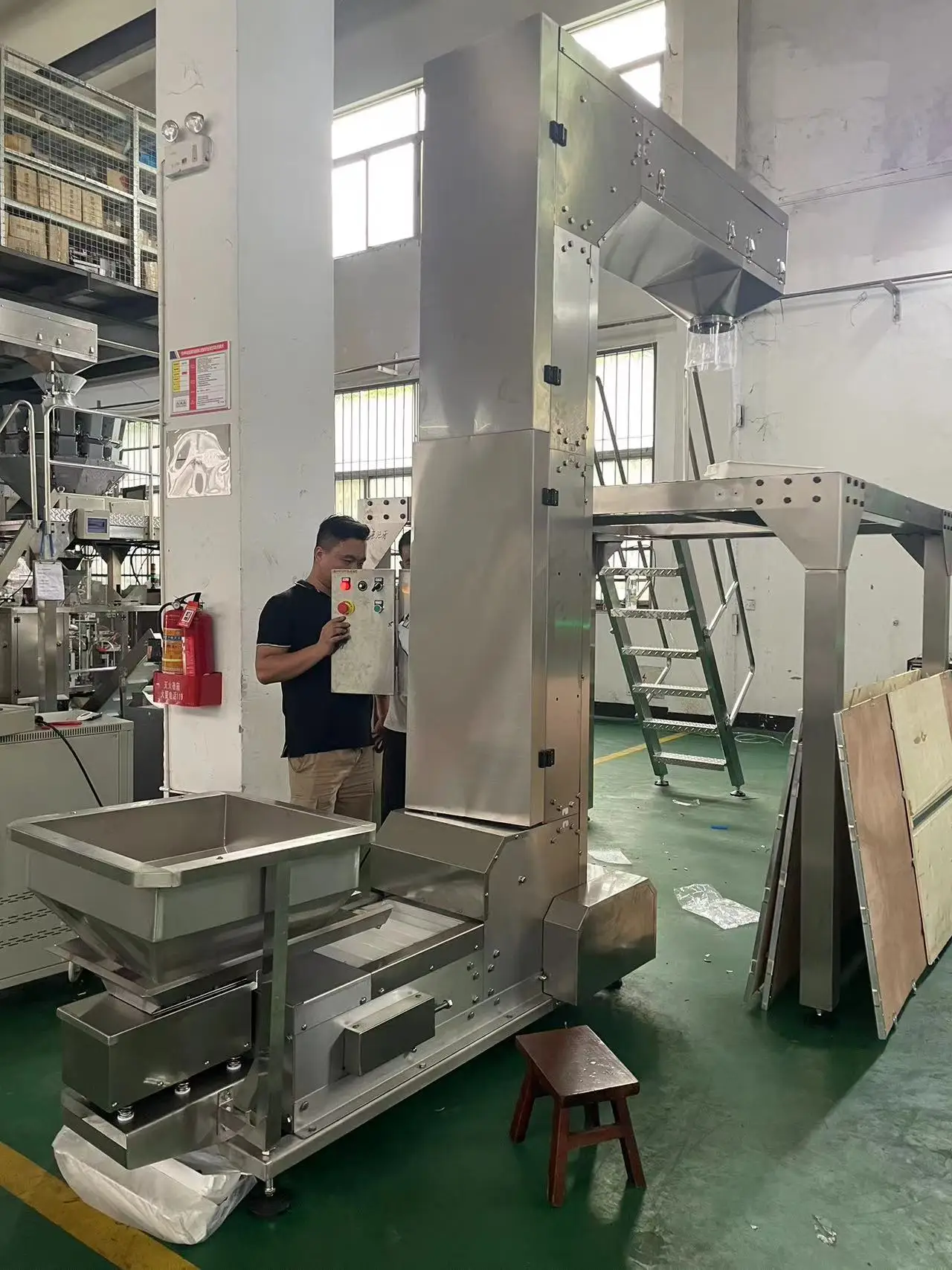

How height do you want？
As picture show，

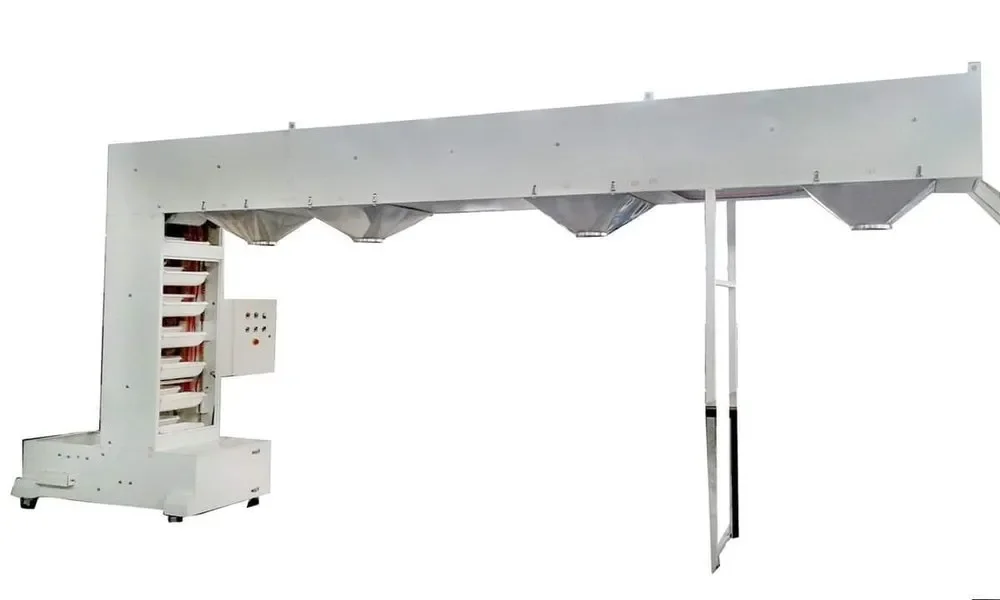

1：whatever how height do you want？
2：whatever how many output do you want？
2：whatever how big storage hopper do you like？
We all can do it！
What is your capicty requires？

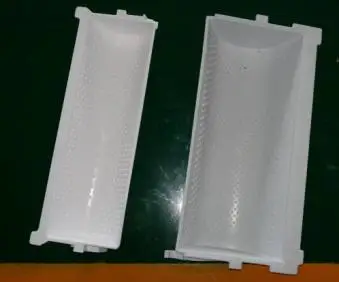

Storage hopper have many choose for you，
0.8L/1.8L/4L/10L And more
We can according your requires of capicity customized hopper size.
Plus hopper material is food grade or PP,can meet food industry requires.
Just let me know which storage hopper volum do you like?

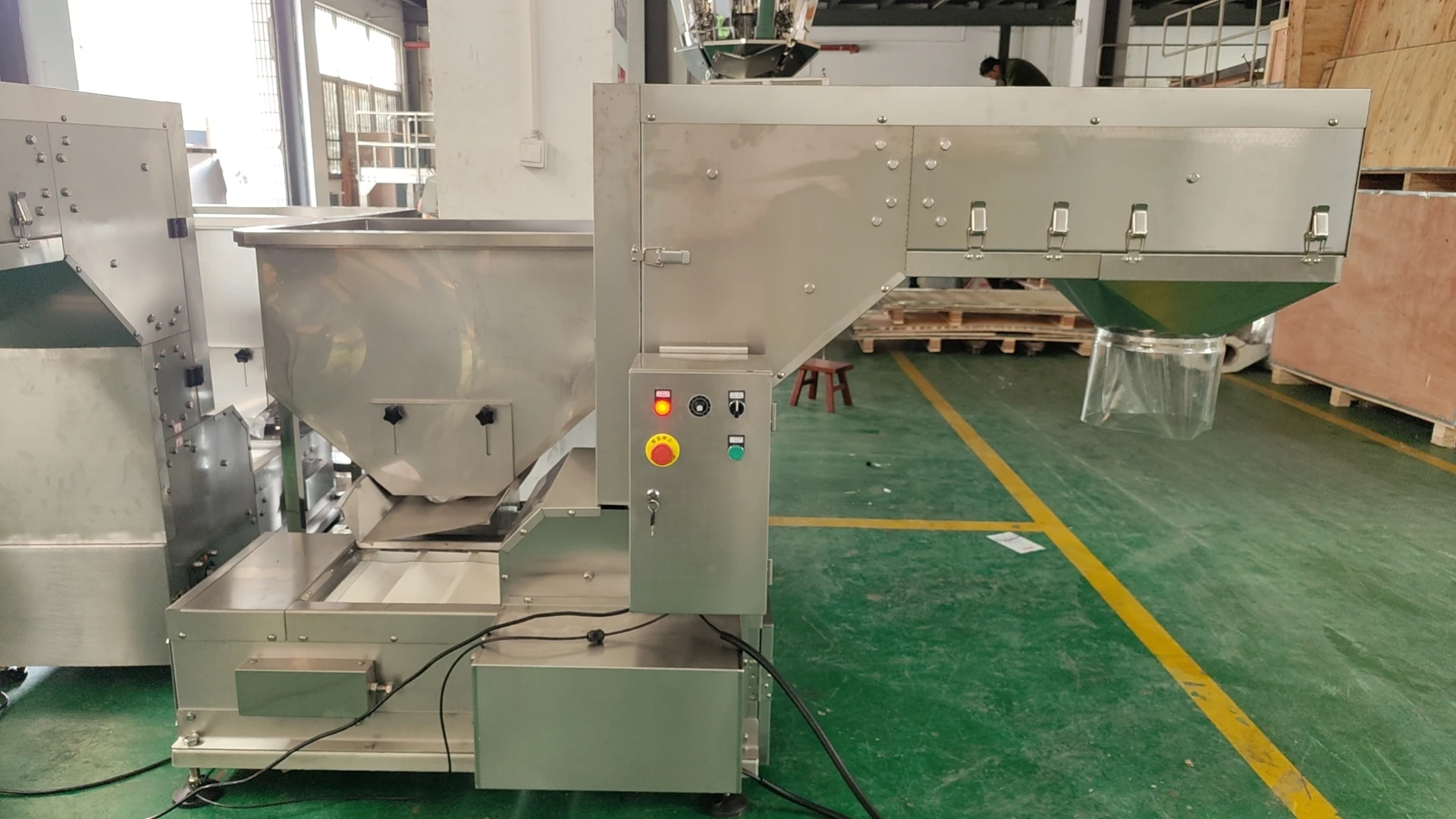

Details Show
Dependece gearbox control
Conveying speed could be controlled by frequency converter or fixed，vibration frequency also can be freely adjust
Worker Have a good working environment and reduce raw material waste.
Fully enclosed, keeping clean and sanitary. With inspection window
Stainless steel chain which is easy to maintain and long lifespan，Plus have CE certificates.
