Food Grade Metal Detector for Aluminum Foil Packaging
Application
Aluminum Foil metal detector using low-cycle magnetization enhancement technology, stainless steel and iron has a very high sensitivity, not affected by the metal film packaging. It is specifically capable for the detection of ferrous and stainless steel from packages of aluminum sealing bags, aluminum foil bags, highly salty products inside aluminum foil bags, aluminum tinned ham sausage and products made in aluminum.
Sepecification
| Index | Description | Specifications |
| 1 | Major Material | Stainless Steel |
| 2 | Detecting FrameW*H (mm) | 350*70(Height Adjustable) |
| 4 | Best Sensitivity(mm) (Cube test ball) |
Fe≥1.0, SUS304≥2.0 When the total height is 50mm. |
| 5 | Level Setting | Autoset |
| 6 | Width of Conveying Belt (mm) | 350 |
| 7 | Length of Conveying Belt (mm) | 1200 |
| 8 | Working Height (mm) | 700~820 |
| 9 | Throughput Direction | Face to Control Panel, From Left to Right |
| 10 | Max. Conveying Speed (m/min) | 40 |
| 11 | Max. Weight on Belt(kg) | 5 |
| 12 | Alarm Mode | Aural and visual |
| 13 | Rejection Mode | Optional |
| 14 | Power | AC 220V 1 Phase, 200W |
| 15 | Working Environment | Free of high power frequency converter, obvious vibration and dynamic metal objects |
Advanced Technology and Components
- Original imported aluminum foil special detector head, height adjustable ;
- Online drive component fault safety online detection function
- Germany West Green food grade PU conveyor belt
- Taiwan AirTAC pneumatic components Intelligent sensitivity level setting,
- wide applicability All stainless steel 304 frame

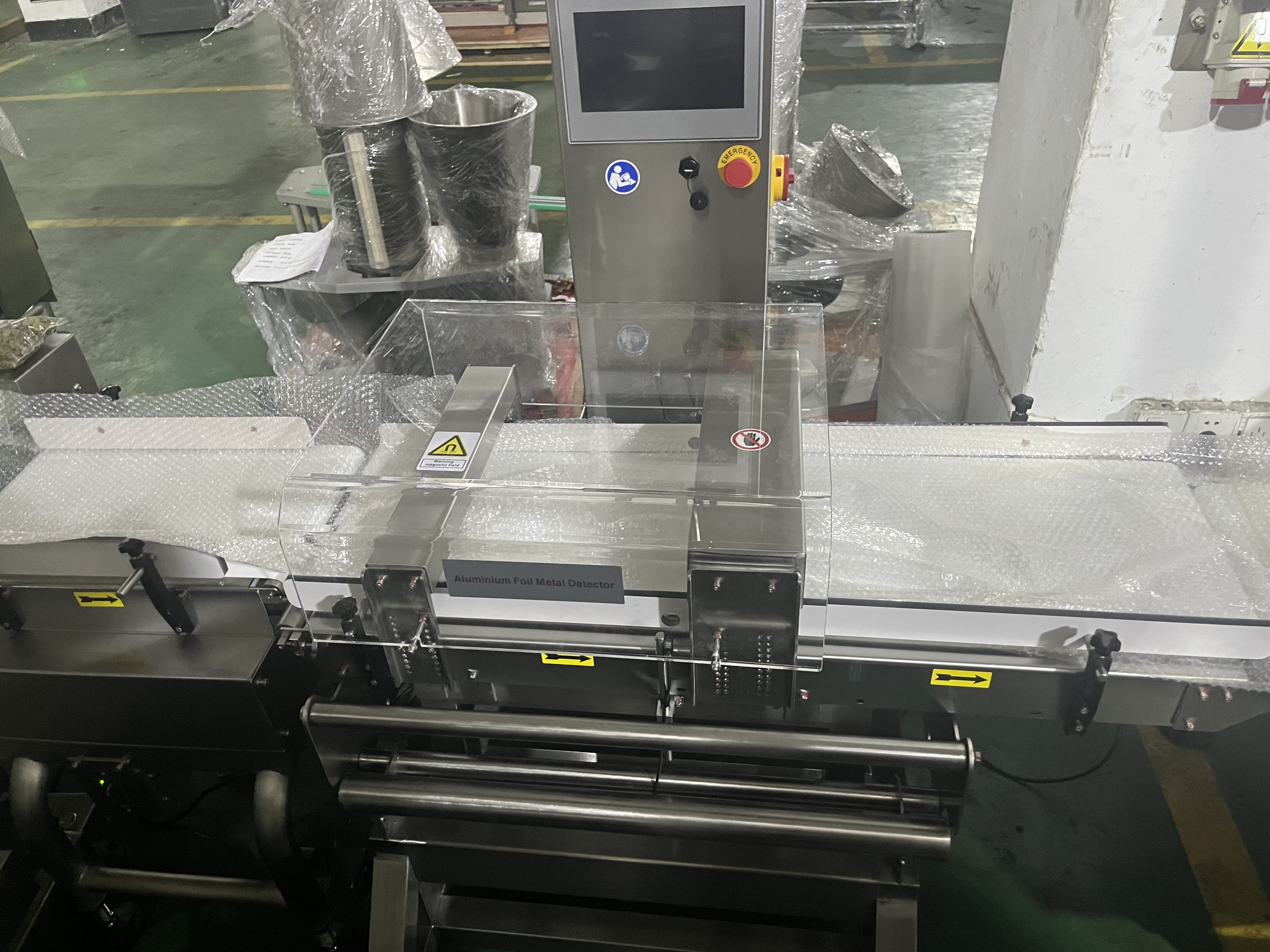

Machine photos
