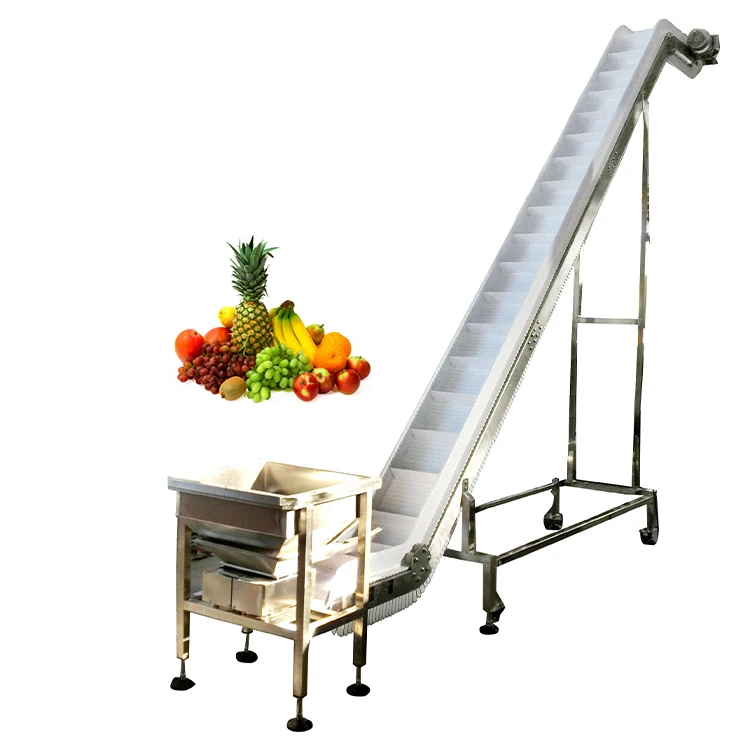

Food Grade Incline belt elevator conveyor for frozen food/fresh fruits
What is Food Grade Belt Conveyor?
PVC belt conveyor
Food grade belt conveyor is a conveying system specialy designed and manufactured for the food industry to transport all kinds of foodincluding raw materlals, finished products and packaoing materials.
These materials are easy to clean and sanitize, and do not pose a risk of contamination to the food being transported.

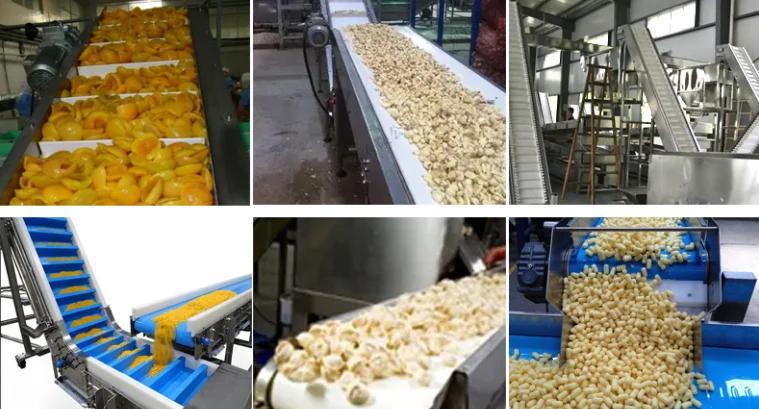

What is the application of food grade belt conveyor?
Food grade belt conveyors are used to transport various food products in the food industry. Here are some common examples:
Raw materials/Finished Products/Dairy/Meat and Poultry/Frozen food /Bakery Products/Snack Food so on
Specification
|
Model
|
ZH-CF
|
|
Frame Material
|
304SS
|
|
Belt material
|
PP /PVC / PU(Food grade)
|
|
Belt width
|
300/450mm（（can be custmoized））
|
|
Height
|
3480 mm（can be custmoized）
|
|
Capacity
|
3-7m’
|
|
Storage Hopper volume
|
70L/110L/ 340 L
|
|
Power parameter
|
AC 220V/AC 380V,50HZ;
|
|
Weight
|
450kg
|

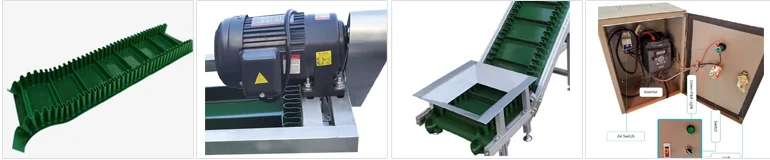

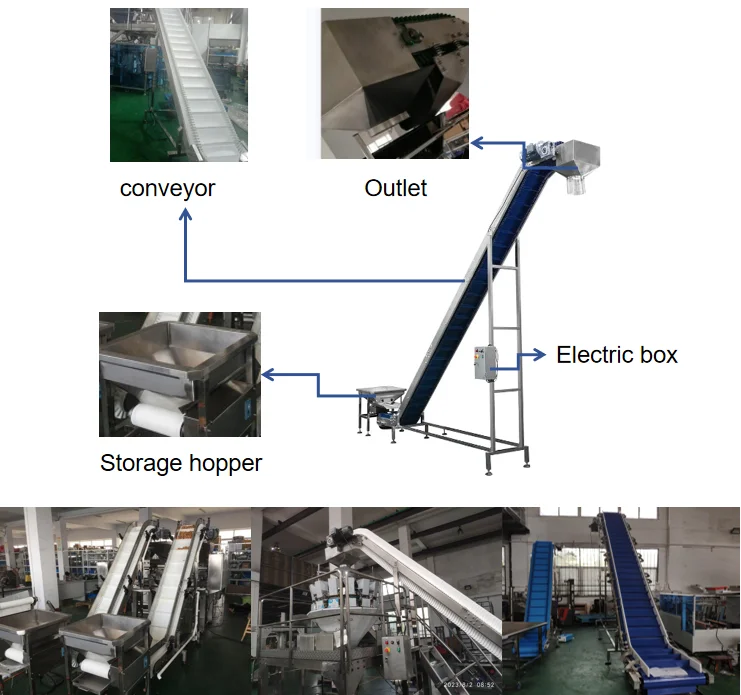

Food Grade Belt Conveyor Structure and Details
Conveyor Belt: This is the main part of the conveyor and is made of food safe materials like PVC. The belt moves along a series of rollers or pulleys, which help guide the belt and maintain tension.
Motor: The motor provides the power to drive the conveyor belt, enabling it to move products from one place to another. The motor is usually located at one end of the conveyor and is attached to the pulleys or pulleys that move the belt.
Bearings: Bearings are used to support the rollers or pulleys that guide the conveyor belt. They help reduce friction and ensure smooth and efficient belt movement.
Rollers or Pulleys: These components guide the belt along its path and help maintain belt tension. They are usually made of stainless steel or other food-safe materials.
Frame: The frame provides support for the belt and helps keep it in place as it moves along the rollers. The frame is usually made of stainless steel or other food-safe material.
Motor: The motor provides the power to drive the conveyor belt, enabling it to move products from one place to another. The motor is usually located at one end of the conveyor and is attached to the pulleys or pulleys that move the belt.
Bearings: Bearings are used to support the rollers or pulleys that guide the conveyor belt. They help reduce friction and ensure smooth and efficient belt movement.
Rollers or Pulleys: These components guide the belt along its path and help maintain belt tension. They are usually made of stainless steel or other food-safe materials.

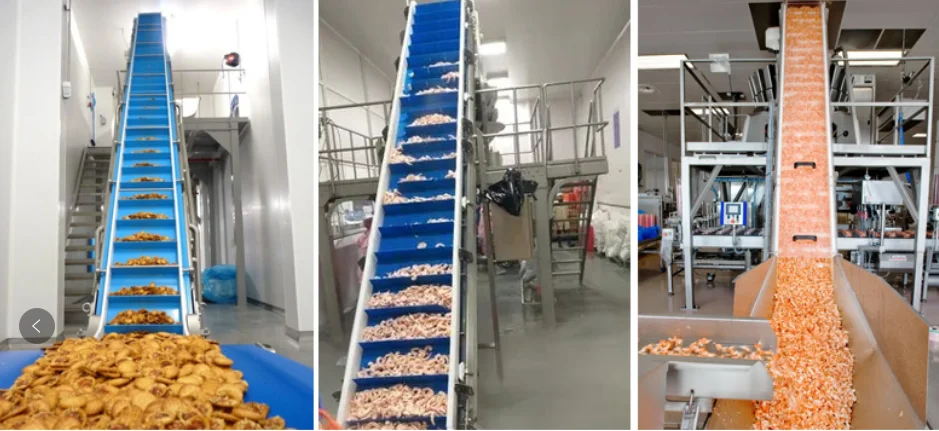

Case Show
We have many coveyor options. And supports various customizations.
Share your requirements, height, products and let me propose a solution for you.
