Factory Price Automatic Food Packing Machine Multi Functional Potato Chips Nuts Cereal Snacks Packaging Machine
How to pack potato chips in multihead scale packaging machine?
Machine operation process:

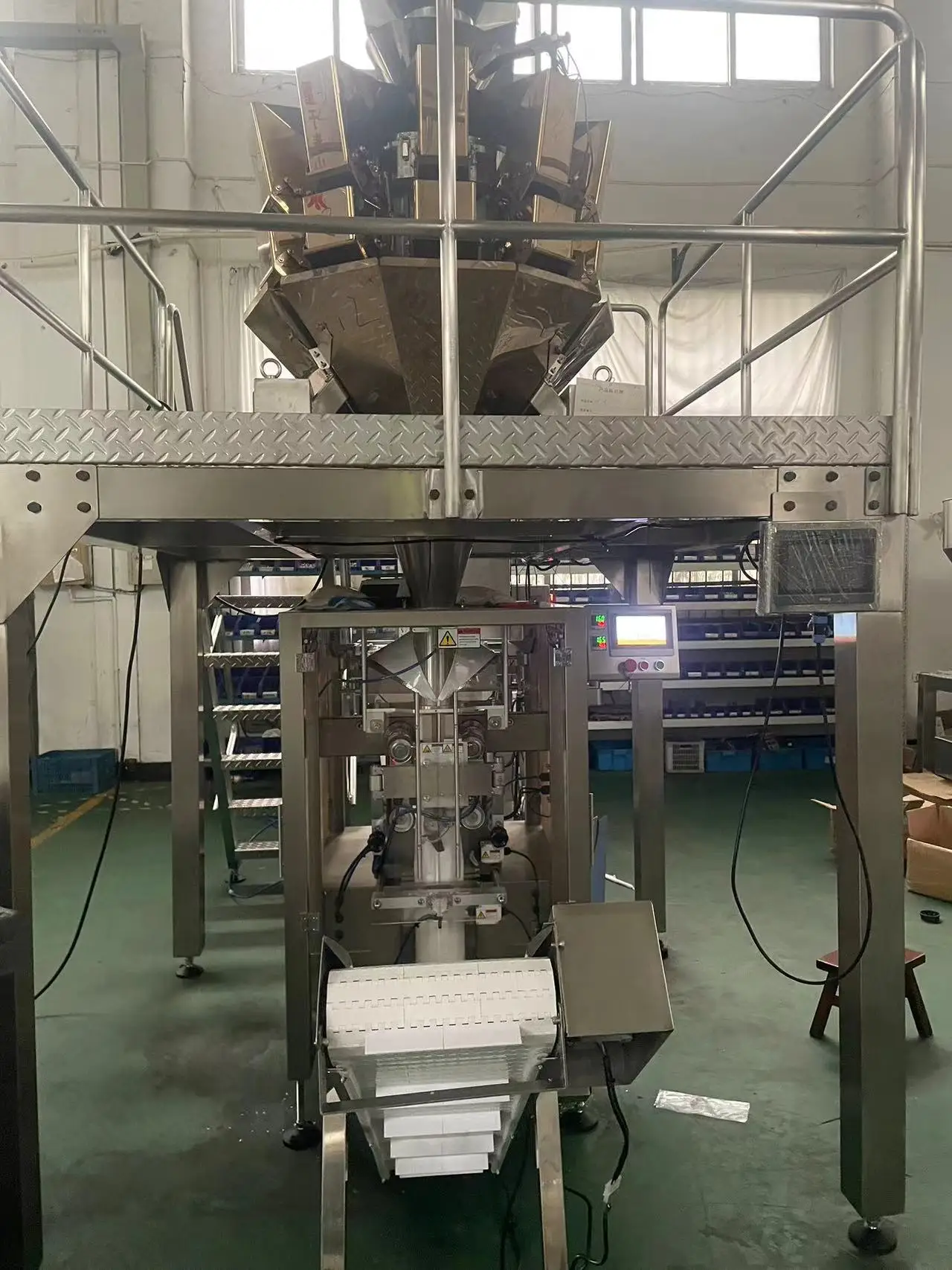

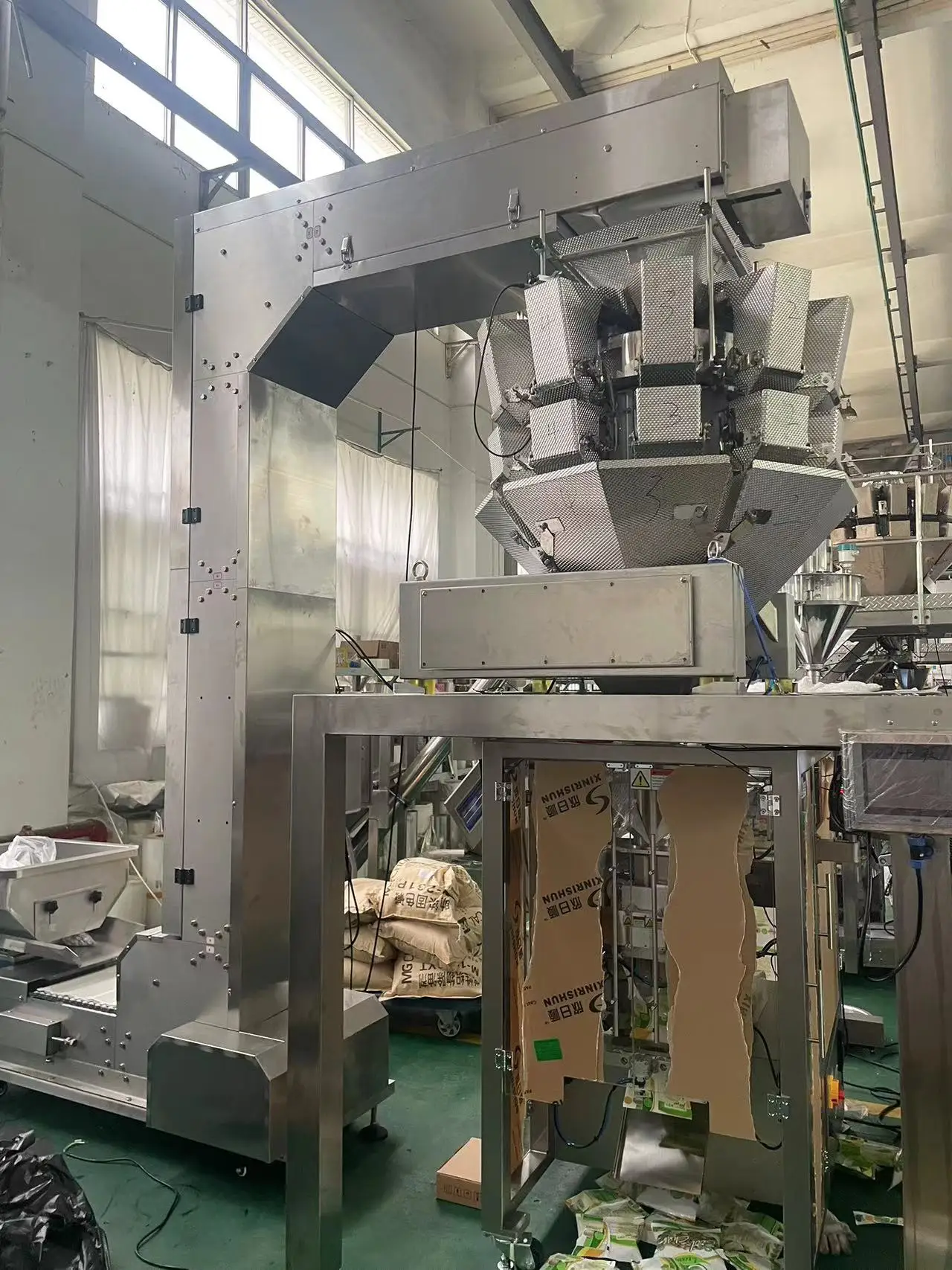

Z Shape Conveyor——10/14Head Weigher——-Working Platform——Vertical Packaging Machine——-Finished Conevyor——Metal Detector———Check Weigher
printer, nitrogen charging device, hole punching machine, etc. are also available as options. We support customized service.
What features do you want from the machine? What size of package do you want to pack?
Product Description
The machine can be suitable for packing potato chips, French potato chips, apple chips, corn chips, chunky potato chips, corn chips, banana chips, shrimp chips and so on.
It is also suitable for snacks Popcorn, fava beans, melon seeds, Candy. In addition, the machine can be made according to your actual product requirements.
What factors affect the price of a chip packaging machine?

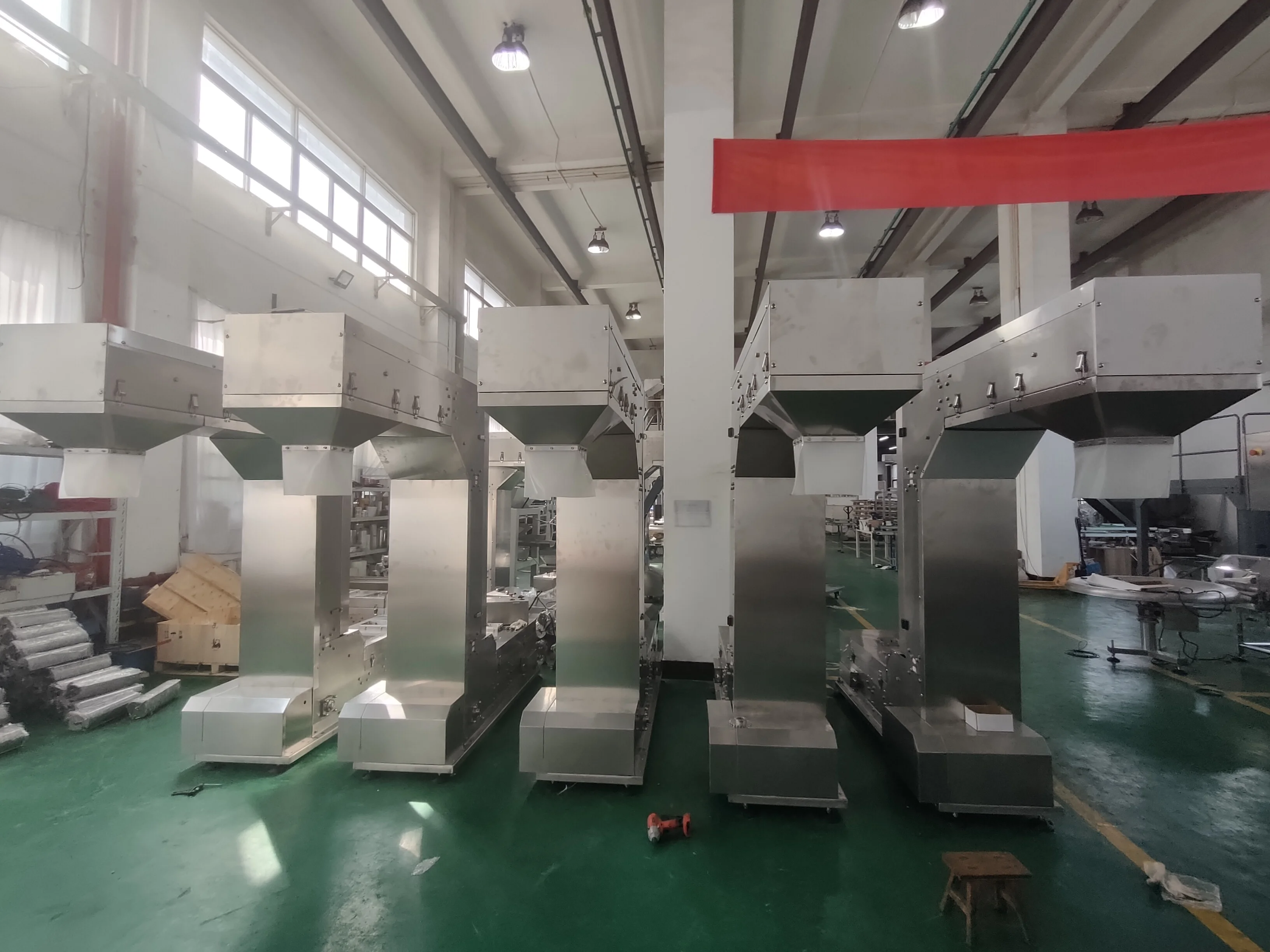

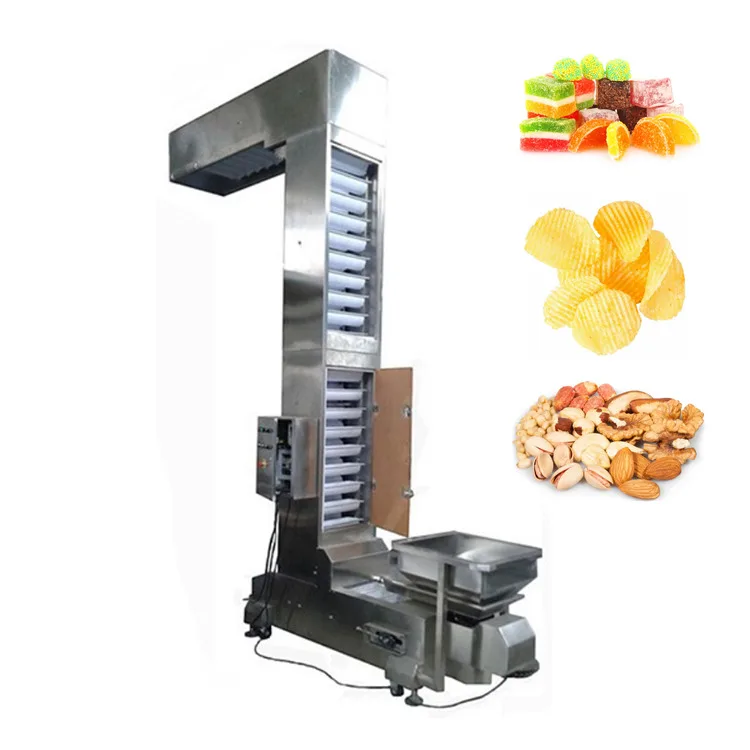

Z Shape Conveyor
We have hopper is 0.8L/1.8L/4L/10L and so on many options, food grade and non-food grade. Customization is highly accepted.
The hottest seller is 1.8L Z shape Conveyor
High transport efficiency Wide load range Automatic transportation Easy maintenance
|
Model
|
ZH-CZ
|
|
Bucket Volume (L)
|
1.8
|
|
Convey Capacitance (m3/h)
|
4-6.5
|
|
Power
|
220V or 380V 50/60Hz 0.75kW
|
|
Package Size (mm)
|
1900(L)*950(W)*1150(H)
|
|
Height for standard Machine. (mm)
|
3600
|
|
Gross Weight (Kg)
|
500
|

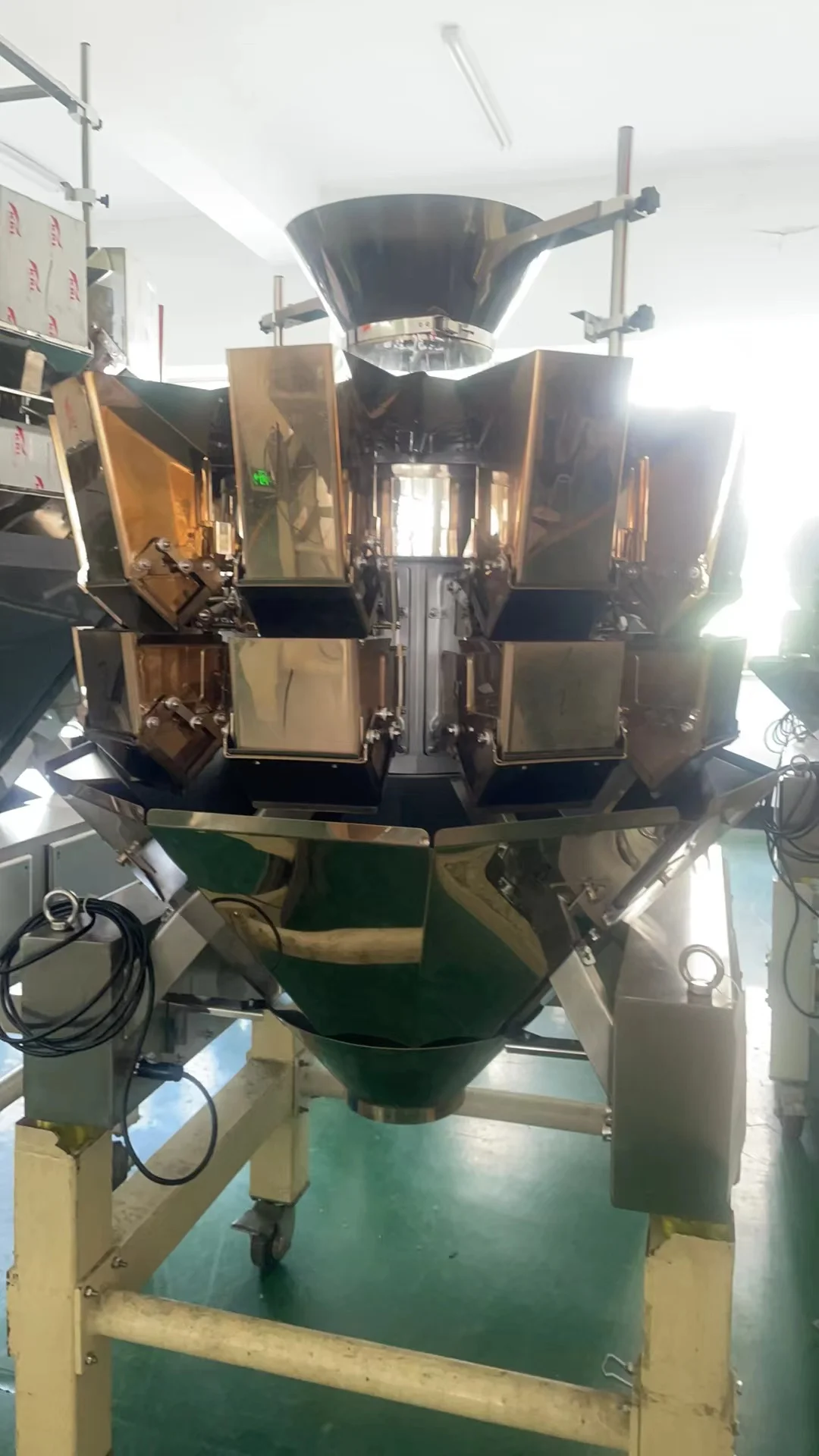

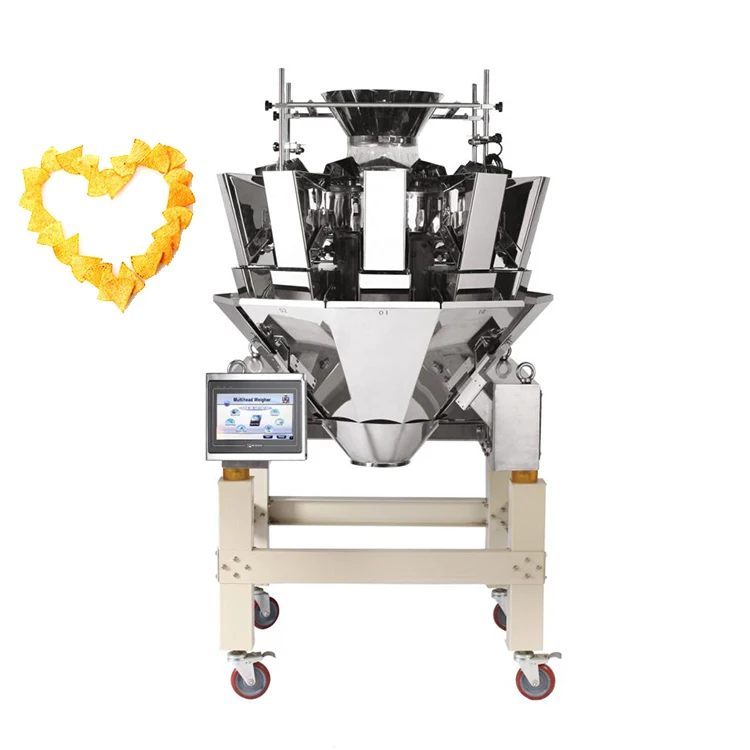

Mutilhead weigher
Our factory have 10/14/20/24head weigher etc. quantitative weighing equipment.
The most commonly weighed chips are 10head 2.5L，can meet 10-2000g chips
Factory direct sales, quality is guaranteed, the most competitive price
|
Model
|
ZH-A10
|
|
Weighing Range
|
10-2000g
|
|
Max Weigh Speed
|
65 Bags/Min
|
|
Accuracy
|
±0.1-1.5g
|
|
Hopper Volume
|
1.6L
|
|
Driver Method
|
Stepper Motor
|
|
Option
|
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/
Overweight Identifier / Rotary Vibrator |
|
Interface
|
7″/10″HMI
|
|
Power Parameter
|
220V/ 1000W/ 50/60HZ/
|
|
Package Volume (mm)
|
1650(L)×1120(W)×1150(H)
|
|
Gross Weight(Kg)
|
400
|

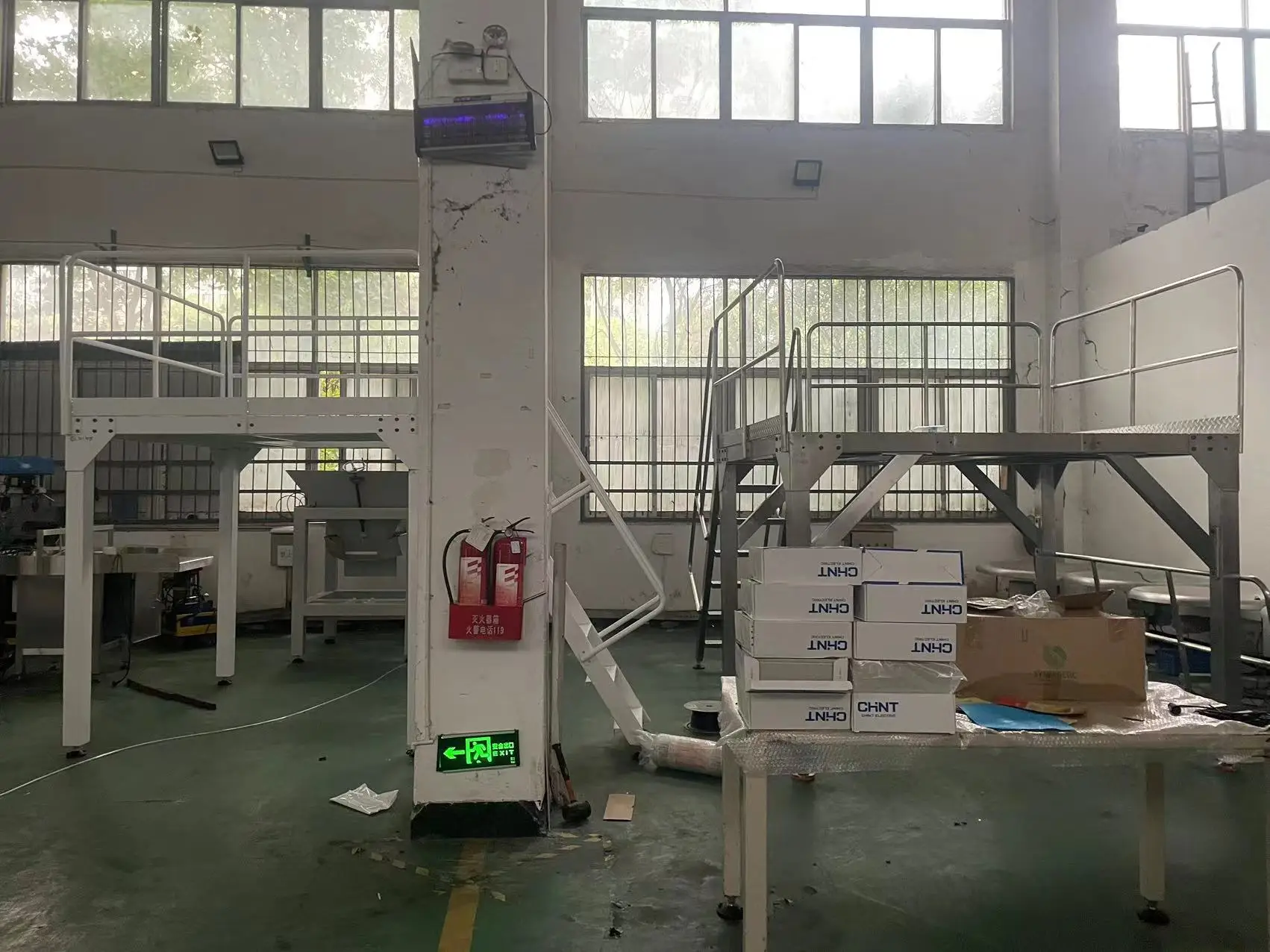

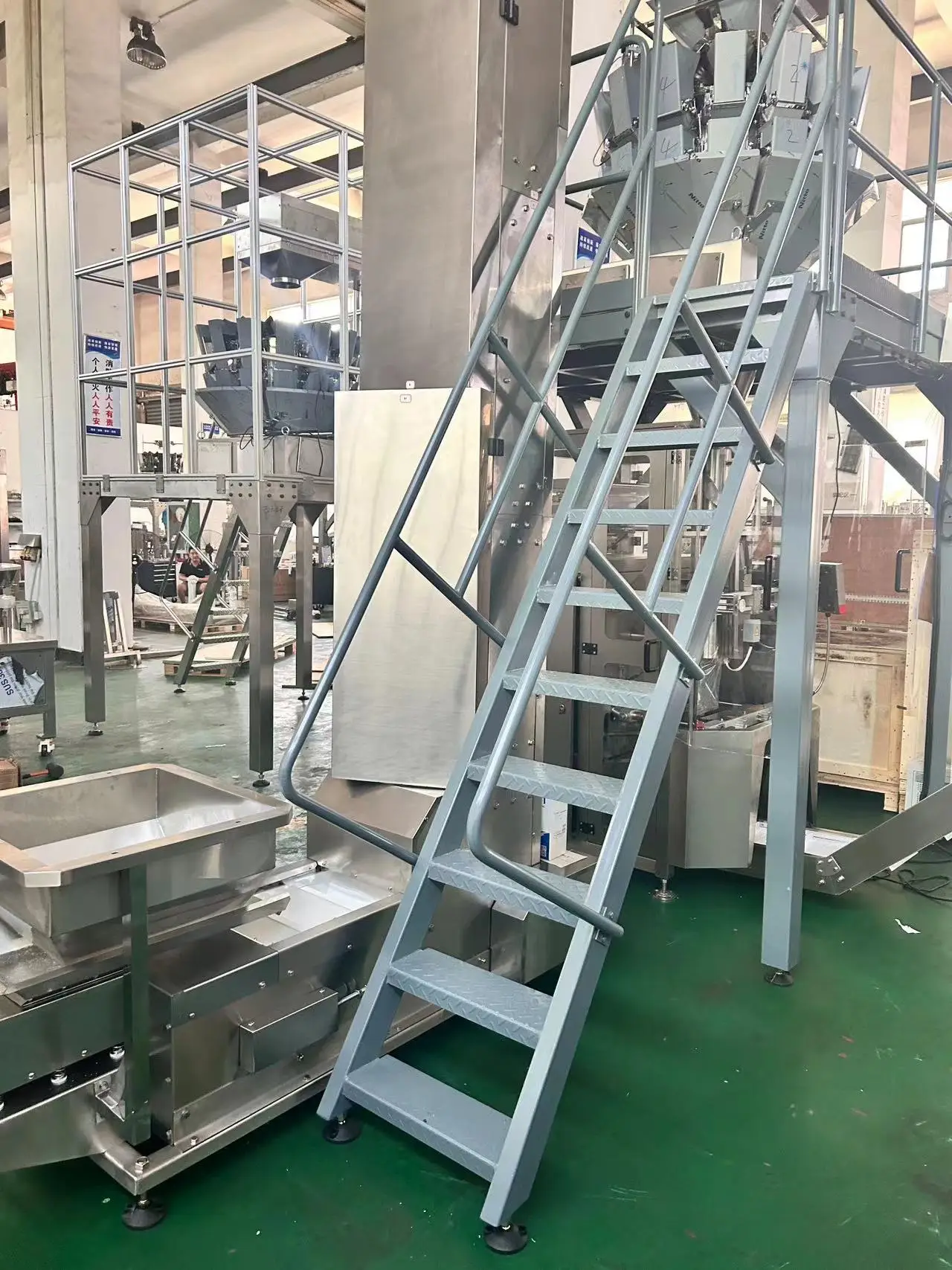

Working Platform
Stainless steel/carbon steel options Material available Thickness setting Customized size
|
Model
|
ZH-PF
|
|
supprt weight range
|
200kg-1000kg
|
|
Material
|
Stainless steel or Carbon steel
|
|
Normal Size
|
1900mm(L)*1900mm(W)*2100mm(H) Size can be customized by your demand
|

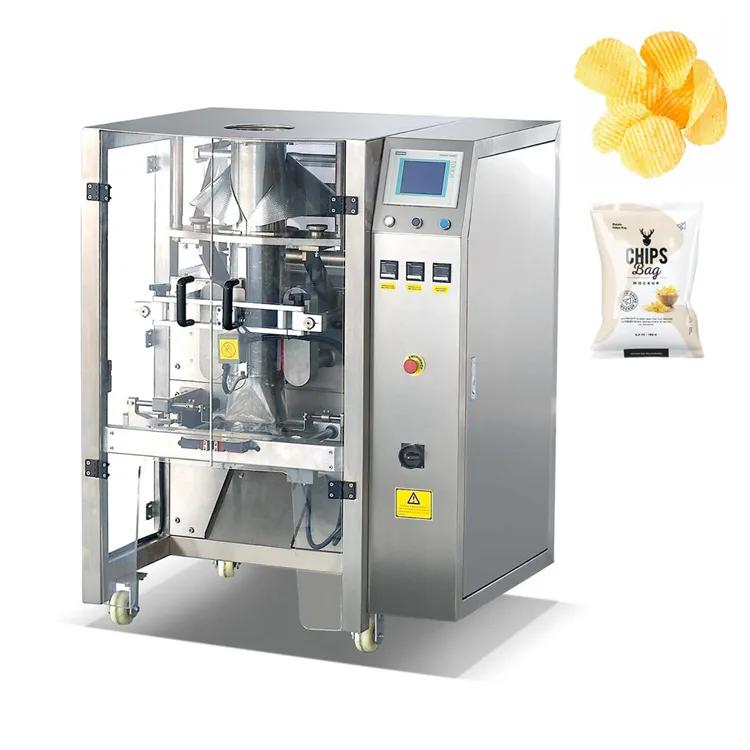

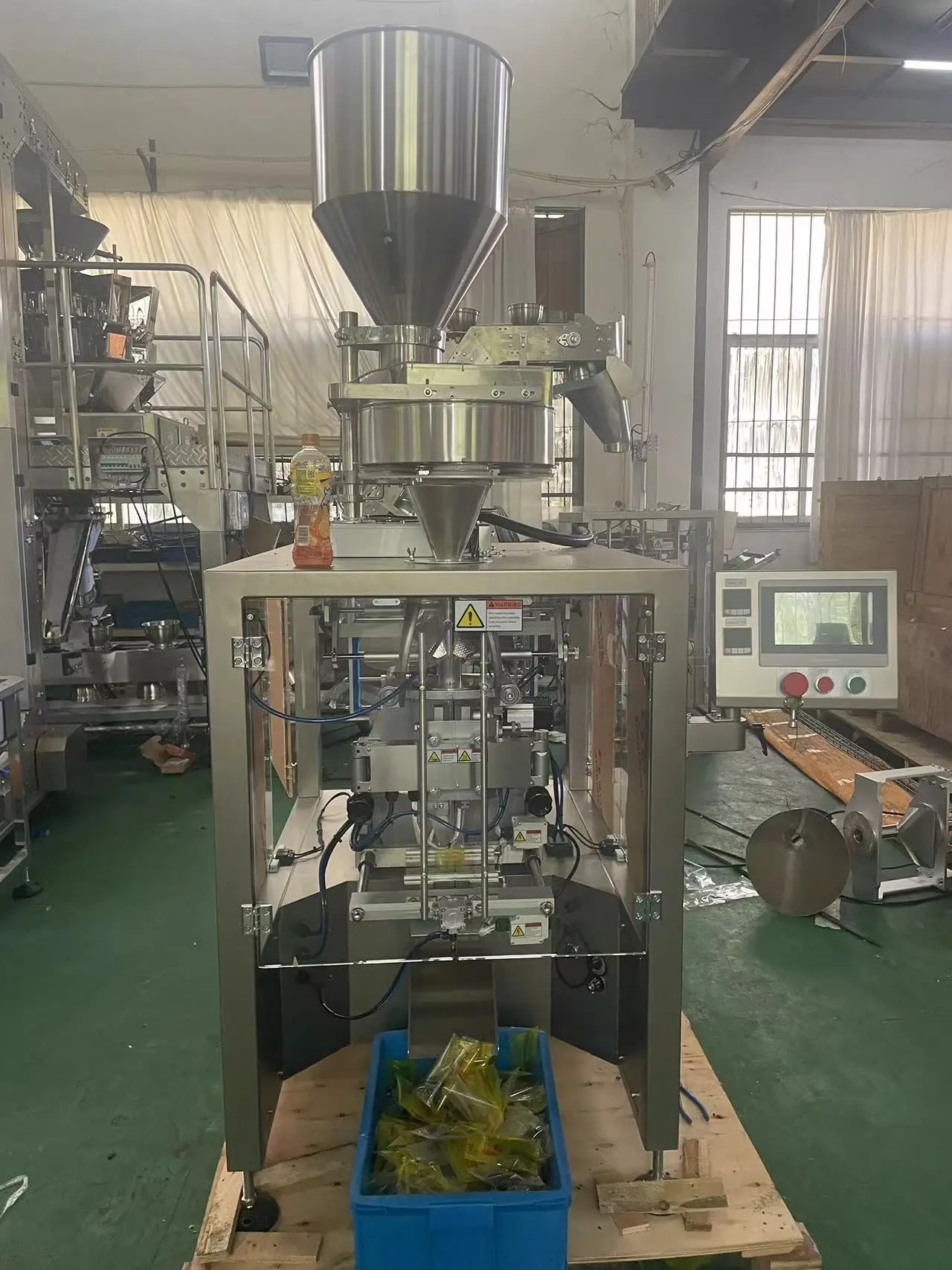

Vertical packaging machine
In order to adapt to different bag conditions, we have 320/420/520/620/720/1150models, which can accept different bag lengths and widths from customers.
Flat sealing Wide range of length and width Long service life
|
Packing speed
|
30-70 Bags / Min
|
|
Packing Accuracy
|
± 0.1-1.5g
|
|
Bag size(mm)
|
(W) 60-200 (L)60-300 for 420VFFS(W) 90-250 (L)80-350 For 520VFFS
(W) 100-300 (L)100-400 For 620VFFS (W) 120-350 (L)100-450 For 720VFFS |
|
Bag type
|
Pillow bag, standing bag (gusseted), punch, Linked bag
|
|
Range of measuring (g)
|
5000
|
|
Thickness of film (mm)
|
0.04-0.10
|
|
Packing Material
|
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET,
|
|
Power Parameter
|
220V 50/60Hz 6.5KW
|

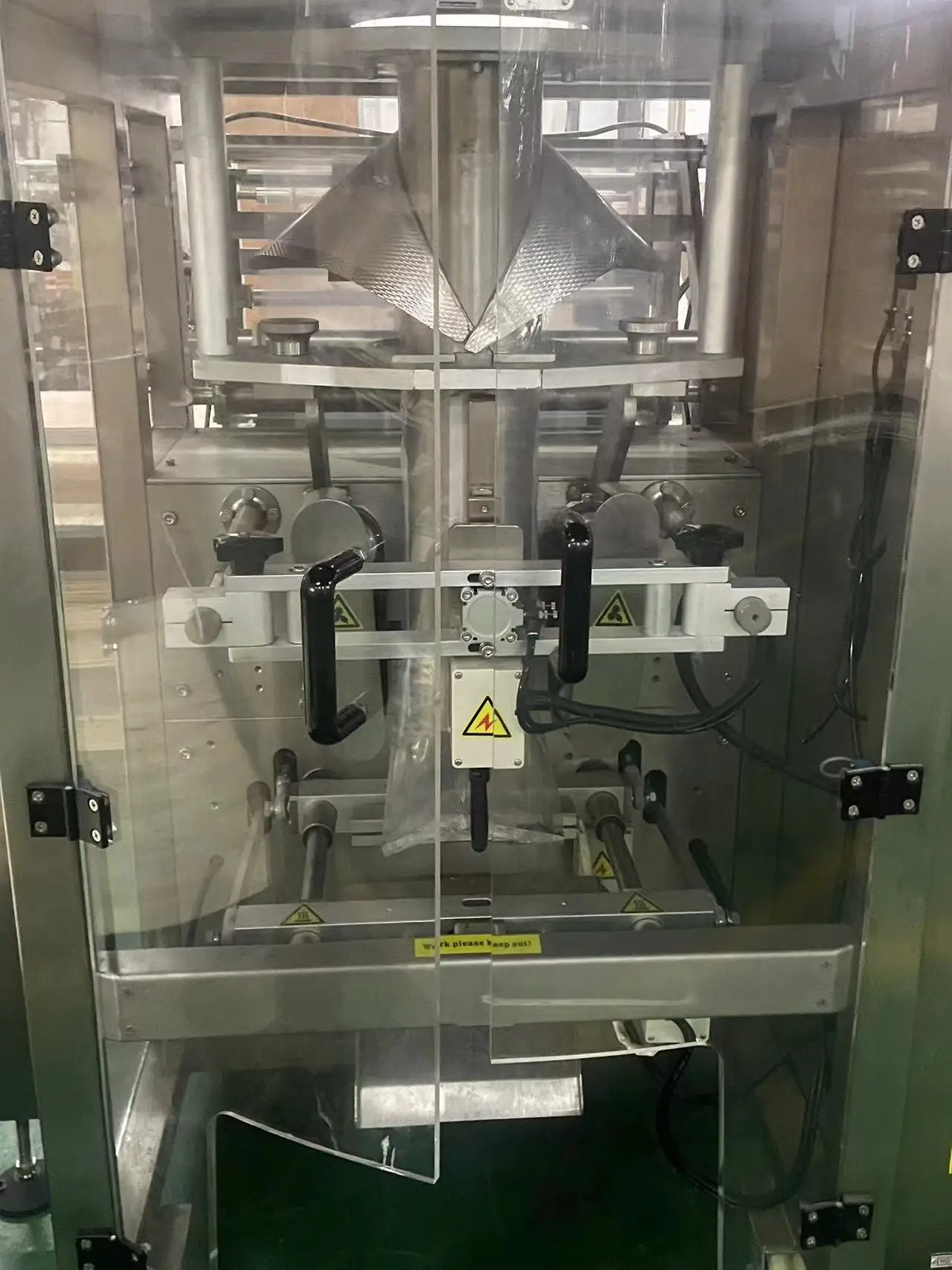

Detailed Images
1. Compact and safe structure, simple installation, operation and maintenance.
2. The machine body is made of sturdy and durable 304 stainless steel.
3. PLC touch screen, easy to set the use of language, packaging speed, bag length and so on.

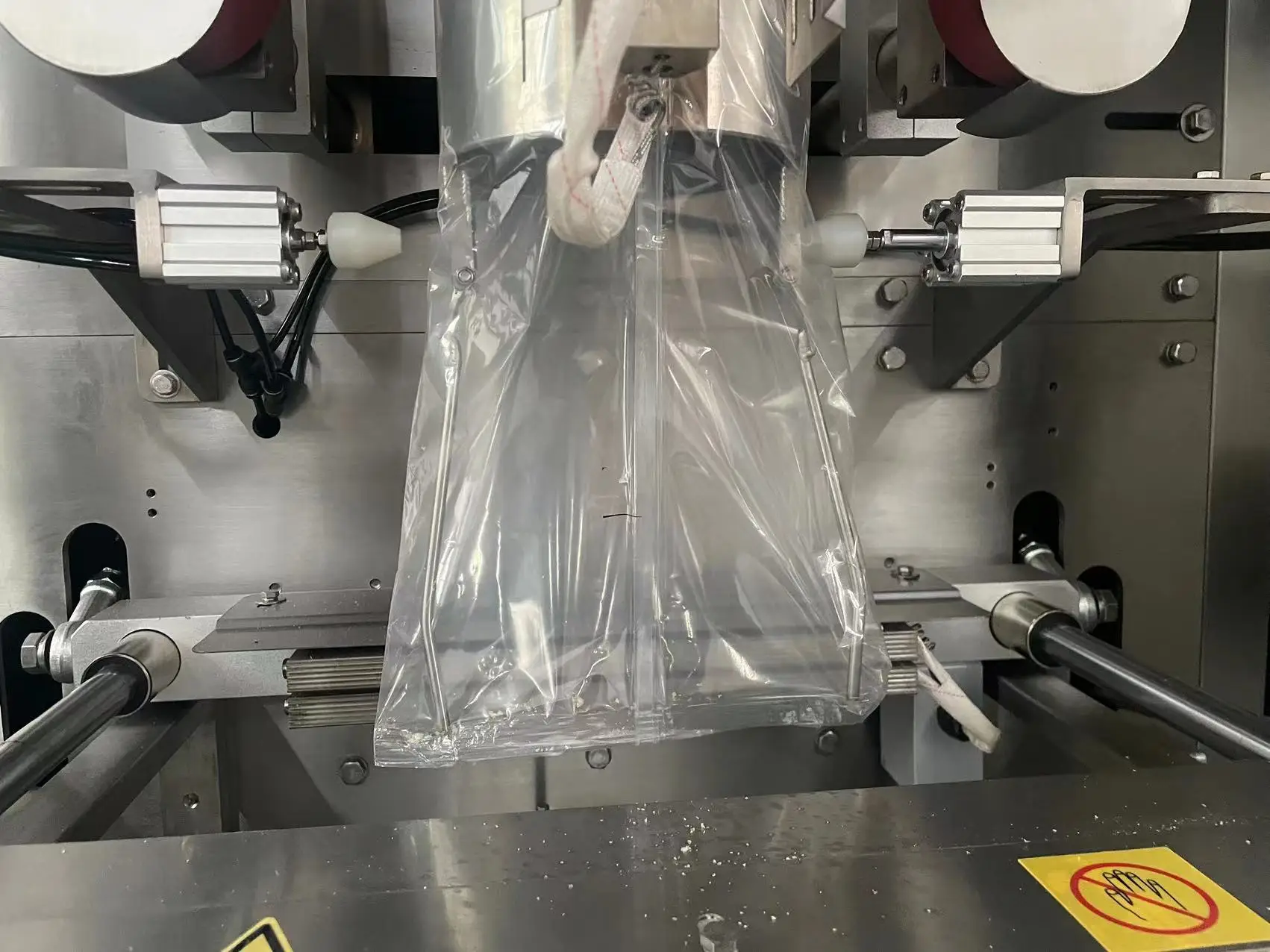

4. Servo film feeding system, precise sealing and cutting position.
5. Automatic process of filling, bag making, date printing, sealing and cutting.
6. The packaging machine adopts closed transparent glass to prevent the dust in the air from entering the internal device.
7. There are four wheels at the bottom of the machine, easy to move.
8.Provide customized service
Feed Back from customer

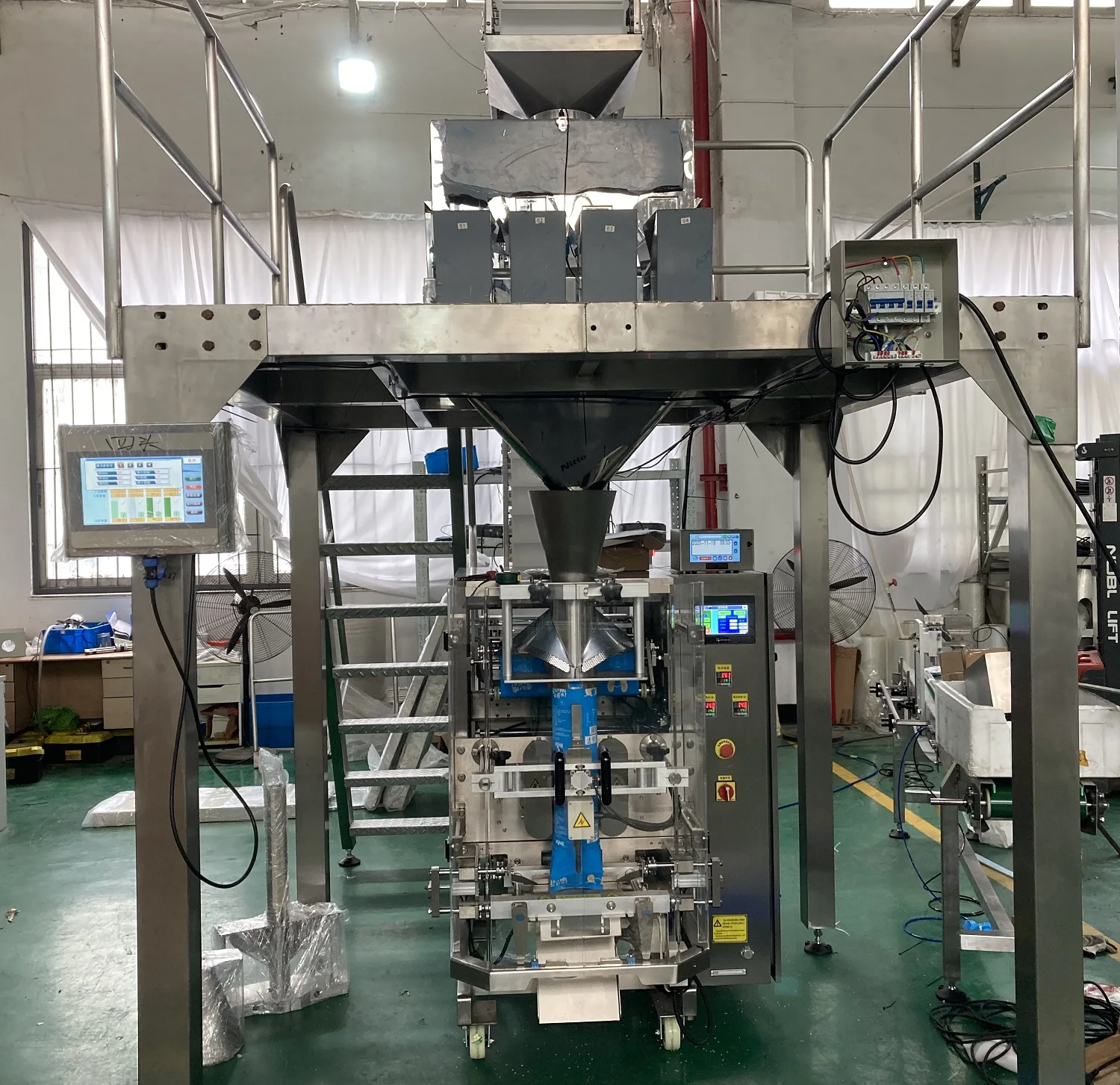

Chips Packing Machine Factory Case
Packing & Service
Pre-Sales Service:
1.Provide packing solution according requirements
2.Doing test if customers send their products
