CE Quality Good Automatic Roasted Coffee Bean VFF Vertical Packing Machine
Siemens Vertical Packaging Machine
00:06
00:44
The combination weighing vertical packaging system is an efficient packaging equipment designed for nuts, dried fruits, mixed nuts and other materials. It integrates accurate weighing and automatic packaging, and can easily meet the efficient packaging needs of 500g and 1kg nuts.
The equipment adopts advanced combination weighing technology, combined with a vertical packaging machine, which can not only improve packaging efficiency, but also ensure the accurate net content of each bag of products and exquisite appearance. Whether it is a single category of nuts or mixed packaging of multiple nuts, this system can perfectly handle it and become an ideal choice for nut processing companies to improve productivity.
Food Vertical packaging Machine For Nuts/Beans
Fully automatic conveying, weighing, packing and outputting of nuts beans grains machine running process.

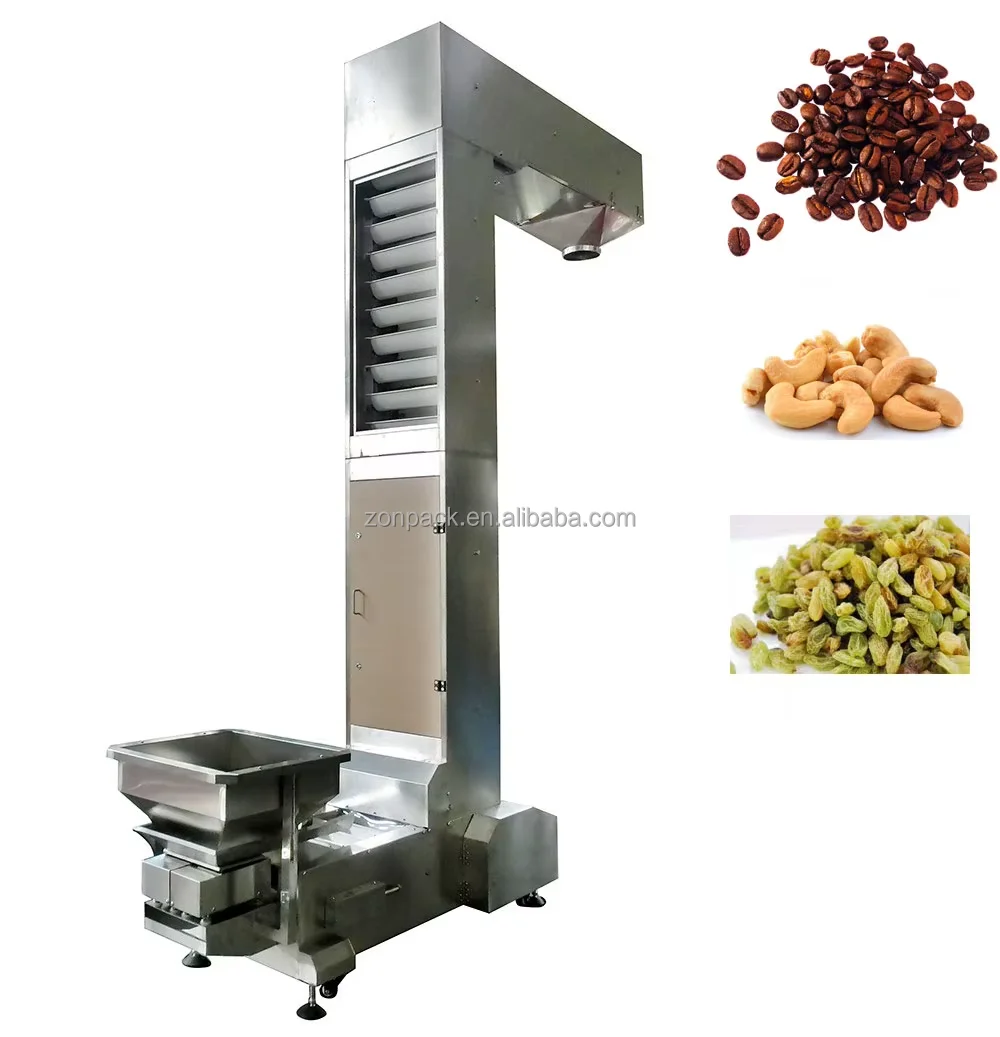

Z shape conveyor—–10/14/24 head weigher ——-working paltform——320/420/520 vertical packaging machine —-finished conveyor
Application

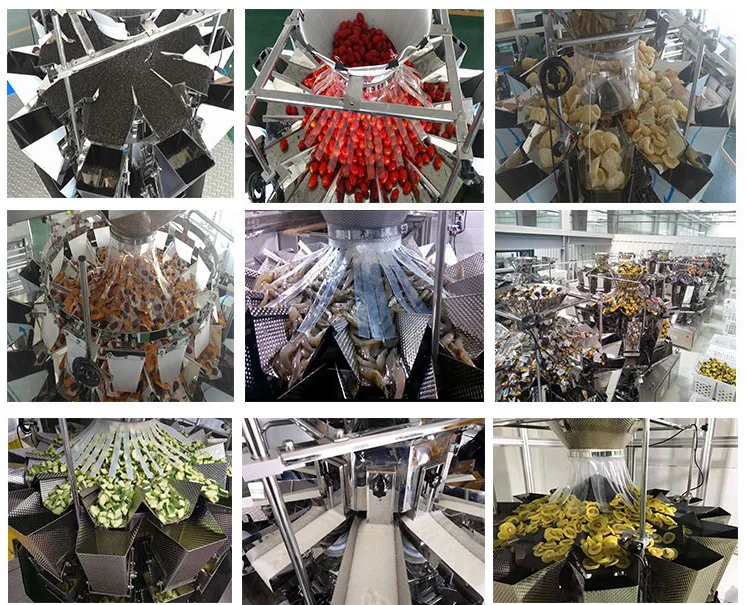

lt is suitable for packing grain, stick, slice, irregular shape products such as puffy food, snacks, candy,chocolate, nuts,pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds.frozen food,small hardware, etc.

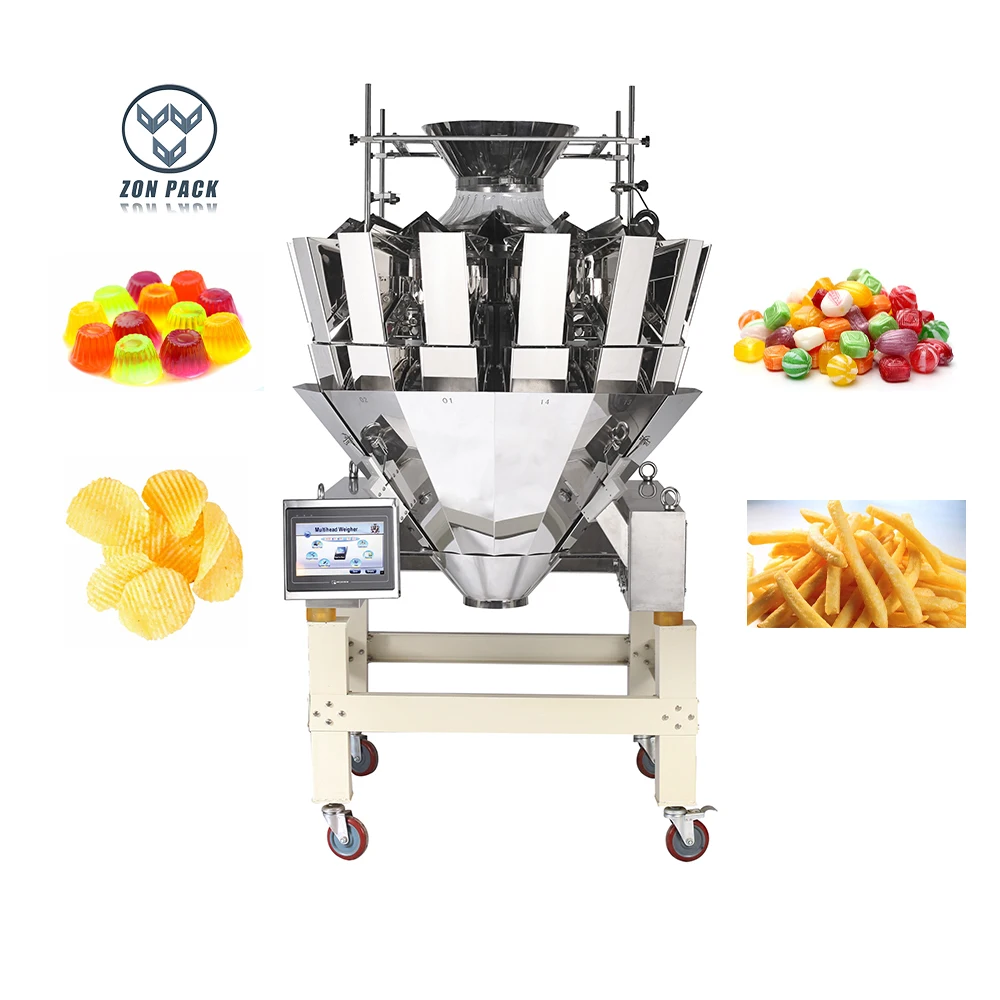

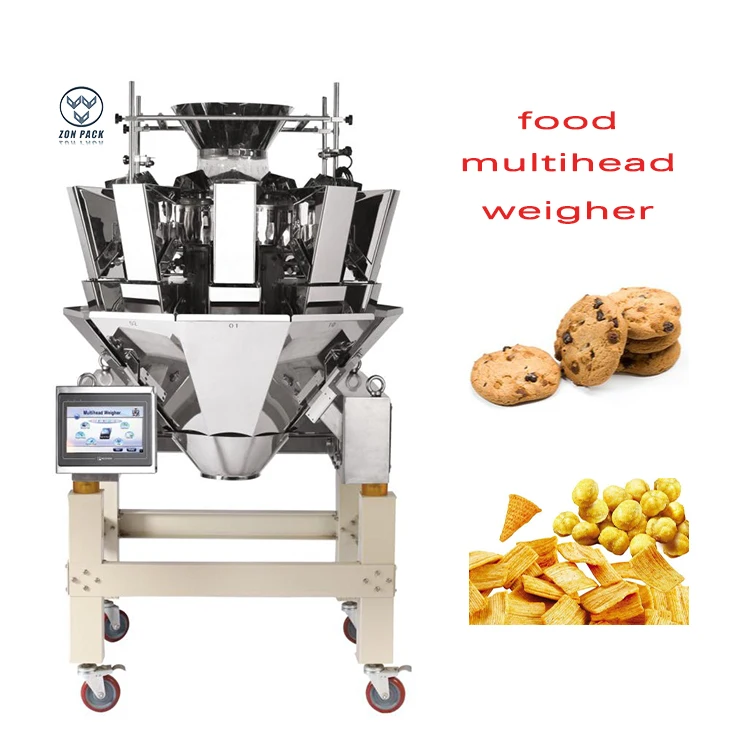

Specification
|
Model
|
ZH-A10
|
Model
|
ZH-A14
|
|
Weigher Range
|
10-2000g
|
Weigher Range
|
10-2000g
|
|
Max Weigher Speed
|
65Bags/Min
|
Max Weigher Speed
|
120 Bags/Min
|
|
Accuacy
|
+-0.1-1 .5
|
Accuacy
|
+-0.1-1.5 g
|
|
Hopper Volume
|
1.6L Or 2.5L
|
Hopper Volume
|
1.6L Or 2.5L
|
|
drive method
|
Stepper Motor
|
drive method
|
Stepper Motor
|
|
option
|
Timing Hopper/Dimple Hopper/Printer/Overweigher
ldentifier/Rotary Vibrator |
option
|
Timing Hopper/Dimple Hopper/Printer,Overweigher ldentifier/Rotary Vibrator
|
|
Interface
|
7″10HMI
|
Interface
|
7″10HMI
|
|
Power Parameter
|
220v 50/60hz
|
Power Parameter
|
220v 50/60hz
|
|
Package Volume
|
220v 50/60hz
|
Package Volume
|
1750(L)*1200(w)*1240(H)
|
|
Cross Weigher
|
400
|
Cross Weigher
|
490
|
Main Features：
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. High precise digital weighing sensor and AD module have been developed.
3. Modify hopper open speed and open angle basing on the charactertstic of measured material can prevent material blocking the hopper.
4. Multil-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper
5. Components which touch the material are all manufactured with stainless steel, Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
6.Different authority can be set for different operator, which is for easy management
7. Muti-language operation system can be selected basing on customer’ s requests.
|

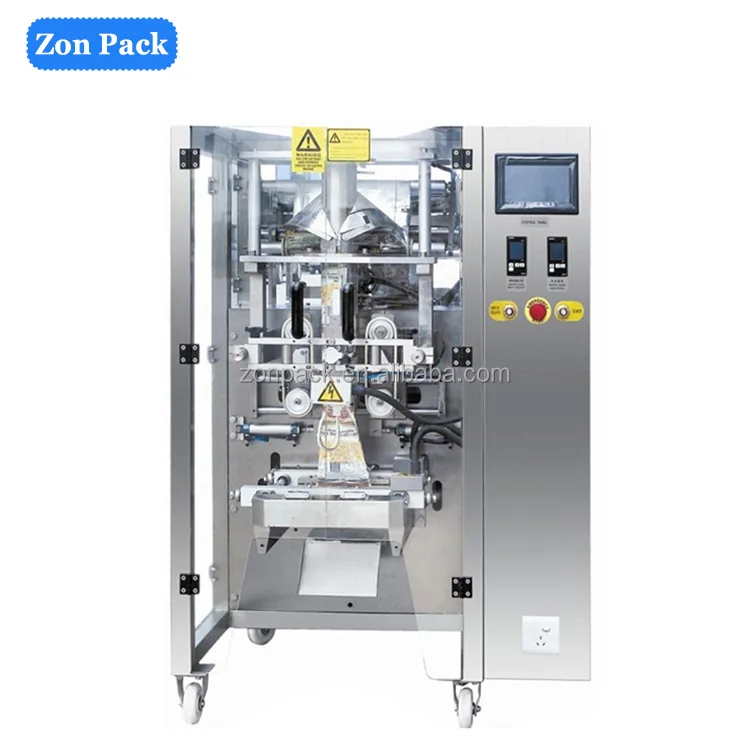

Model
|
ZH-V320
|
ZH-V420
|
ZH-V520
|
|
item
|
25-70Bags/min
|
5-70Bags/min
|
10-70Bags/min
|
|
Type
|
(W)60-150 (L)50-200
|
(W)60-200 (L)50-300
|
(W)90-250 (L)50-350
|
|
Bage Type
|
Pillow bag, standing bag (gusseted)，punching bag, Linked bag
|
||
|
Max Film Width (mm)
|
320
|
420
|
520
|
|
Film Thickness(mm)
|
0.04-0.09
|
0.04-0.09
|
0.06-0.10
|
|
Air Consumption
|
0.3m’/min 0.8MPa
|
0.5m’/min 0.8MPa
|
0.4m’/min 0.8MPa
|
|
Bag Material
|
POPP/CPP,POPPIVMCPPBOPP/PE,PET/AL/PENY/PEPET/PET
|
||
|
Power/Voltage
|
2.5KW1220V 50-60Hz
|
2.5KW1220V 50-60Hz
|
3KW/220V 50-60Hz
|
|
Dimension(mm)
|
1115(L)x 800(W)x1370(H)mm
|
1400(L)x970(L)x 1700(H)
|
1430(L)x1200(W)x1700(H)
|
|
Net Weight(kg)
|
300
|
450
|
600
|
Main Features：
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2, Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, relablilty and stability.
3, Double-belt puling with servo of high precise positioning makes film transporting system stable, servo motor from Siemensor Panasonic.
4, Perfect alarm system to make problem soled quickly.
5. Adopting intellectual temperature controler, the temperature is controlled to ensure neat sealing.
Case Show
To European countries
Nuts, soya beans, 500g-1kg.
z shape conveyor+10head weigher+working platform+vertical packaging machine
To South American countries
rice, 200g-1kg.
z shape conveyor+4 head linear weigher+working platform+vertical packaging machine
