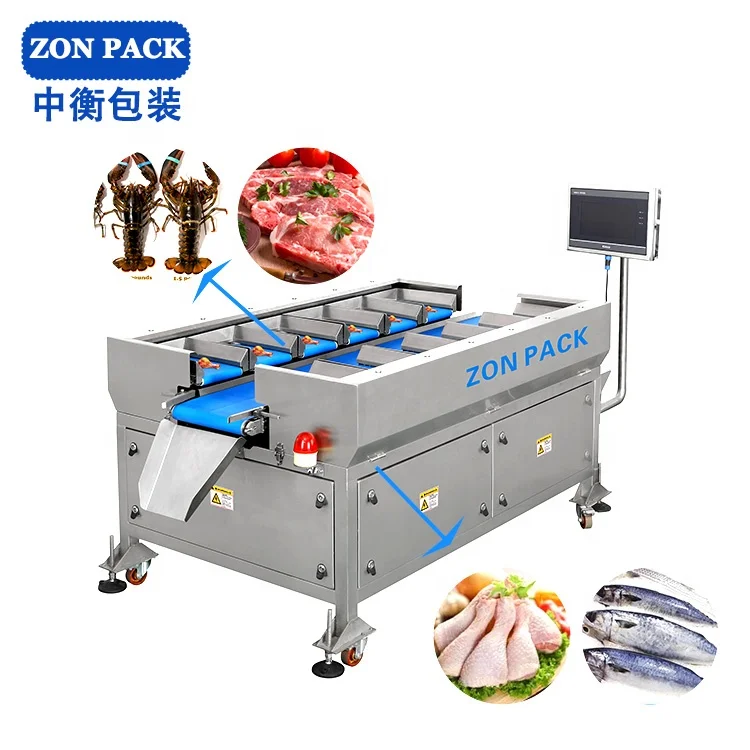

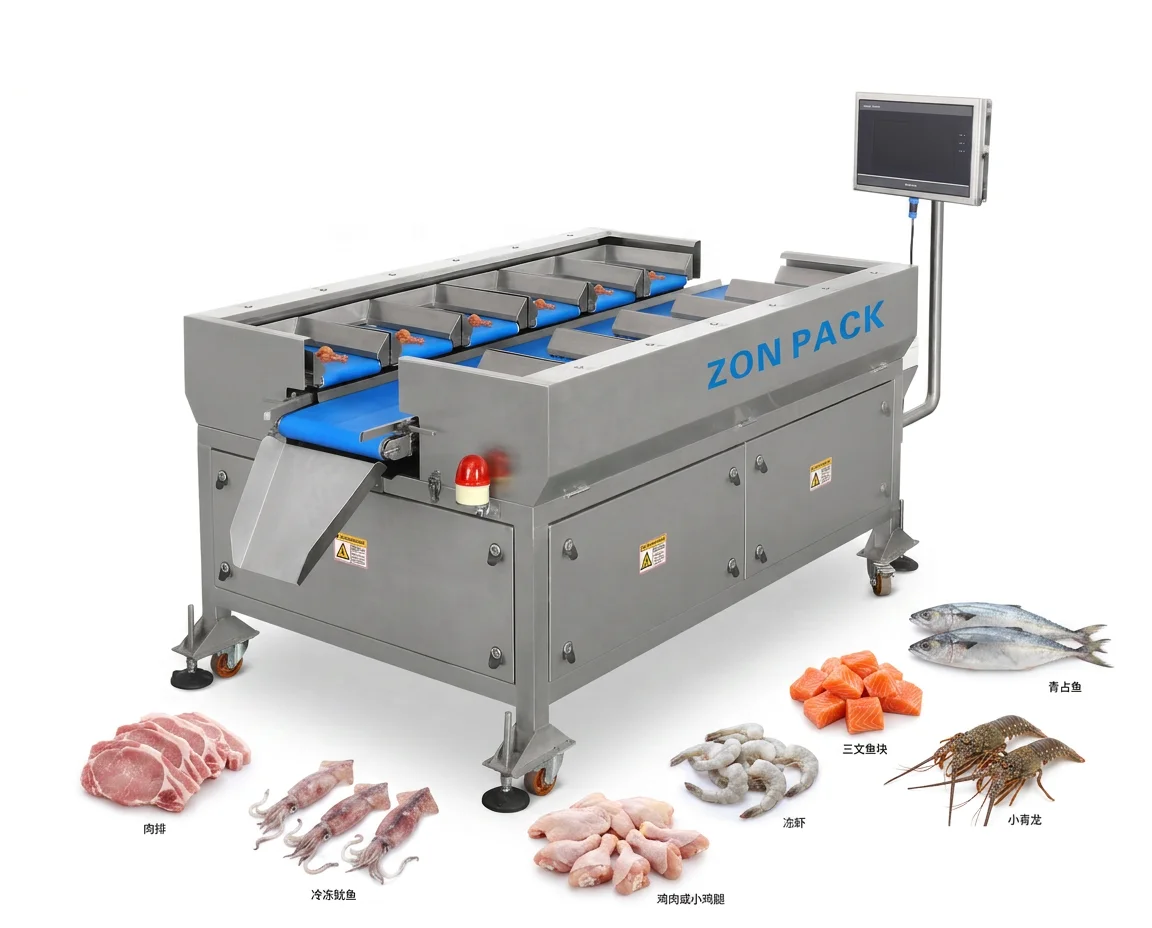

Belt Conveyor Weighing Scale Multihead Combination Weigher for Frozen or Fresh Fish/Meat/Lobster
Products Description
|
Main Technical Parameter
|
||
|
Model
|
ZH-AT10
|
ZH-AT12
|
|
Packing Speed
|
10-30 Times/Min
|
|
|
0Accuracy
|
0.1g-5g
|
|
|
Number Of Scales
|
10
|
14
|
|
Platform Size
|
215mm(L)x155mm(W)
|
225(L)x125mm(W)
|
|
Machine Size
|
1000mm(L)x575mm(W)x570mm(H)
|
1200mm(L)x695mm(W)x570mm(H)
|
|
Weighting Range
|
1500g
|
|
|
Protection Frade
|
IP 65
|
|
Manual feeding, equipment reads the weight of each independent belt tray, PLC automatically calculates, selects multiple sets of tray combinations, superimposes weights infinitely close to the set target weight, completes quantitative balancing, and solves the pain point of large irregular materials that cannot be directly weighed with ordinary multi head combination scales.
1.Main functions and functions 1: Target weight balancing and weighting Manual feeding, equipment reads the weight of each independent belt tray, PLC automatically calculates, selects multiple sets of tray combinations, superimposes weights infinitely close to the set target weight, completes quantitative balancing, and solves the pain point of large irregular materials that cannot be directly weighed with ordinary multi head combination scales. 2: Automatic cutting output The selected tray belt automatically rotates, and the materials are uniformly dropped onto the middle discharge belt and transported to the rear packaging host; Unchecked tray material retention, participate in the next round of weight distribution cycle to reduce material waste. 3: Formula storage and parameter management The touch screen stores multiple sets of product formulas, which can be set with target weight, allowable error, and the number of trays involved in the combination. When changing products, the formulas can be directly called. 4: Data statistics function Count the total output, number of packages, average weight, and over tolerance alarms, and record production data. 5: Fault alarm Sensor abnormality and out of tolerance prompt; Unqualified combinations will not be output to avoid the outflow of unqualified packaging. 6: Docking with backend devices It can be directly connected to bag packaging machines, vertical packaging machines, and vacuum packaging machines to achieve online production of weighing and packaging; It can also be used as a standalone machine, manually bagging, boxing, or boxing materials. Core function: Replace manual repeated weighing to gather weight. Large, fragile, and irregular materials are prone to breakage and jamming with ordinary vibrating multi head scales, while manual weighing with conveyor belts ensures that materials are not affected by vibration and reduce crushing losses.
Function and Application:
Manual Semi-automatic combination weighing Scale is used to dynamically test the weigh of the product with measuring range of less than 10 kilogram on-line. With the high sensitive weighing sensor, advanced information processing software of dynamic weight and a variety of software, electronic and machine options, Combination Multihead Weigher can be used for Fresh frozen meat/shrimp/fish/chicken/beef/fruits/vegetable.ect food weighing
It will help you increase the weighing speed and save material cost and labor cost ✅ Suitable for: large, strip-shaped, whole fruit, irregular, fragile, high viscosity, large frozen fresh materials 1. Frozen fruits and vegetables: whole frozen fruits, large frozen vegetable chunks, frozen mango chunks, half fruits and vegetables, large IQF fruits and vegetables; 2. Meat and seafood: Meat chunks, steak, fish chunks, prawns, scallops, frozen seafood; 3. Prefabricated vegetable ingredients: pickles, Pickled vegetables, large pieces of cooked food, and brine products; 4. Other: Hard fruits, whole fruits, gift box fruits and vegetables, irregular leisure large pieces of food. ❌ Not suitable for: small particles, powders, and small particles with good flowability (this type is preferred for ordinary multi head combination scales, which have higher efficiency).
