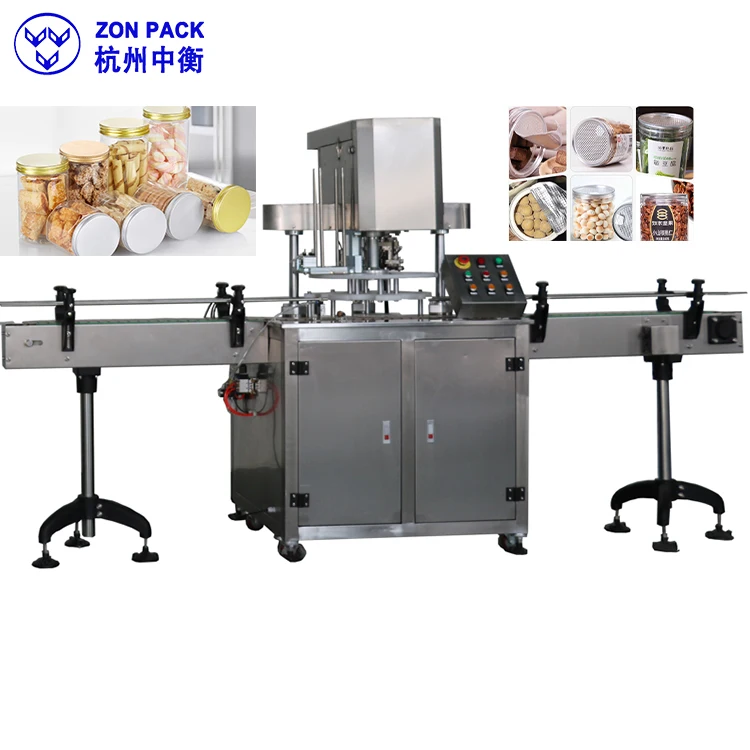

Automatic Jar Heating Sealing Machine Roller Film Cutting Sealing Machine for Jars
Product Description
The aluminum film jar sealing machine is an efficient and stable sealing equipment specially used for aluminum film sealing, and is widely used in food, beverage, medicine, chemical and other industries.
The equipment adopts advanced heat sealing or induction sealing technology to ensure a firm seal, moisture-proof and leak-proof, and improve the shelf life of the product.
Working Priciple
This machine uses electromagnetic induction heating or heat sealing technology, using high-frequency electromagnetic fields or heating elements to quickly heat up the aluminum foil and bond it to the bottle or can mouth to form a firm seal.
The entire sealing process is contact-free and pollution-free, ensuring packaging safety while ensuring that the seal is uniform, smooth and wrinkle-free.
Application
This equipment is suitable for aluminum film sealing in various industries, including but not limited to: ✅ Food industry: milk powder cans, nut cans, honey cans, coffee powder cans, etc. ✅ Beverage industry: protein powder cans, sports drink cans, etc. ✅ Pharmaceutical industry: health care product cans, Chinese medicine powder cans, etc. ✅ Chemical industry: pesticide, paint, lubricant oil cans, etc. Suitable for PET, PP, glass, PE and other material cans, with strong compatibility, and can adjust the sealing parameters according to different needs.
Mainly Features
1. Four sealing wheels are installed symmetrically, two of which are used to roll the edge, and the other two are used to hold the edge. The principle is simple, easy to adjust, and the force is balanced；
2. Adopt the latest generation of mechanical design,sealing process of the tank body does not rotate, only the sealing hob
rotation seal, reliable and safe, especially suitable for fragile products and liquid products can seal packaging；
2. Adopt the latest generation of mechanical design,sealing process of the tank body does not rotate, only the sealing hob
rotation seal, reliable and safe, especially suitable for fragile products and liquid products can seal packaging；
3. The hob and pressing head are made of Cr12 die steel, durable and good sealing performance；4. Automatic detection has the lower cover of the bottle, no cover and no seal, the cover is not enough for alarm, the circuit
control design is reasonable and safe。
control design is reasonable and safe。
Specification
|
Model
|
ZH-FGE
|
|
Filling and sealing speed
|
30 -40 Cans/min
|
|
Height of filling and sealing
|
40-200mm
|
|
Bottle diameter
|
35-100mm
|
|
Type of Bag Making
|
4
(2 first knives, 2 second knives)） |
|
Working temperature
|
Below zero 5~45℃
|
|
Air Consumption
|
05-0.8Mpa
|
|
Power Parameter
|
220V 50HZ 1.3KW
|
|
Dimension(mm)
|
3000(L)*1000(W)*1800(H)
|
|
Net Weight
|
500kg
|
