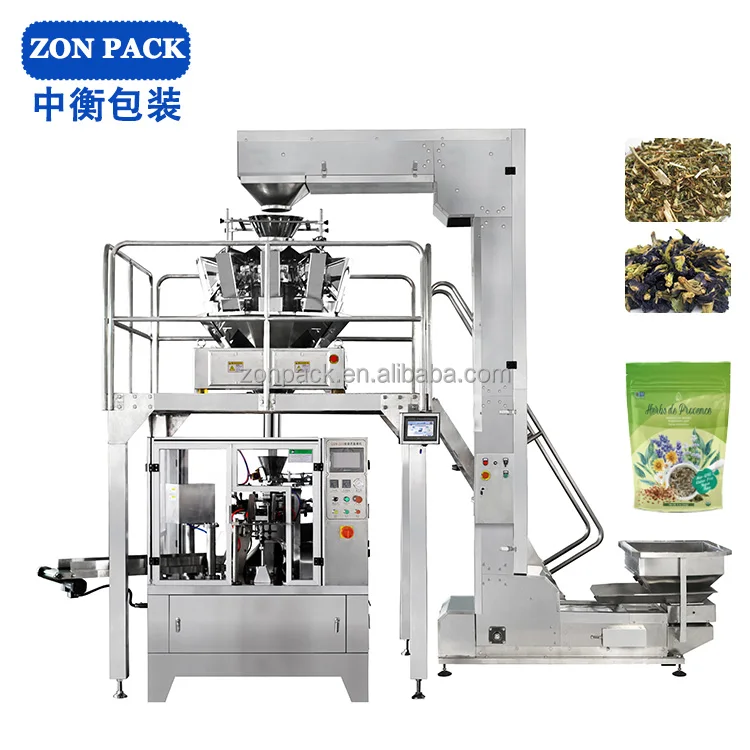

Automatic Garlic Doypack Packing Machine with Multihead Weigher
|
Technical Specification
|
||||
|
Model
|
ZH-GD
|
ZH-GDL
|
||
|
Working Position
|
Six Positions
|
Eight Positions
|
||
|
Common Bag Size
|
(ZH-GD8-150) W:70-150mm L:75-300mm
|
(ZH-GDL8-200) W:70-200mm L:130-380mm
|
||
|
(ZH-GD8-200) W:100-200mm L:130-350mm
|
(ZH-GDL8-250) W:100-250mm L:150-380mm
|
|||
|
(ZH-GD6-250) W:150-250mm L:150-430mm
|
(ZH-GDL8-300) W:160-330mm L:150-380mm
|
|||
|
(ZH-GD6-300) W:200-300mm L:150-450mm
|
||||
|
Zipper Bag Size
|
(ZH-GD8-200) W:120-200mm L:130-350mm
|
(ZH-GDL8-200) W:120-200mm L:130-380mm
|
||
|
(ZH-GD6-250) W:160-250mm L:150-430mm
|
(ZH-GDL8-250) W:120-230mm L:150-380mm
|
|||
|
(ZH-GD6-300) W:200-300mm L:150-450mm
|
(ZH-GDL8-300) W:170-270mm L:150-380mm
|
|||
|
Weight Range
|
≤1 kg
|
1-3 kg
|
||
|
Max Packing Speed
|
50 Bags/min
|
50 Bags/min
|
||
|
Net Weight(kg)
|
1200 Kg
|
1130Kg
|
||
|
Pouch Materials
|
PE PP Laminated Film,Etc
|
|||
|
Powder Parameter
|
380V 50/60Hz 4000W
|
|||

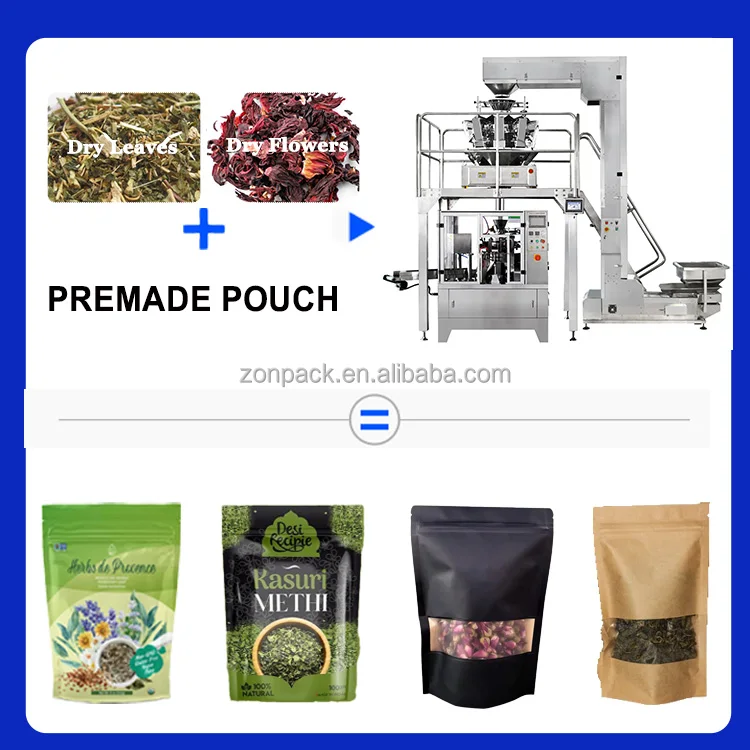

Application and Package Type:
Function:The Machine can automatically complete the weighing of freeze-dried fruits,grains ,granules,vegetable salad,dehydrated vegetables,sunflowers seeds,loose tea,leaves,herbs,hemp flowers, chrysanthemum, Hibiscus flower,particles,wood pellets.
Package Bags Type:Flat Pouch,Stand Up Pouch,Stand Up Pouch With Zipper,Quad Seal Bag,Doypack Pouch,Ziplock Bag,etc.For other types of package bags, please contact customer service for consultation Optional Device:Bucket Elevator Conveyor,Multihead Weigher,Auger Filler,Screw Conveyor,Food Check Weigher,Food Metal Detector,Conveyor Belt,Working Platforms For Supporting Multihead Weigher,etc
Product Details

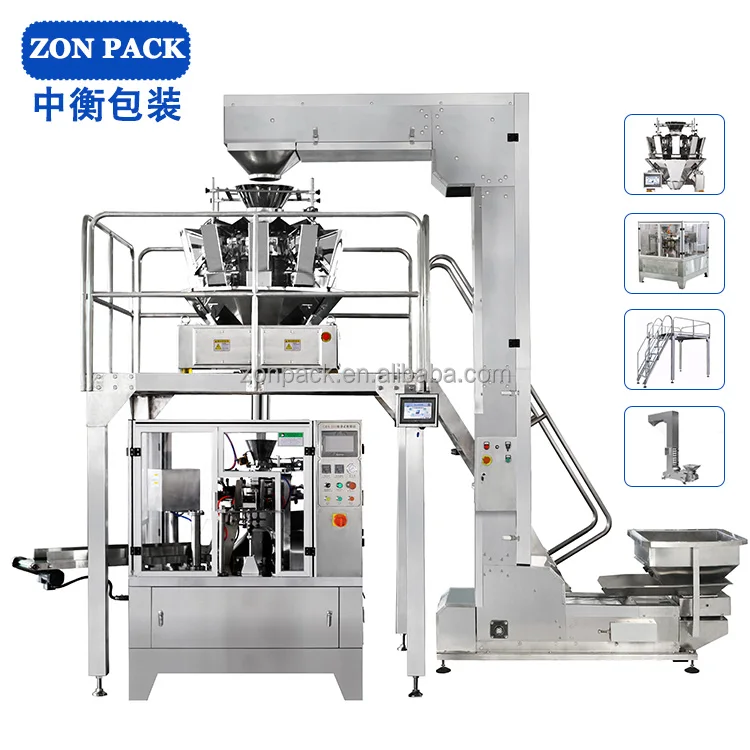

Technical Feature
1.Z Shape bucket elevator / incline conveyor :Raise material to multi weigher which controls the start and stop of the hoister
2.multihead weigher:10/14/20 heads weighing machine for weighing target weight
3.Platform:Support the multi weigher

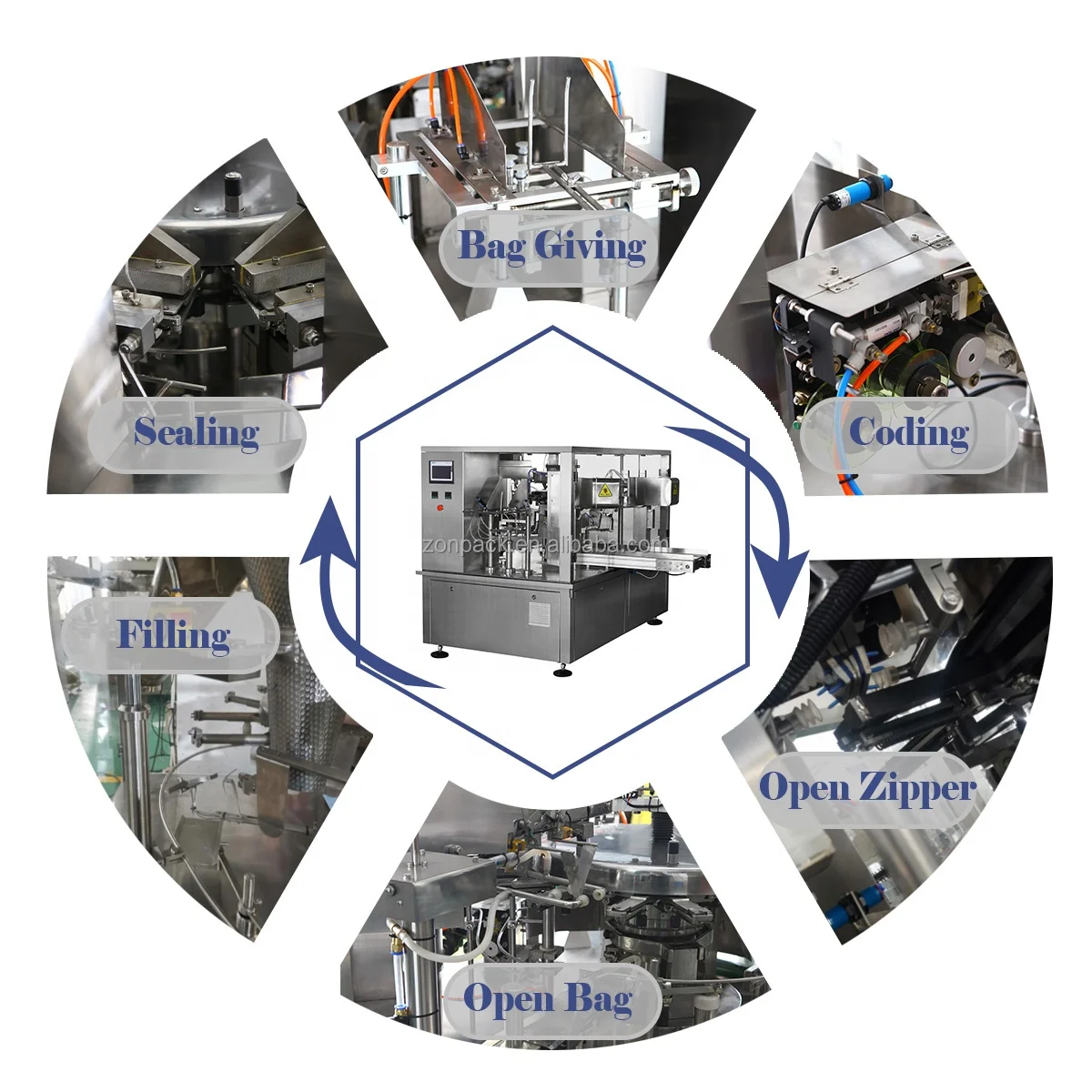

4.Rotray packing machine:It is for packing pre-made pouch,including get bag,print date,open zipper bag,filling from multihead weigher,option position,hot sealing and cold sealing
2.multihead weigher:10/14/20 heads weighing machine for weighing target weight
3.Platform:Support the multi weigher
4.Rotray packing machine:It is for packing pre-made pouch,including get bag,print date,open zipper bag,filling from multihead weigher,option position,hot sealing and cold sealing

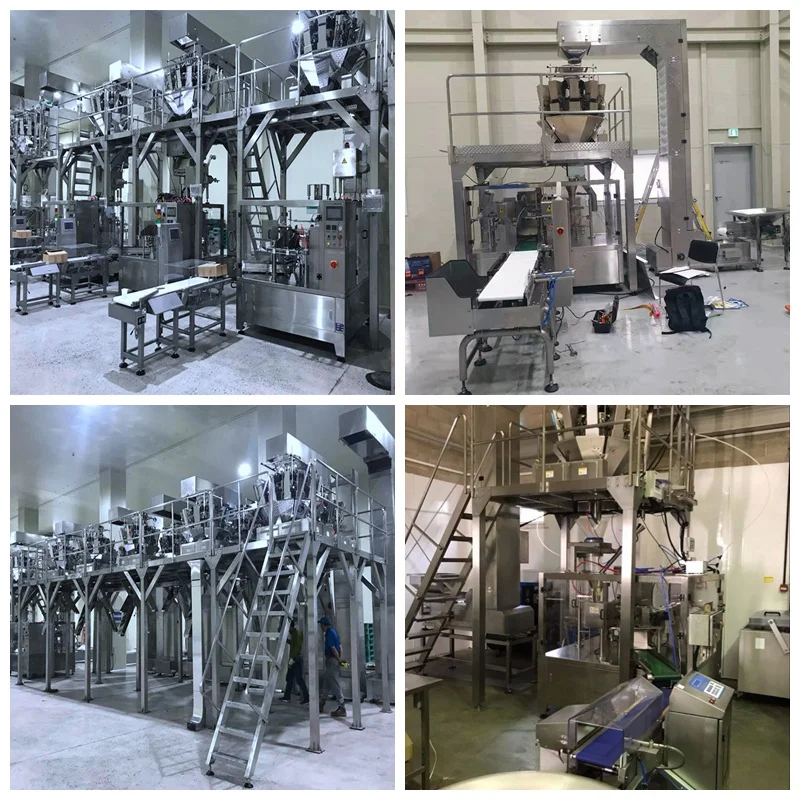

Case Show
ZH-BG10
flat pouch, zipper bag,stand up bag
