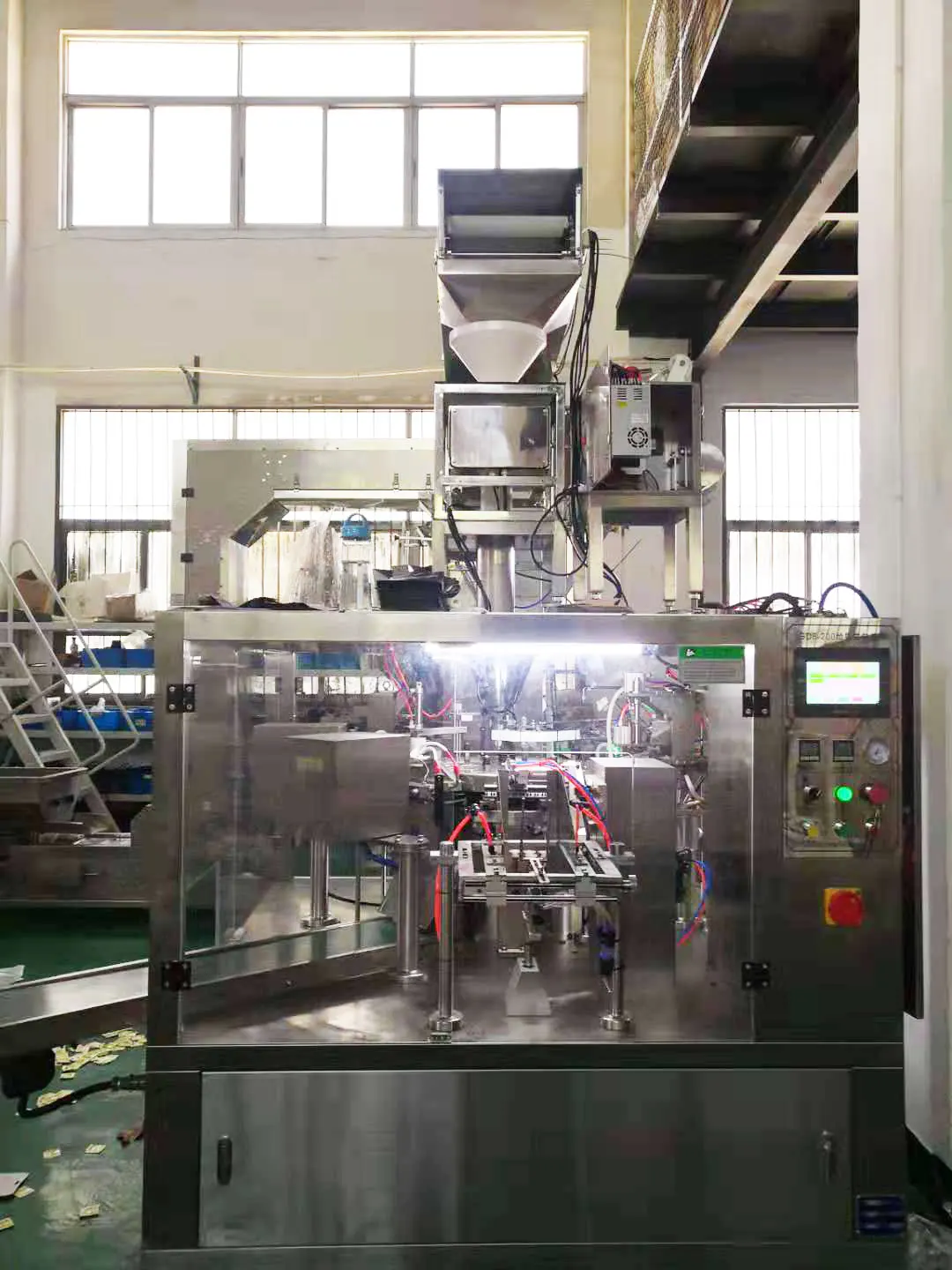

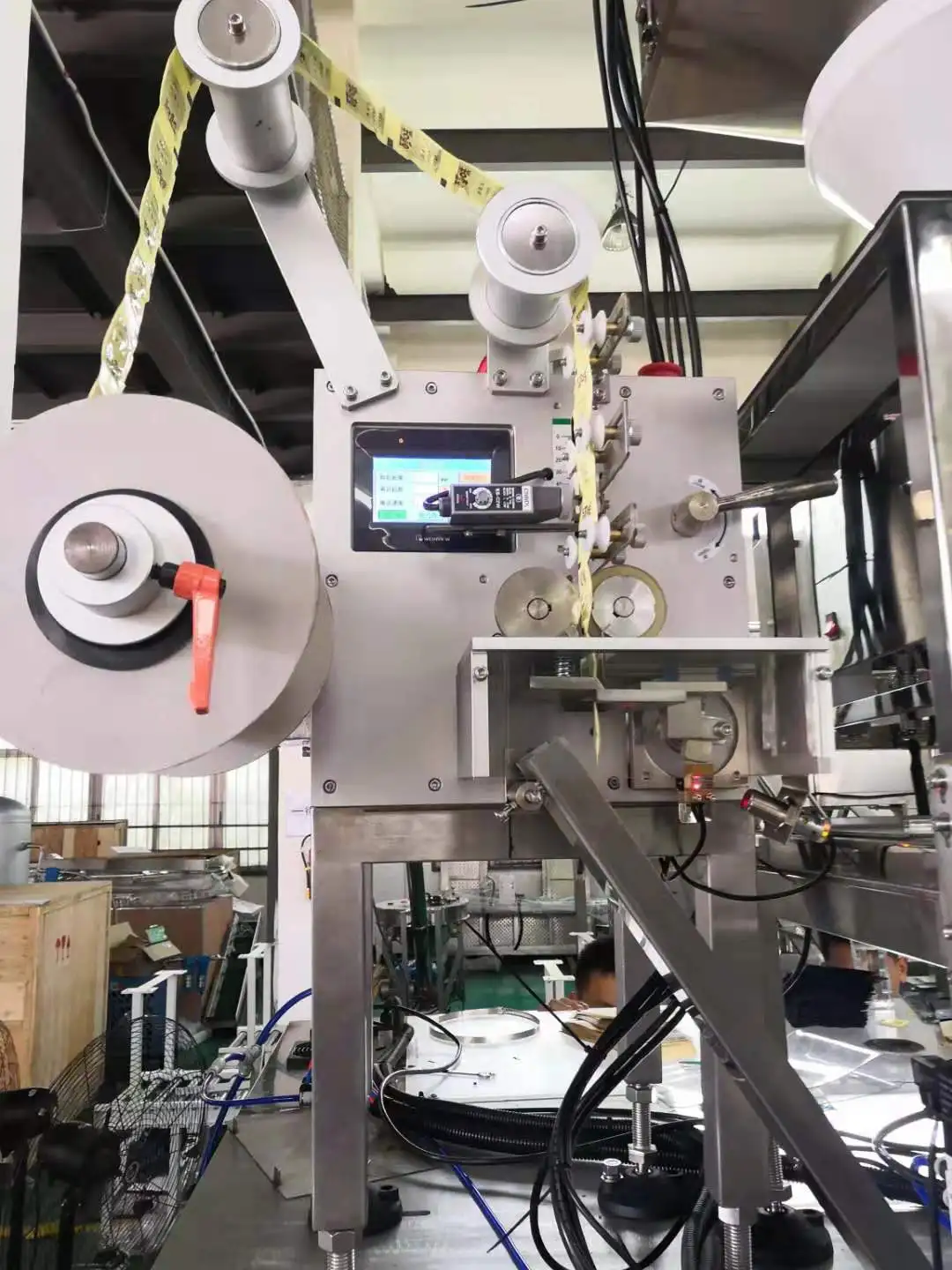

Automatic Desiccant Oxygen Absorber Filling and Inserting Feeding Machine
Application
ZH-P100 is developed for continuously cutting and deliver oxygen absorber, antistaling agent , drying agent to packing bag. It is suitable for working with automatic packing system.
|
Technical Feature
|
||||
|
1. Adopting PLC and Touch screen from Tai Wan to make system run stable and operating easy.
|
||||
|
2. Special design for make bag shape flat and easy to sense the mark and cut.
|
||||
|
3. Measuring the length of bag automatically to make label sensor easy to tune.
|
||||
|
4. Long life knife with high strength material
|
|
Technical Specification
|
||||
|
Model
|
ZH-P100
|
|||
|
Cutting Speed
|
0-150 Bag/min
|
|||
|
Bag Length
|
20-80 mm
|
|||
|
Bag Width
|
20-60 mm
|
|||
|
Driver Method
|
Stepper motor
|
|||
|
Interface
|
5.4″HMI
|
|||
|
Power Parameter
|
220V 50/60Hz 300W
|
|||
|
Package Volume (mm)
|
800 (L)×700 (W)×1350(H)
|
|||
|
Gross Weight(Kg)
|
80
|
|||
More Details About Machine
Touch screen:
Brand:Weinview
Original: Taiwan
Famous brand in the world.

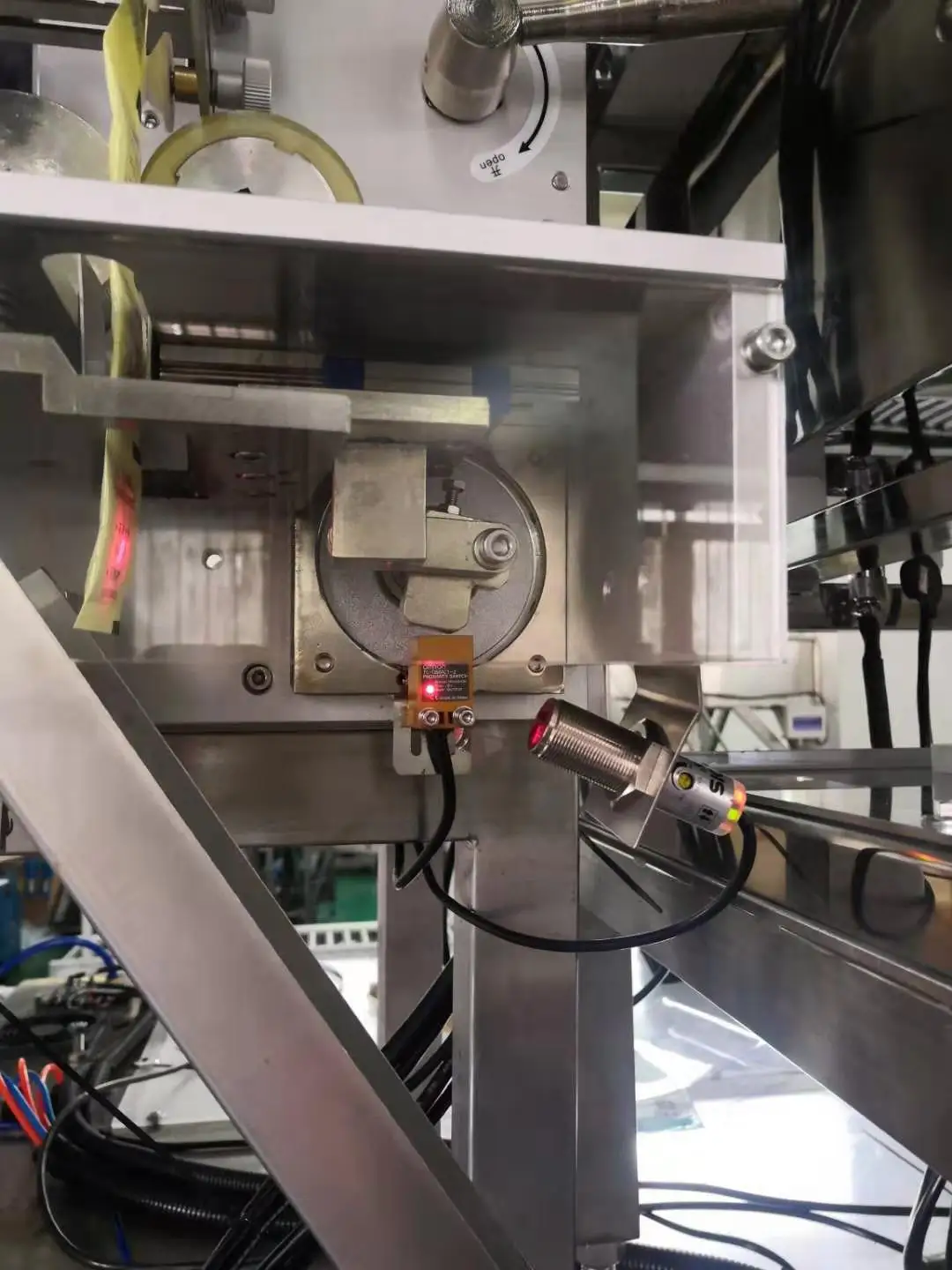

Photo sensor:
It has extremely high sensitivity.
