Automatic 20 Heads 32 Heads Dehydrated Fruits Vegetable Multihead Weigher


  • Name:

    32 heads multihead weigher

  • :

  • Details

    Application and Function:
    Function:

    Automatic Combination Weigher Multihead Scales can quantitatively weigh various materials and can generally be used in
    combination with vertical packaging machines, rotary doypack bag packaging machines, and filling packing machines.

    Application Materials:
    It is widely used for grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta,melon seeds, roasted seeds, peanuts, nuts,pistachios, almonds, cashews, nuts, coffee bean, raisins,plum, cereals,popcorn,fresh frozen french fries,biscuits,noodles,snacks,potato chips,puff food,shrimp,fish,seafood,meat ball,dumplings,vegetable and fruits,freeze dried fruits,vegetable salad,etc product.
                                                                Technical Specification
    Model
    ZH-A20
    Weighing Range
    10-2000g
    Max Packing Speed
    65*2 Bags/min
    Mixing Method
    2 Types*10 heads
    Accuracy
    ±0.1-1.5g
    Hopper Volume(l)
    0.5L/1.6L/2.5L
    Driver Method
    Step Motor
    Interface
    10‘’ HMI
    Power Parameter
    220V 50/60Hz 2000W
    Gross Weight(Kg)
    880KG
    Technical Features
    1) The amplitude of vibrator can be auto-modified for more efficient weighing.

    2) High precise digital weighing sensor and AD module have been developed.
    3) Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
    4) Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
    5) Multi-language operation system can be selected basing on customer’s requests. Can be used together with
    vertical bag making and packaging machines, rotary doypack packing machine and filling machines During the warranty period, you can contact us to replace or purchase parts for the multi-head weigher equipment.
    Machine Details

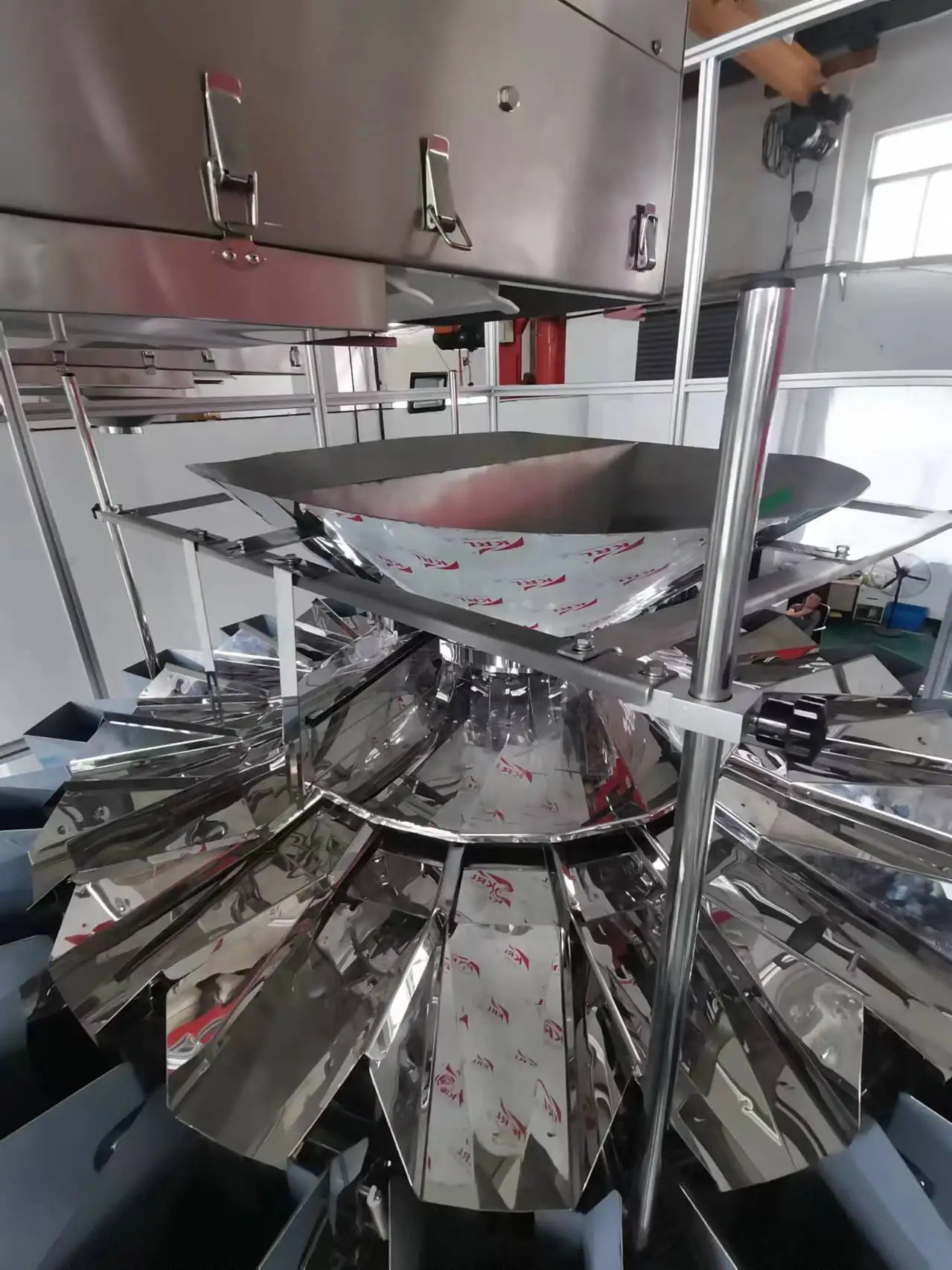

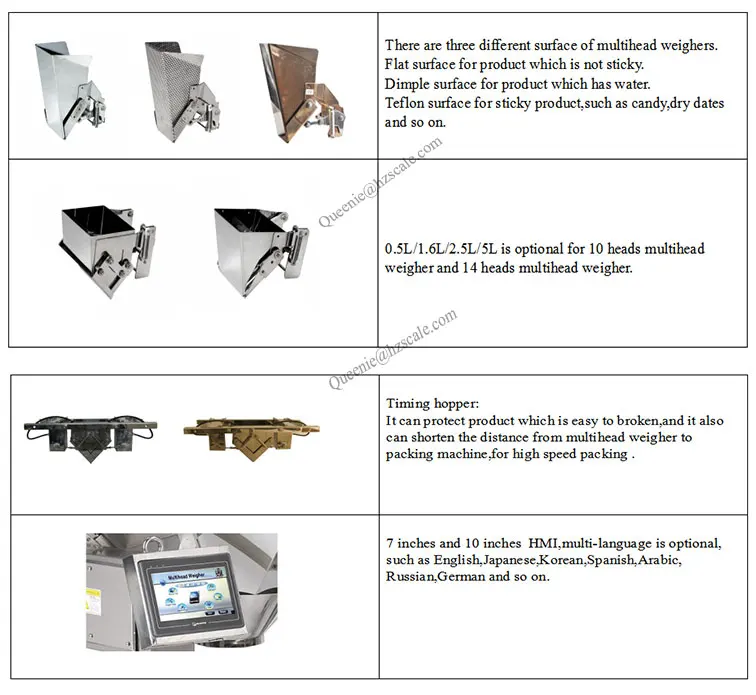

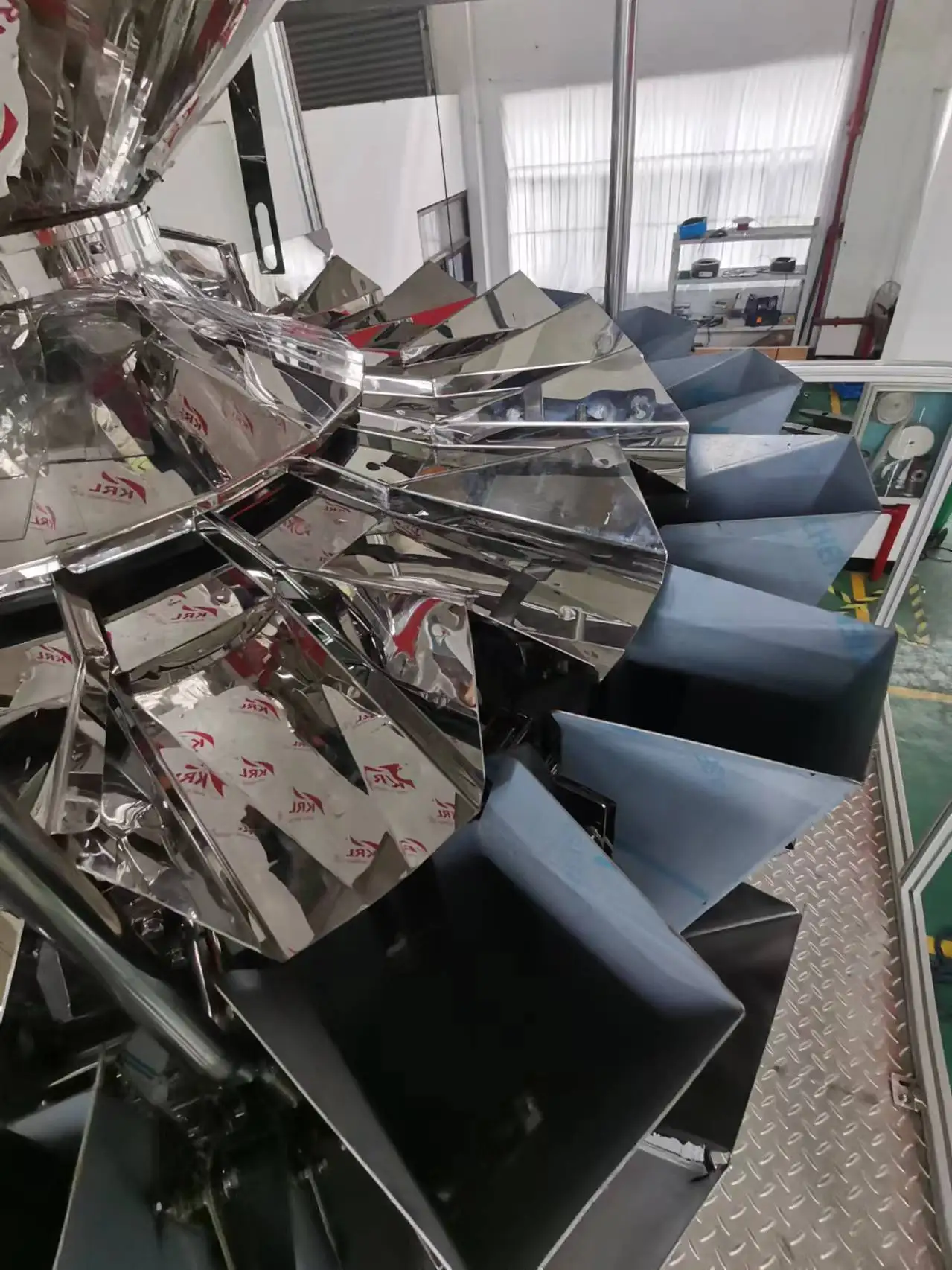

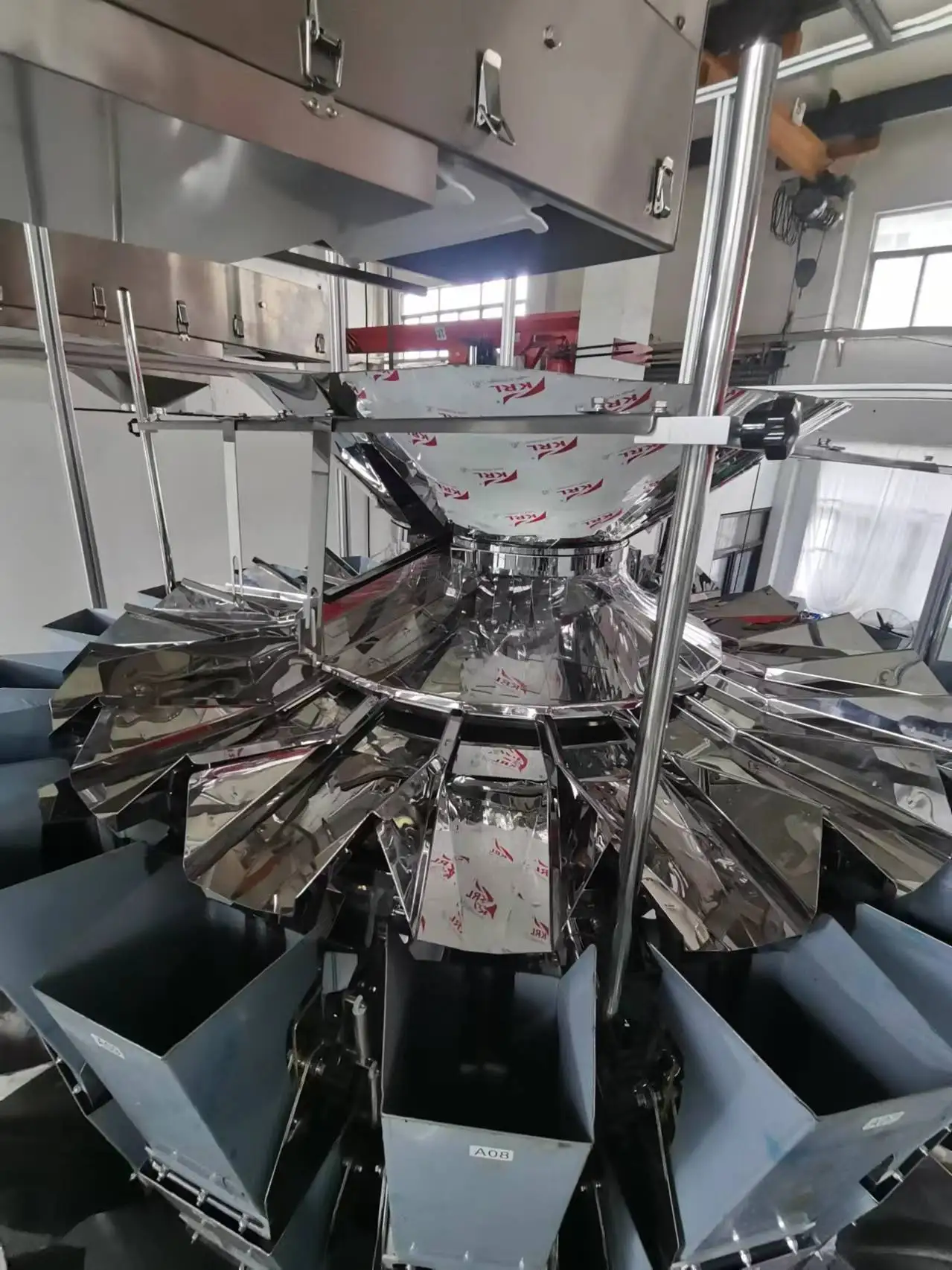

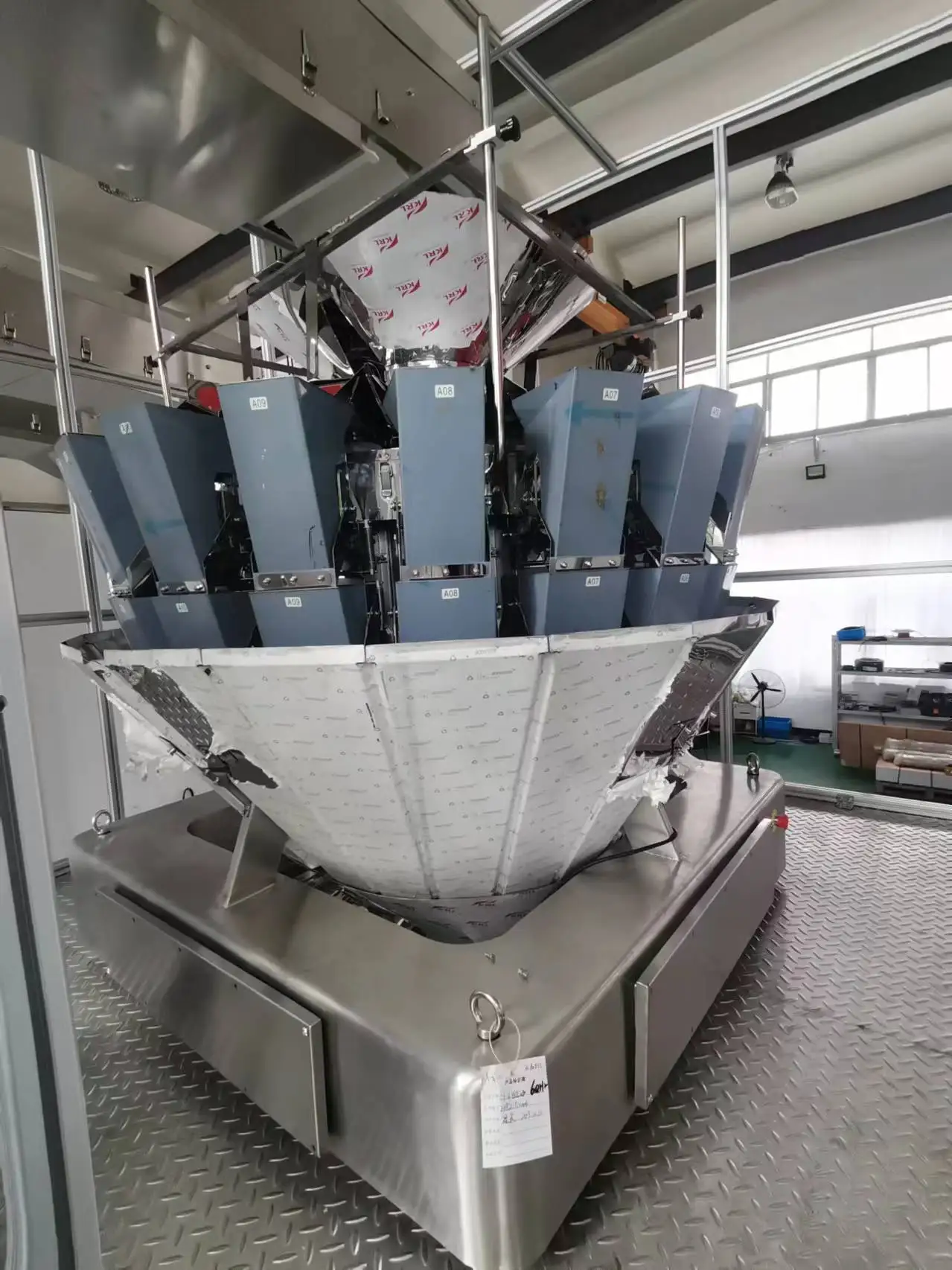

    Main Parts of Multihead Weigher
