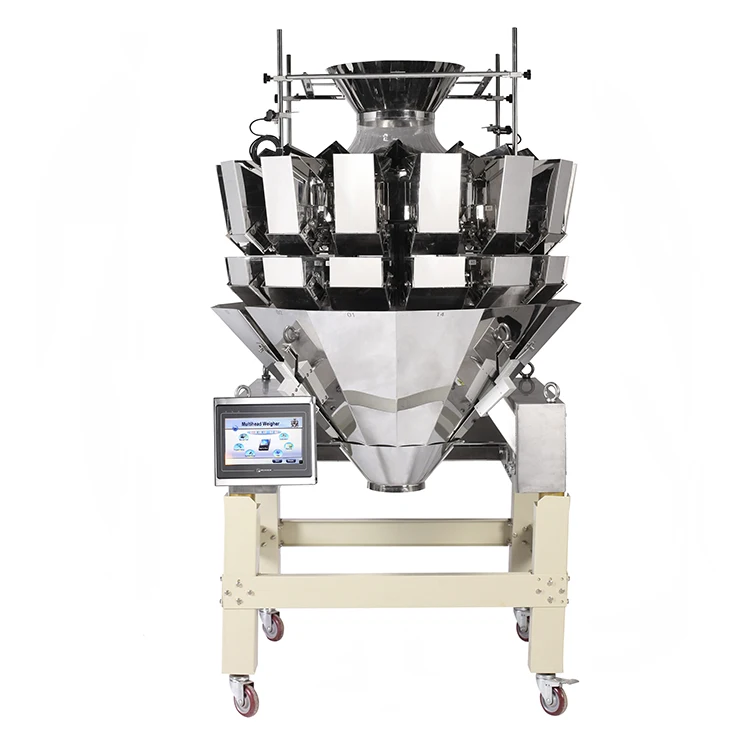

Automatic 10 Heads Multihead Weigher For Frozen Fruit
|
Model
|
ZH-A10
|
ZH-A14
|
ZH-A20
|
|
Weighing Range
|
10-2000g
|
||
|
Max Weigh Speed
|
65bags/min
|
120bags/min
|
130bags/min
|
|
Accuracy
|
±0.1-1.5g
|
||
|
Hopper Volume
|
0.5L/1.6L/2.5L/5L
|
||
|
Driver Method
|
Stepper motor
|
||
|
Option
|
Timing hopper/Dimple hopper/Overweight Identifier/Rotar top cone
|
||
|
Interface
|
7′HMI or 10″HMIW
|
||
|
Power Parameter
|
220V/50/60HZ 1000W
|
220V/50/60HZ 1500W
|
220V/50/60HZ 2000W
|
|
Package Size(mm)
|
1650(L)X1120(W)X1150(H)
|
1750(L)X1200(W)X1240(H)
|
1650(L)X1650(W)X1500(H)
1460(L)X650(W)X1250(H) |
|
Gross Weight(Kg)
|
400
|
490
|
880
|
Application Materials: It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
Technical Feature
1.The amplitude of vibrator can be auto-modified for more efficient weighing.
2. High precise digital weighing sensor and AD module have been developed.
3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5. Multi-language operation system can be selected basing on customer’s requests.
Photoelectric sensor.
AUTONICS (Korea brand)
It works with conveyor.When sensor detects products,The conveyor will stop to feed products to multihead weigher,
When sensor doesn’t detect,The conveyor will feed products to multihead weigher.
304/316 Stainless steel
The standard of multihead weighers are full 304 stainless steel.
For corrosion products,Scale will use 316 ss.
Hoppers and surface .
We have 0.5L,1.6L,2.5L,5L hoppersfor chossing
We have flat surface,dimpled surface,teflon surface,teflon and dimpled surface for choosing
The HMI is Taiwan brand
The standard language is English and Chinese.We also can write other languages as you want.
It can install 100 kinds parameters and easy to change when you have several targte weight products to pack

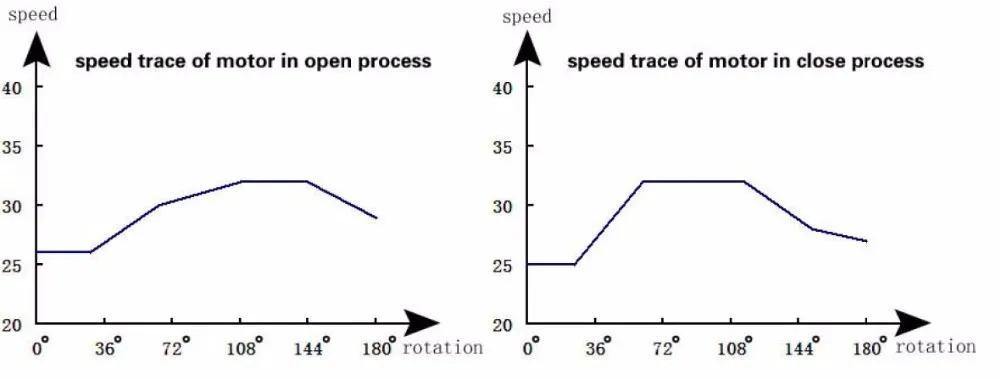

Speed Trace of Motor in Hopper Control
